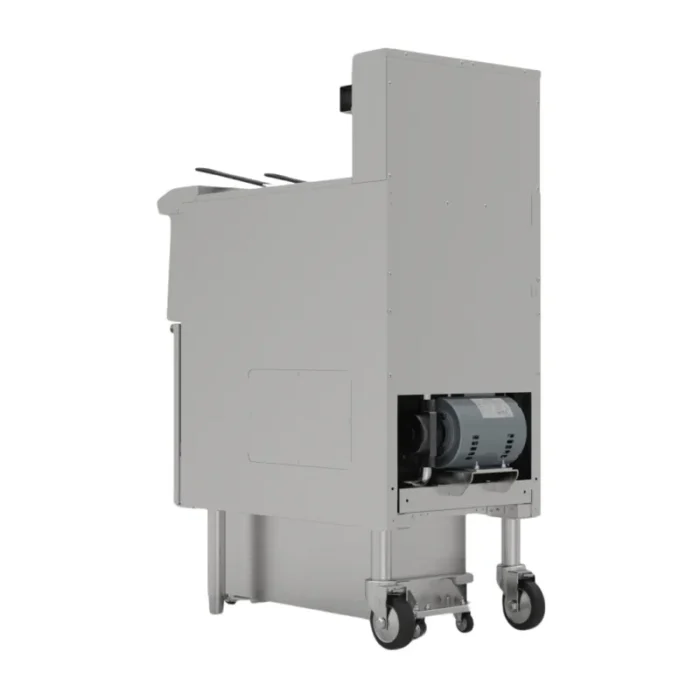

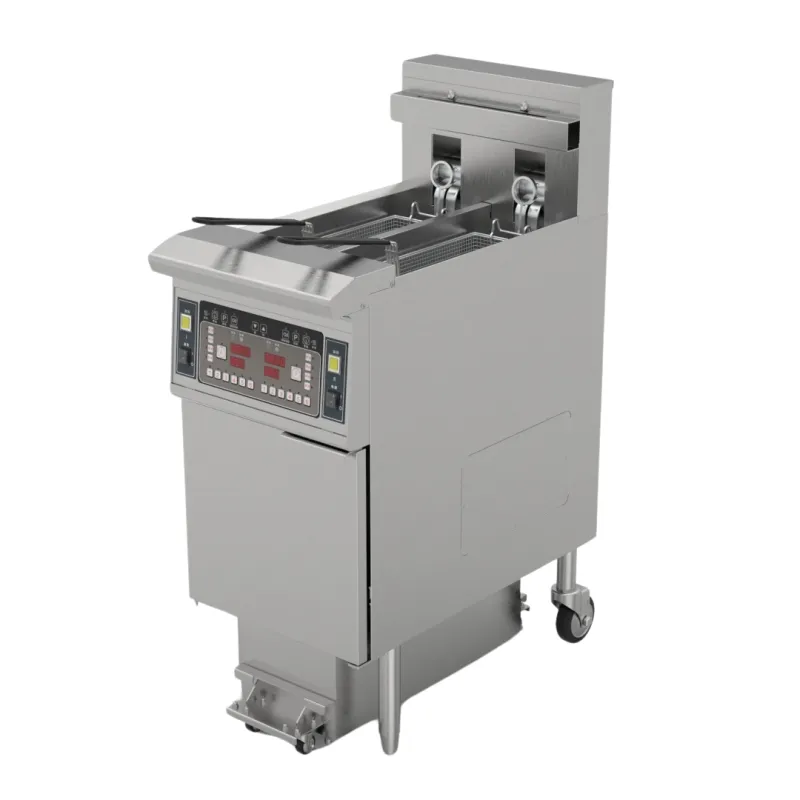

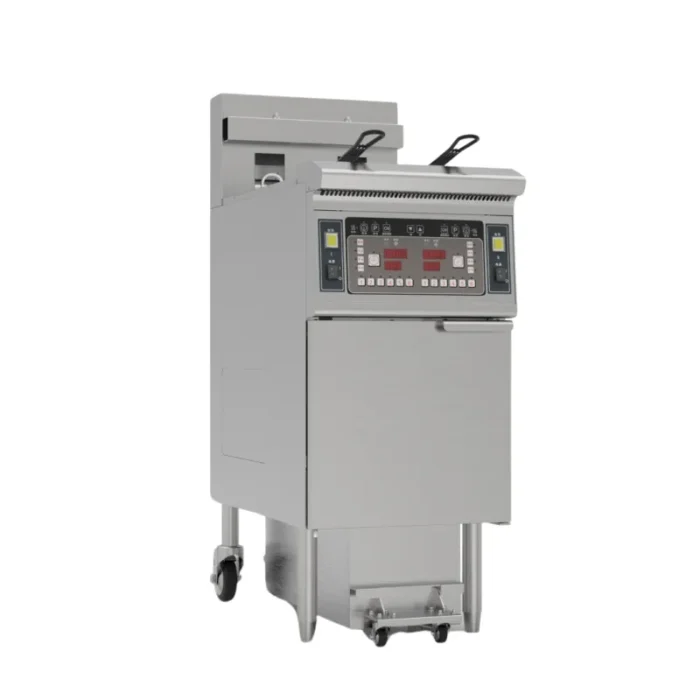

341005 – Freestanding Electric Open Fryer 2 x 13L
Model Number: DGF-D13L
Welcome to the World of Hamoki Freestanding Electric Open Fryers, where performance, durability, and efficiency converge. Our fryers are expertly engineered to meet the demands of bustling restaurants, fast-paced food courts, and large-scale catering operations. With these fryers, you can expect consistent and delicious results every time.
Engineered with cutting-edge technology, including advanced oil management functions and on-board filtration systems to extend the life of your oil. Designed for high-volume production, these cost-effective, all-purpose “workhorses” are ready to handle any menu with the press of a programmable button.
- Stainless steel structure, for easy cleaning
- Heavy-duty stainless steel frying pot
- Built-in automatic oil filtering system and drainage valve
- Intuitive mechanical control panel with digital display
- Cold zone below burners helps extend oil life
- 12 programmable settings
- High-limit safety cut out
- Complete with idle, melt modes and prompted filtration
- Temperature controls, 00:00-59:59 minute timer, and indicator lights
This product is covered with a Manufacturer’s 1 Years Parts Warranty.
Please note, that with ongoing enhancements and improvements, this product may vary slightly from the content displayed.
DIMENSIONS (WxDxH): 400 x 780 x 1160 mm
TANK INNER SIZE (WxDxH): (2 x) 180 x 532 x 288 mm
BASKET SIZE (WxDxH): 335 x 165 x 150 mm
CAPACITY: 2 x 13 L (11.6 L oil)
TEMPERATURE: 20 ~ 200 °C
POWER: 14 kW / 415 V / 50 Hz
WEIGHT: 100 KG
MAX LOADING: 1.6 KG per pot
CONNECTION: Three-phase four-wire
INSTRUCTION MANUAL
OIL PUMP DIAGRAMS
WIRING DIAGRAMS
