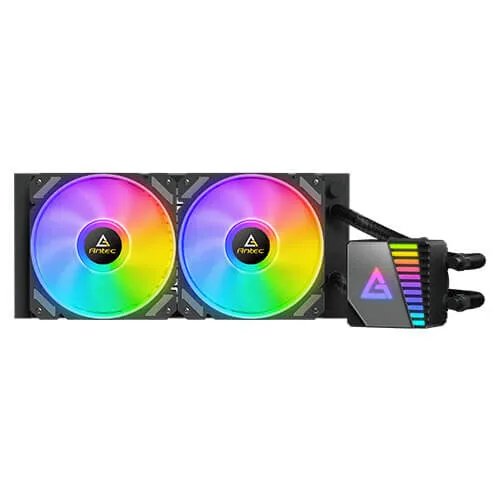

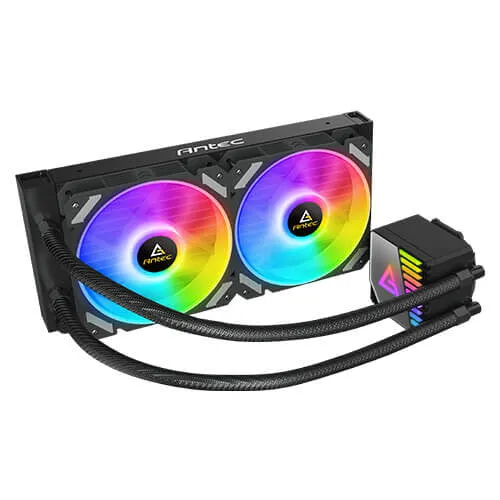

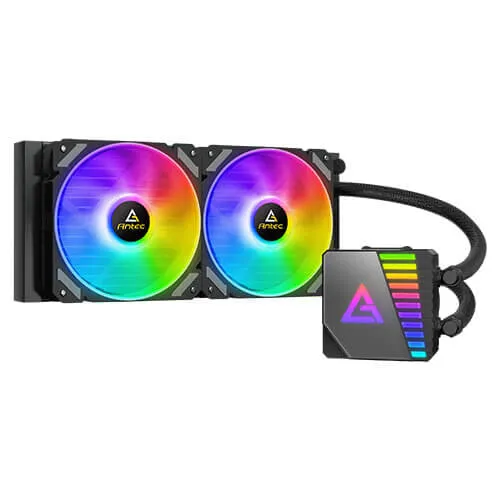

Antec SYMPHONY 240 Processor All-in-one liquid cooler 12 cm Black 1 pc(s)
- Processor All-in-one liquid cooler 12 cm
- Supported processor sockets: LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
- 72 cfm 2.1 mmH2O
- Pulse-width modulation (PWM) support
- 120 x 120 x 25 mm
- Black
- 1 pc(s)
The brand-new Symphony ARGB AIO liquid cooler delivers a cooling solution with unique ARGB lighting. The mirror ARGB lighting bar gives a subtle and beautiful color scheme. Specifically designed using EPDM+IIP high-density tubes and 14 dense cooling fins, the Symphony ARGB not only extends its lifespan but also enhances the entire cooling performance. The Symphony ARGB is ready to bring you a brand-new user experience.
Mirror ARGB Lighting
Pump Head
Designed with the high liquid flow and the low-noise pump makes it easy to have better cooling and less noise.
EPDM+IIP High-Density Tubing
The EEPDM+IIP high-density tubing is very durable, making less loss of liquid.
Covered with aluminum alloy, the joints of the tubing highly decrease the chance of liquid leaking.
14 Dense Cooling Fins
The 14 dense cooling fins are specially designed for AIO coolers, delivering efficient cooling.
Sync with the Motherboard for
16.8 Million Possible Colors
Working in sync with the motherboard or the ARGB controller, the pump can display the colors you like anytime.
The ARGB PWM fan
The ARGB PWM fan delivers thermal control, shock absorption, and high airflow. Meanwhile, it provides the CPU a better cooling solution.
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 40000 h |
| Pump’s mean time to failure (MTTF) | 70000 h |
| Fan speed (max) | 1600 RPM |
| Fan speed (min) | 800 RPM |
| Quantity per pack | 1 pc(s) |
| Pump connector | 3-pin |
| Pump noise level | 30 dB |
| Fan noise level (max) | 35 dB |
| Fan noise level (min) | 20 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.1 mmH2O |
| Maximum airflow | 72 cfm |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
| Fan diameter | 12 cm |
| Type | All-in-one liquid cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 3-pin + 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Radiator material | Aluminium |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Tube diameter | 8 mm |
| Tube inner diameter | 1 cm |
| Tube length | 38 cm |
| Radiator height | 12 cm |
| Radiator depth | 2.7 cm |
| Radiator width | 27.7 cm |
| Packaging content | |
|---|---|
| CPU bracket(s) | Yes |
| CPU socket spacer(s) | Yes |
| RGB controller included | Yes |
| LED controller dimensions (W x D x H) | 66.7 x 67 x 56 mm |
| LED controller interface | 4-pin |
| Screws included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
