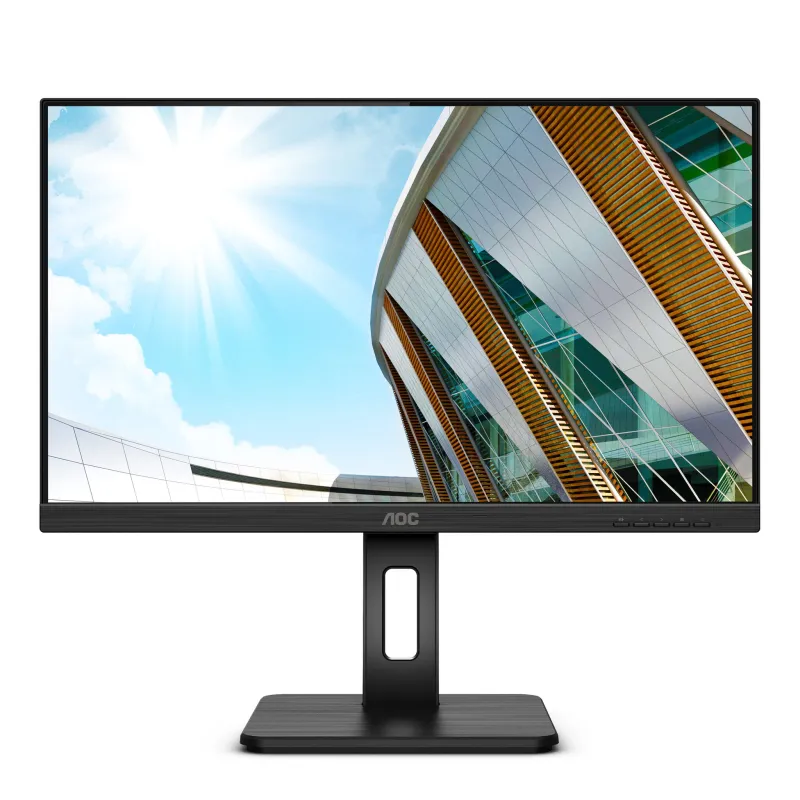

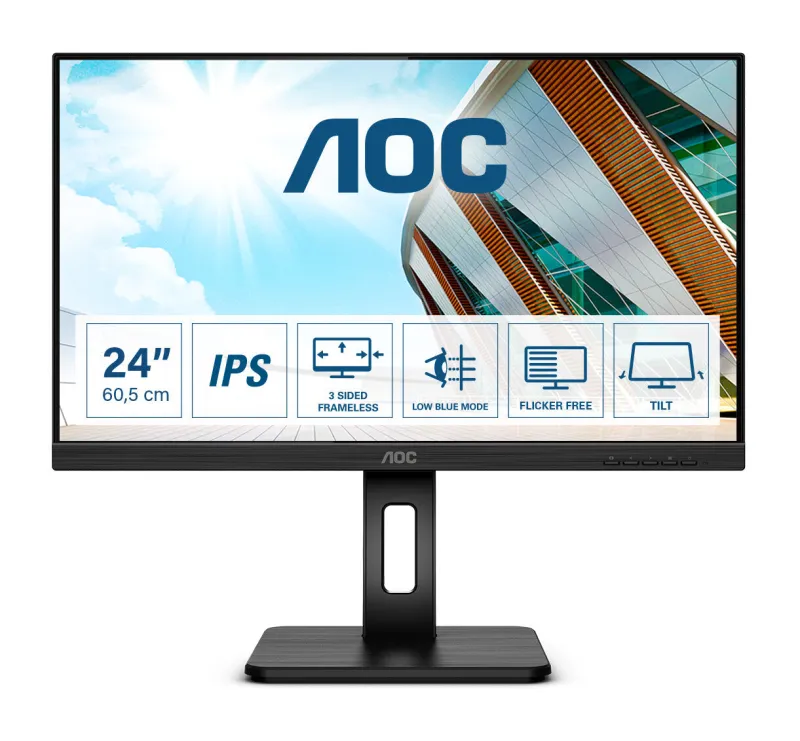

AOC P2 Q24P2Q LED display 60.5 cm (23.8″) 2560 x 1440 pixels Quad HD Black
- 60.5 cm (23.8″) LED IPS
- Quad HD 2560 x 1440 pixels 16:9
- 75 Hz 4 ms 250 cd/m² 1000:1
- AMD FreeSync Flicker-free technology
- E 18 kWh 24 W
Stunning picture quality and productivity-boosting features in a 23.8” QHD display
The Q24P2Q offers professionals a wide array of convenient features to help them get the most out of every work day. Equipped with a flat 23.8” IPS/3FL panel with QHD resolution, it features a slim, 3-sided frameless design with wide viewing angles of 178°/178°. Tiltable, swivelable, and height-adjustable, it includes a USB 3.2 hub and provides ergonomic comfort as well as eye-friendly features such as Low Blue Mode and Flicker-Free technology.
| Display |
| Display scanning frequency |
VGA/HDMI 1.4/DP 1.2: 30 – 114 KHz (H), VGA/HDMI 1.4/DP 1.2: 48 – 75 Hz (V) |
| Adobe RGB coverage |
86% |
| NTSC coverage (typical) |
80% |
| sRGB coverage (typical) |
116% |
| Colour gamut standard |
sRGB |
| Colour depth |
8 bit |
| Surface hardness |
3H |
| Display diagonal (metric) |
60.452 cm |
| Digital horizontal frequency |
30 – 114 kHz |
| Viewable size, vertical |
29.6 cm |
| Viewable size, horizontal |
52.7 cm |
| Horizontal scan range |
30 – 114 kHz |
| Pixel density |
123 ppi |
| Pixel pitch |
0.2058 x 0.2058 mm |
| Display number of colours |
16.7 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
75 Hz |
| Contrast ratio (dynamic) |
50000000:1 |
| Contrast ratio (typical) |
1000:1 |
| Supported video modes |
1440p |
| Supported graphics resolutions |
2560 x 1440 |
| Screen shape |
Flat |
| Anti-glare screen |
Yes |
| Display surface |
Matt |
| Response time |
4 ms |
| Display brightness (typical) |
250 cd/m² |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
Quad HD |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
16:9 |
| Display resolution |
2560 x 1440 pixels |
| Display diagonal |
60.5 cm (23.8″) |
| Performance |
| Low Blue Light technology |
Yes |
| Flicker-free technology |
Yes |
| Fast charging |
Yes |
| AMD FreeSync refresh rate range |
48 – 75 Hz |
| AMD FreeSync |
Yes |
| NVIDIA G-SYNC |
No |
| Multimedia |
| Built-in microphone |
No |
| Built-in camera |
No |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Feet colour |
Black |
| Detachable stand |
Yes |
| Front bezel colour |
Black |
| Frameless design |
Yes |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
| Microphone in |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone out |
Yes |
| Audio input |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| DVI port |
No |
| VGA (D-Sub) ports quantity |
1 |
| USB Type-A downstream ports quantity |
4 |
| USB hub version |
3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub |
Yes |
| Ergonomics |
| Number of OSD languages |
16 |
| On Screen Display (OSD) languages |
Simplified Chinese, Traditional Chinese, Croatian, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 – 35° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-180 – 180° |
| Pivot angle |
0 – 180° |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
405262 |
| External power adapter |
No |
| Energy efficiency scale |
A to G |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power consumption (off) |
0.3 W |
| Power consumption (standby) |
0.3 W |
| Power consumption (typical) |
24 W |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Energy efficiency class (SDR) |
E |
| Weight & dimensions |
| Height (without stand) |
326.4 mm |
| Depth (without stand) |
50.7 mm |
| Width (without stand) |
540.2 mm |
| Weight (with stand) |
5.14 kg |
| Height (with stand) |
513 mm |
| Depth (with stand) |
200.1 mm |
| Width (with stand) |
540.2 mm |
| Packaging data |
| VGA cable length |
1.8 m |
| DVI cable length |
1.8 m |
| Package type |
Box |
| Package weight |
6.86 kg |
| Package height |
525 mm |
| Package depth |
160 mm |
| Package width |
610 mm |
| Packaging content |
| Power cable length |
1.8 m |
| HDMI cable length |
1.8 m |
| DisplayPort cable length |
1.8 m |
| Audio cable length |
1.8 m |
| Cables included |
Audio (3.5mm), DVI, DisplayPort, HDMI, VGA |
| Stand included |
Yes |
| Sustainability |
| Doesn’t contain |
PVC/BFR |
| Sustainability certificates |
EPEAT Silver |
| General |
| Product family |
P2 |
| Other features |
| Certification |
True |
| Light effects |
No |
| Recyclable packaging material |
100% |
| Heavy metals free |
Hg (mercury) |
| Exterior finish type |
Textured |
| Compatibility |
VESA-P2 |
| Recycling data |
| Post-consumer recycled plastic |
85% |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
