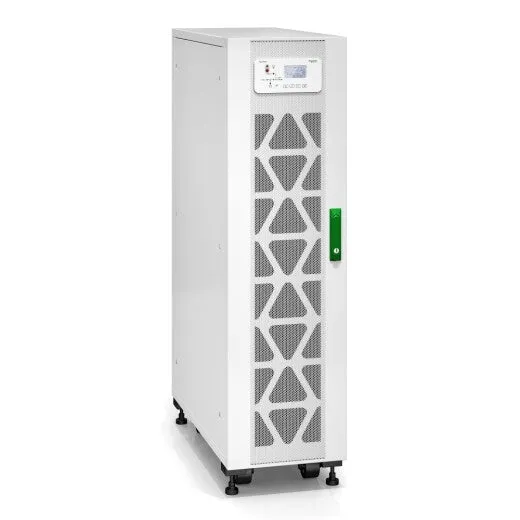

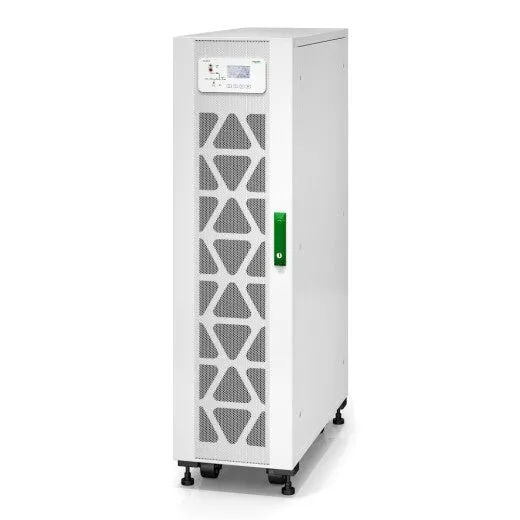

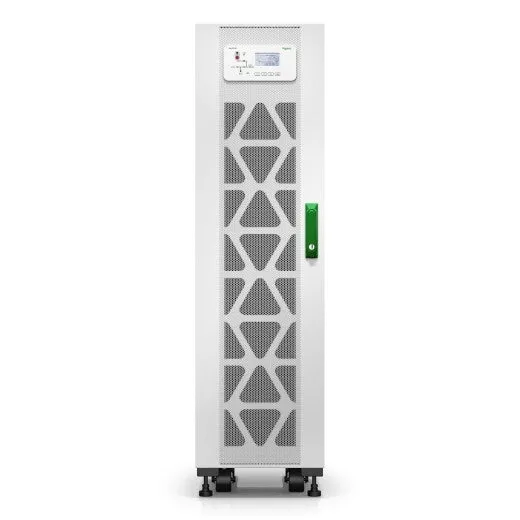

APC E3SUPS15K3IB2 uninterruptible power supply (UPS) Double-conversion (Online) 15 kVA 15000 W
- Front-access servicing: simplifies installation and UPS maintenance while minimizing space requirements
- ECO Mode: operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Intuitive user interface: the intuitive graphical user interface allows for easy system configuration
- Easy to install fast: quickly roll the compact and lightweight UPS into position
- Easy Loop Test: verifies UPS performance before you connect your load, without the need for a load bank
- Straightforward installation: including the input, output, and bypass breakers, as well as the Emergency Power Off (EPO) switch, simplifies installation planning and speeds up deployment
- Optional SNMP Card: when you purchase the SNMP card, you can monitor and manage UPS status remotely through the UPS Web interface or through EcoStruxure IT’s cloud-based and on-premise software suites. Click here for more information about EcoStruxure IT
- Wide Input Voltage Window: saves your battery power for when you really need it – during power cuts!
- Parallel capability: multiple units can be placed in parallel to meet power capacity and redundancy requirements
- Replaceable dust filters: protect the UPS in harsh environments
Easy UPS 3S 15 kVA 400 V 3:1 UPS with internal batteries – 25 minutes runtime
High-efficiency 3-phase UPS with internal batteries providing a runtime of 25 minutes. The UPS features advanced product features, competitive specifications, and robust electrical design, making business continuity easy in the data center or electrical room. This is an exceptionally easy to install, operate, maintain, and service 15 kVA UPS, ideal for small and medium businesses. Includes dust filter and conformance-coated boards for harsh environments. For battery runtime details, see the runtime charts published under the Documents tab.
| Features | |
|---|---|
| Power protection features | Overload |
| Noise level | 60 dB |
| Output voltage Total Harmonic Distortion (THD) | 5.5% |
| ECO mode | Yes |
| Crest factor | 3:1 |
| Input power factor | 0.99 |
| Output voltage regulation | 3% |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 45/65 Hz |
| Input operation voltage (max) | 477 V |
| Input operation voltage (min) | 304 V |
| Output power | 15000 W |
| Output power capacity | 15 kVA |
| UPS topology | Double-conversion (Online) |
| Battery | |
|---|---|
| Number of batteries supported | 2 |
| Battery voltage | 240 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Product colour | White |
| Form factor | Large tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 15000 m |
| Operating altitude | 0 – 984 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -15 – 40 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Certification | CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE |
| Weight & dimensions | |
|---|---|
| Weight | 211 kg |
| Height | 1400 mm |
| Depth | 907 mm |
| Width | 380 mm |
| Packaging data | |
|---|---|
| Package weight | 229 kg |
| Package height | 1640 mm |
| Package depth | 1014 mm |
| Package width | 563 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
