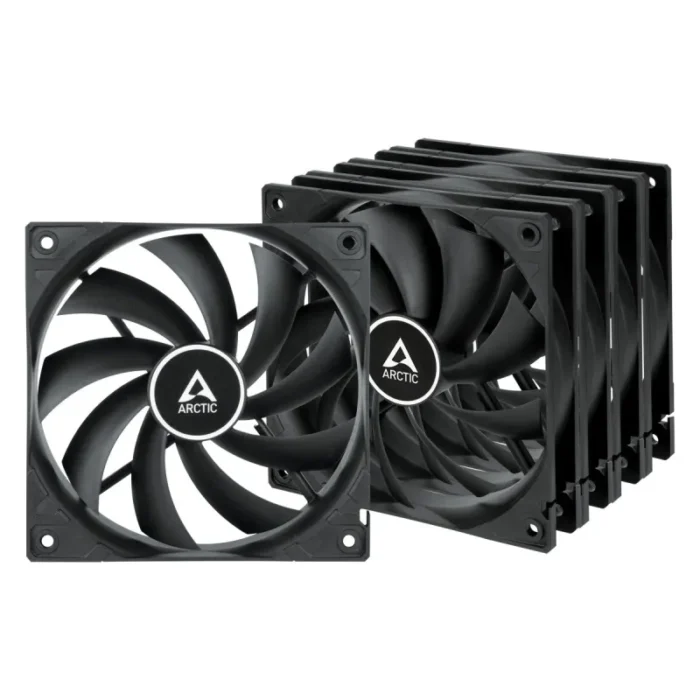

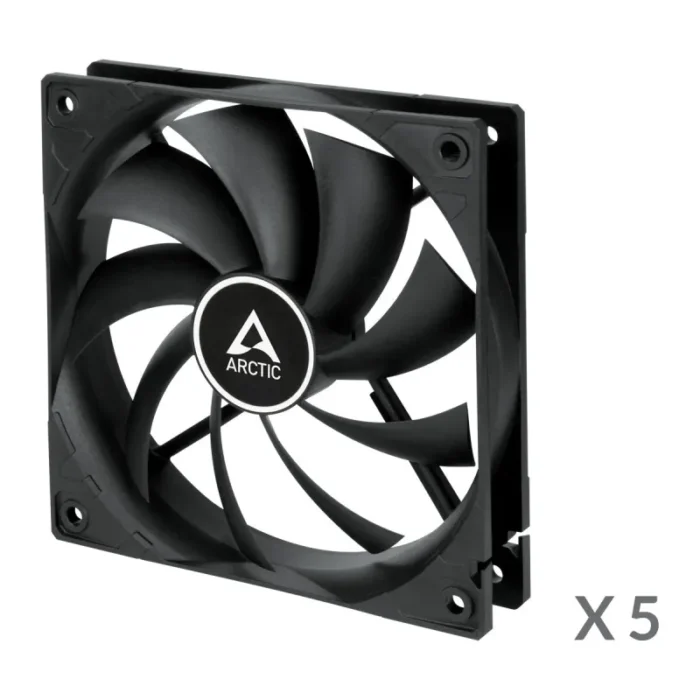

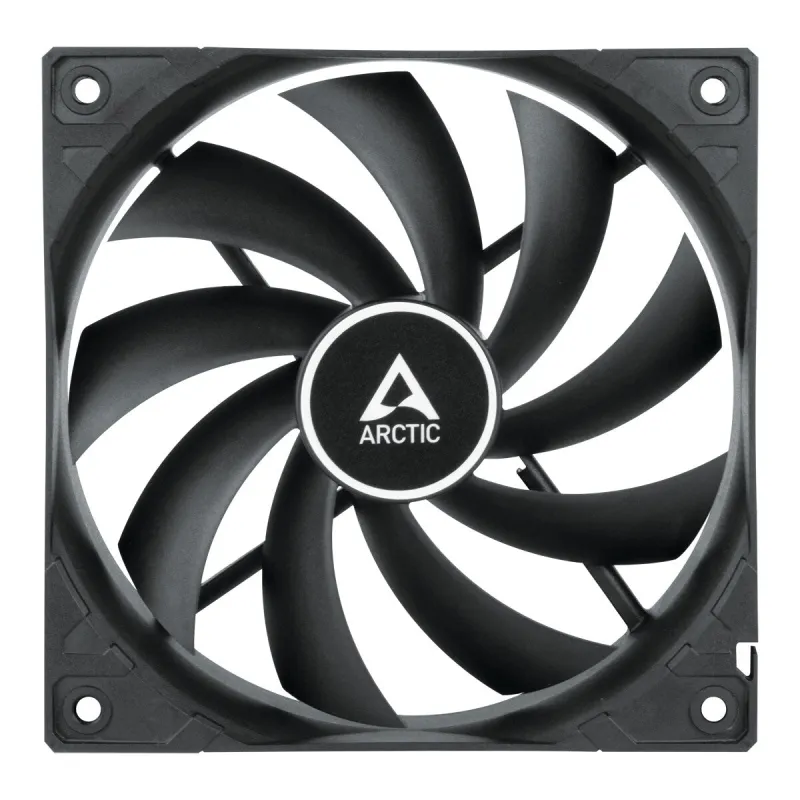

ARCTIC F12 – 120 mm Standard Case Fan
- Extremely quiet with low noise impeller
- High airflow and static pressure
- Fluid dynamic bearing ensures extended lifespan
The F12 case fans are exceptionally quiet and cost effective solutions with efficient cooling performance. The patented low noise impeller maximizes the volume of airflow to offer optimal performance at relatively low fan speed.
| Performance |
| Operating temperature (T-T) |
0 – 40 °C |
| Quantity per pack |
5 pc(s) |
| Bearing type |
Fluid Dynamic Bearing (FDB) |
| Minimum air pressure |
1 mmH2O |
| Airflow |
90.1 m³/h |
| Maximum airflow |
53 cfm |
| Noise level |
0.3 sone |
| Rotational speed (max) |
1350 RPM |
| Rotational speed (min) |
0 RPM |
| Compatible processor series |
Not supported |
| Supported processor sockets |
Not supported |
| Fan diameter |
12 cm |
| Type |
Fan |
| Suitable location |
Computer case |
| Design |
| Fan connector |
3-pin |
| Number of fans |
5 fan(s) |
| Product colour |
Black |
| Power |
| Rated current |
0.12 A |
| Starting voltage |
2.7 V |
| Voltage |
12 V |
| Weight & dimensions |
| Package weight |
642 g |
| Package height |
127 mm |
| Package depth |
137 mm |
| Package width |
123 mm |
| Cable length |
0.4 m |
| Weight |
107 g |
| Height |
25 mm |
| Depth |
120 mm |
| Width |
120 mm |
| Packaging content |
| Package type |
Box |
| Other features |
| Country of origin |
Hong Kong |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
