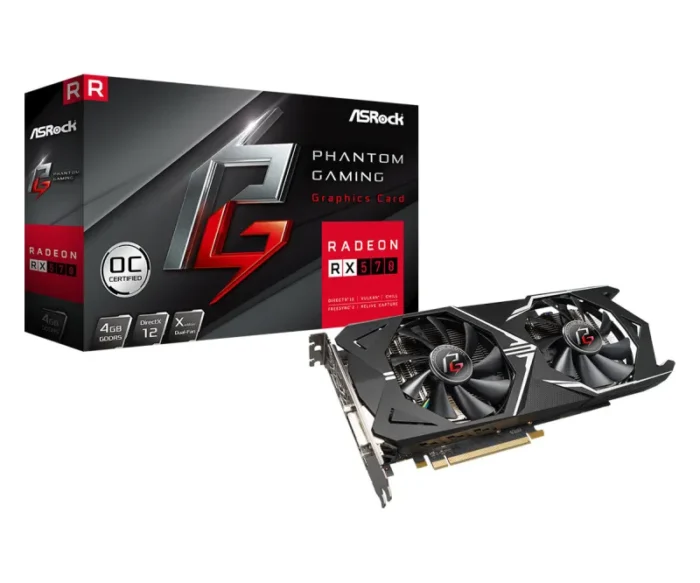

Asrock 90-GA0800-00UANF graphics card AMD Radeon RX 570 4 GB GDDR5

• OC Mode: 1331 MHz / 7028 MHz
• Default Mode: 1280 MHz / 7000 MHz
• Silent Mode: 1228 MHz / 6972 MHz
• 4 GB GDDR5
• Features
• Double Ball Bearings Fan Design
• High Performance Composite Heatpipes
• Support 8K Resolution
• Graphic Outputs: 3 DisplayPort, HDMI, DVI
• Phantom Gaming Tweak Utility
• Temperature and Fan Speed Monitoring
• Core / Memory Clock Tweak
• Core / Memory Voltage Tweak
• This model may not be sold worldwide. Please co

OC Certified Edition
Overclockers Must Have!
Phantom Gaming OC Certified mark represents excellent overclocking capabilities and high level performance. It’s the beast with undefeatable hardware and practical software for limit pushing overclockers to break world records.

Armor Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock’s VR Ready products are definitely the one you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

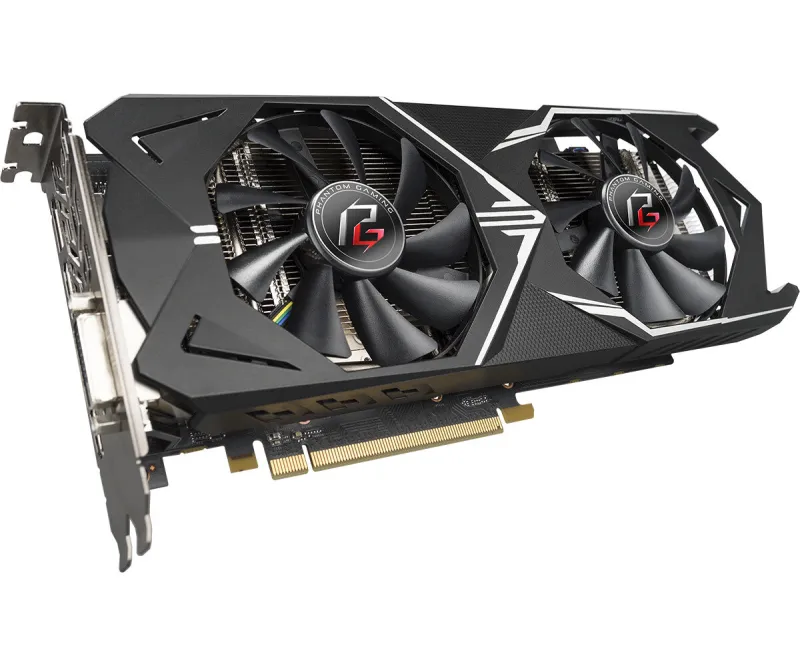

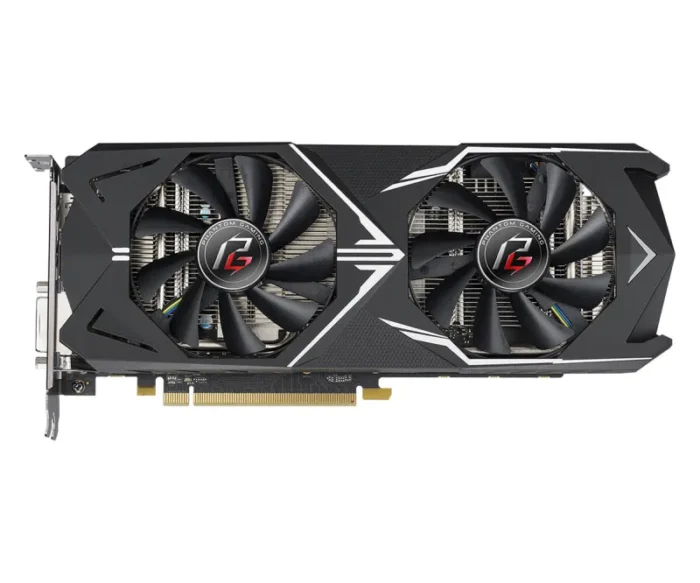

DUAL FAN DESIGN
Two fans that provide strong cooling performance and make your gaming rig stay cool. It’s optimized for delivering excellent gaming experience with stylish and streamlined design.

DOUBLE BALL BEARINGS FAN DESIGN
Reduce friction, allow fan to run smoother and with a lifespan up to 50,000-100,000 hours. Compared to traditional design with oil leakage problem, it improves lifespan by 30 ~ 40% and with an enhanced cooling efficiency significantly.

ULTRA COOL XXL ALUMINUM ALLOY HEATSINK & HEATPIPE DESIGN
Under the stylish and streamlined dual fan design is the anodized and huge aluminum heatsink, heatpipe along with more than enough fins that take heat from the GPU, effectively improve heat dissipation and promote overall performance significantly.

HIGH PERFORMANCE COMPOSITE HEATPIPES
Combined with grooved and copper powder sintered interfaces, the composite heatpipe design efficiently improve thermal transfer of heat between two solid interfaces and increase cooling capacity up to 30%.

HIGH-DENSITY METAL WELDING
Effectively isolate all convergence of the gap between pipe and stacked fins, hence improve heat transfer effectively.

COPPER BASE HEATSINK DESIGN
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

TOP NANO THERMAL PASTE
Improve GPU and VGA cooler performance significantly. Keep thermal performance and operation safe.

PHANTOM GAMING TWEAK
A fast and easy tool that provides users with an abundant collection of subtle settings for professional tweaking such as FAN speed, core clocks, memory frequency and so on. Users may also choose the most optimized mode based on their needs, like OC mode, Silent mode or default mode. Phantom Gaming Tweak delivers more than enough voltage configuration options for anyone who wish to pursuit extremes.

Radeon™ WattMan®
Save, load and share custom Radeon™ WattMan profiles to quickly and easily optimize performance or create a personalized gaming experience

Radeon™ Chill
Radeon chill designed to save power, lower temperature, Radeon Chill enables high performance graphics when you battle and saves power when you explore.

Radeon™ ReLive
Radeon™ ReLive (ReLive) allows users to capture, stream and share gameplay videos and screenshots.
Capturing gameplay using Radeon ReLive is easy to configure and has a minimal impact on performance, which is measured in frames per second (FPS).

Enhanced Sync
Enhanced sync enables low latency gameplay at virtually any framerate and a tear-free experience when your favorite game’s framerate exceeds your display’s refresh rate.1
Unlock your VSync. Enhanced sync technology delivers a tear-free experience when framerate exceeds your display’s refresh rate at an ultra-low latency to take your E-Sports gaming to the next level.

Radeon™ Overlay
The all-new Radeon Overlay lets gamers take performance to the next level with the ability to monitor, record and fine tune their gameplay without ever leaving the game.
Much like an activity tracker for your PC, Radeon™ Overlay provides one-click access to Radeon™ ReLive, Performance Monitoring, Radeon™ Chill, Frame Rate Target Control (FRTC), Radeon™ FreeSync and Color Settings.

AMD Link
AMD Link is a powerful mobile app built to complement Radeon™ Software Adrenalin Edition. It allows you to conveniently access gameplay performance metrics and PC system info on your smartphone and/or tablet. You can easily connect to your PC either by a QR code in Radeon Settings or manually entering the required info. It is designed with today’s socially-connected, mobile-first world in mind – and with the gamer at its center.
