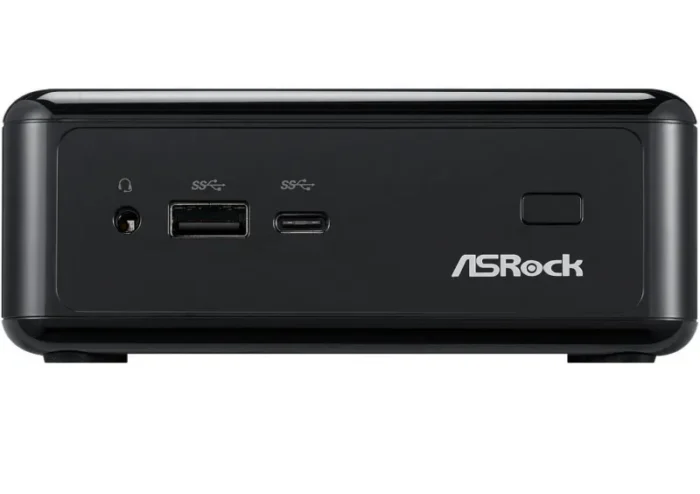

Asrock Beebox J3160 0.6L sized PC Black 1.6 GHz
- 0.6L sized PC Black
- Built-in processor Intel J3160 1.6 GHz
- 2 SO-DIMM Maximum internal memory: 16 GB DDR3L-SDRAM
- HDD & SSD 2.5″
- Ethernet LAN Wi-Fi
A home theater system for your living room that’s also quiet enough for your bedroom, and powerful enough for a daily computing PC
A miniature PC for office tasks, stock monitoring, educational purposes or even digital signage. Makes your business bloom in no time.
Triple Monitor
Lights up three monitors simultaneously via two HDMI ports and one DisplayPort.
*This DisplayPort only supports DP to D-Sub dongles. DP to HDMI dongles and DP to DVI dongles are not supported.
*To power up three monitors, please connect your monitors to 2*HDMI and 1*DP ports or 2*HDMI and 1*D-Sub ports via a DP to D-Sub dongle.
4K Support
The only system in the segment that supports dual channel memory for supporting 4K video playback.
*Dual channel memory is required for 4K video playback. Please install a pair of identical memory DIMMs.
Supports Up to 48CH H.265 IP Cameras
Beebox is able to work as an industrial grade 48 channel NVR (Networking Video Recorder) system. It is also capable of HEVC (H.265) recording for up to 48 IP cameras in D1 (704×576) resolution.
The World’s First NUC with a USB Type-C Port
USB Type-C doubles the charge speed!
The Fastest Wireless Internet – 802.11ac WiFi
Beebox comes with an exclusive 802.11ac WiFi (2.4G/5G WiFi) module and also works as a wireless access point.

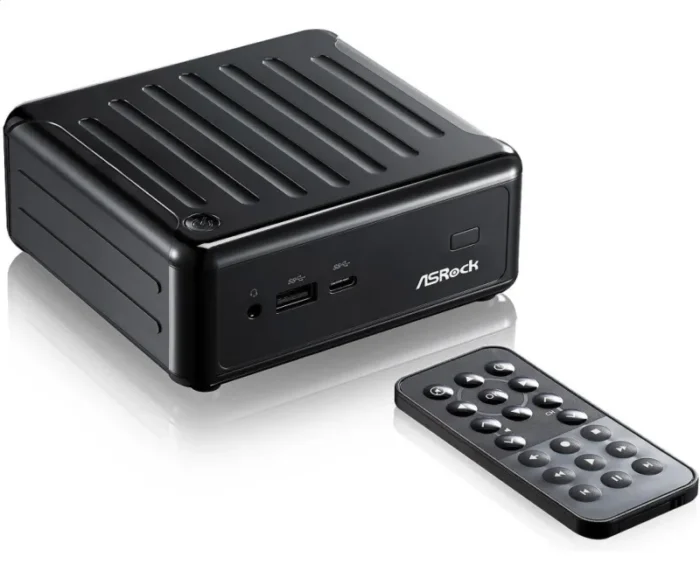

Remote Controller
A free bundled remote controller for Beebox.
Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.
HDMI™ (High-Definition Multimedia Interface)
This product supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
| Processor | |
|---|---|
| CPU configuration (max) | 1 |
| Processor codename | Braswell |
| Thermal Design Power (TDP) | 6 W |
| L2 cache | 2 MB |
| Processor lithography | 14 nm |
| Processor frequency | 1.6 GHz |
| Processor boost frequency | 2.24 GHz |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor model | J3160 |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Maximum internal memory | 16 GB |
| Supported memory types | DDR3L-SDRAM |
| Supported memory clock speeds | 1600 MHz |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Storage drive interface | Serial ATA, mSATA |
| Storage drive sizes supported | 2.5″ |
| Supported storage drive types | HDD & SSD |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Expansion slots | |
|---|---|
| PCI Express configurations | 1×2+2×1, 1×4, 2×2, 4×1 |
| PCI Express slots version | 2.0 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| VESA mounting | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| LED indicators | Status |
| On/off switch | Yes |
| Product colour | Black |
| Chassis type | 0.6L sized PC |
| Performance | |
|---|---|
| Audio system | Realtek ALC283 |
| Processor special features | |
|---|---|
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Rapid Storage Technology | No |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Thermal Monitoring Technologies | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel Smart Connect Technology | No |
| Intel® Secure Key | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® OS Guard | No |
| Intel Clear Video Technology | Yes |
| Intel® Smart Response Technology | No |
| General | |
|---|---|
| Product family | Beebox |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Power | |
|---|---|
| AC adapter output voltage | 12 V |
| Power supply | 36 W |
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Height | 46 mm |
| Depth | 118.5 mm |
| Width | 110 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Quick start guide | Yes |
| AC adapter included | Yes |
