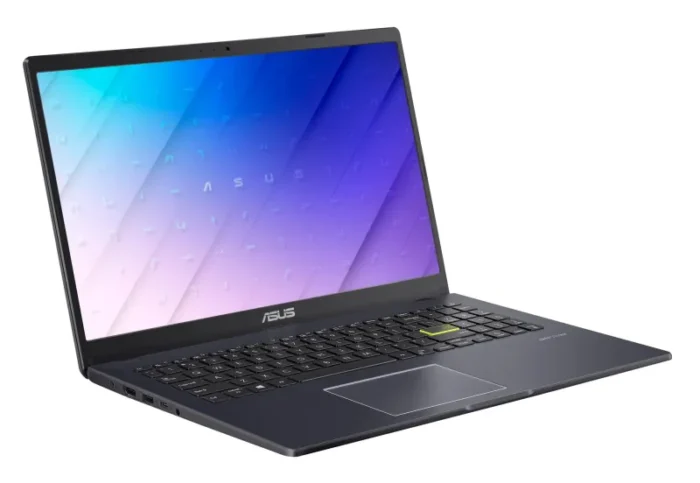

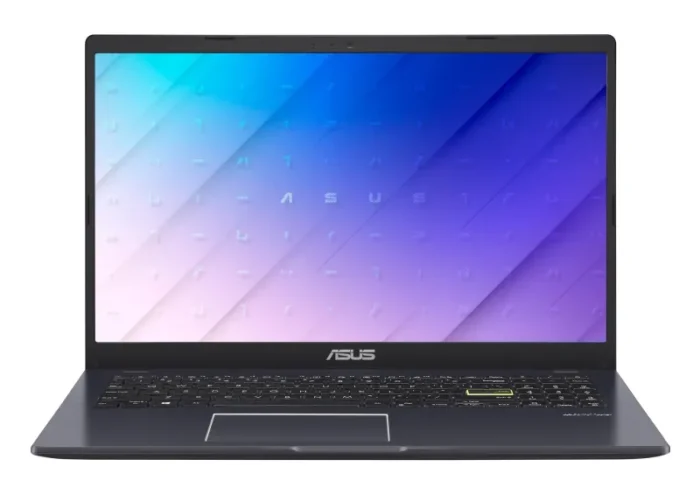

ASUS E510MA-EJ653WS Intel® Celeron® N4020 Laptop 39.6 cm (15.6″) Full HD 4 GB DDR4-SDRAM 128 GB eMMC Wi-Fi 5 (802.11ac) Windows 11 Home in S mode Black
- Home Laptop Clamshell Black
- Intel® Celeron® N4020 1.1 GHz
- 39.6 cm (15.6″) Full HD 1920 x 1080 pixels TN 16:9
- 4 GB DDR4-SDRAM
- 128 GB eMMC
- Intel® UHD Graphics 600
- Wi-Fi 5 (802.11ac) Bluetooth 4.1
- Lithium-Ion (Li-Ion) 42 Wh 33 W
- Windows 11 Home in S mode
| Design |
| Market positioning |
Home |
| Form factor |
Clamshell |
| Colour name |
Star Black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| Panel type |
TN |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
39.6 cm (15.6″) |
| Processor |
| Tjunction |
105 °C |
| Scenario Design Power (SDP) |
4.8 W |
| Thermal Design Power (TDP) |
6 W |
| Processor socket |
BGA 1090 |
| Processor cache type |
Smart Cache |
| Processor cache |
4 MB |
| Processor frequency |
1.1 GHz |
| Processor boost frequency |
2.8 GHz |
| Processor threads |
2 |
| Processor cores |
2 |
| Processor model |
N4020 |
| Processor family |
Intel® Celeron® |
| Processor manufacturer |
Intel |
| Memory |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
4 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| Storage media |
eMMC |
| Total storage capacity |
128 GB |
| Graphics |
| On-board graphics card OpenGL version |
4.4 |
| On-board graphics card 4K support |
Yes |
| On-board graphics card DirectX version |
12.0 |
| Number of execution units |
12 |
| On-board graphics card model |
Intel® UHD Graphics 600 |
| On-board graphics card family |
Intel® UHD Graphics |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of built-in speakers |
2 |
| Audio system |
SonicMaster |
| Network |
| Bluetooth version |
4.1 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
1×1 |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Mobile network connection |
No |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| HDMI version |
1.4 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
1 |

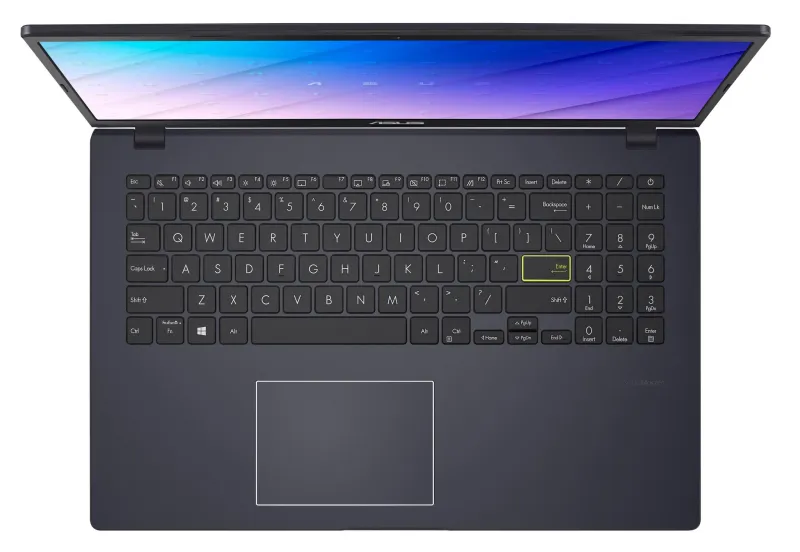

| Keyboard |
| Full-size keyboard |
Yes |
| Numeric keypad |
Yes |
| Physical layout |
ANSI |
| Keyboard layout |
QWERTY |
| Pointing device |
Touchpad |
| Software |
| Operating system installed |
Windows 11 Home in S mode |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel® Memory Protection Extensions (Intel® MPX) |
Yes |
| Intel® Anti-Theft Technology (Intel® AT) |
No |
| Intel® Smart Response Technology |
No |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Intel® Turbo Boost Technology |
No |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Secure Key |
Yes |
| Intel® OS Guard |
Yes |
| Thermal Monitoring Technologies |
Yes |
| UART |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Supported instruction sets |
SSE4.2 |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Idle States |
Yes |
| Battery |
| Battery capacity |
42 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| DC-in jack |
Yes |
| AC adapter output voltage |
19 V |
| AC adapter output current |
1.75 A |
| AC adapter power |
33 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Certificates |
| Compliance certificates |
WEEE |
| Weight & dimensions |
| Height |
18.1 mm |
| Depth |
236.4 mm |
| Width |
360.2 mm |
| Weight |
1.57 kg |
| Packaging data |
| Package height |
290 mm |
| Package depth |
460 mm |
| Package width |
65 mm |
| Packaging content |
| Wrist rest |
No |
| Headset included |
No |
| Mouse included |
No |
| Other features |
| Warranty period |
2 year(s) |
