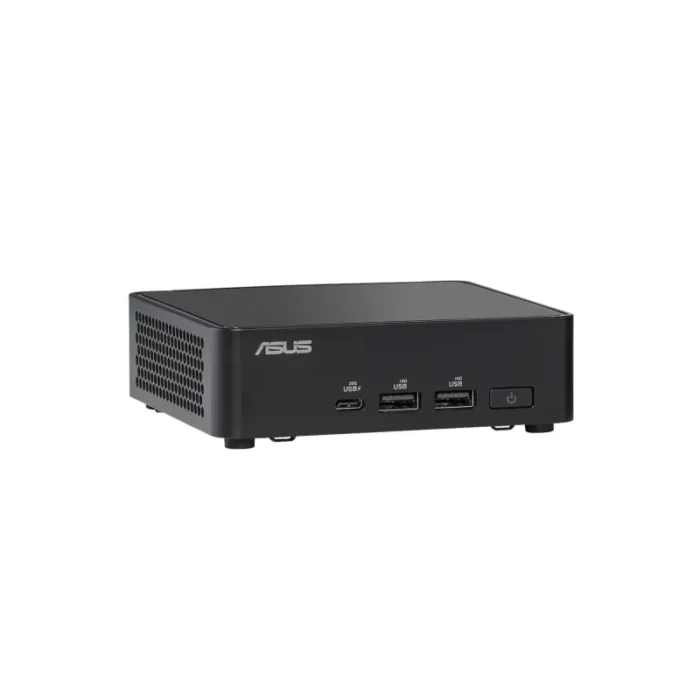

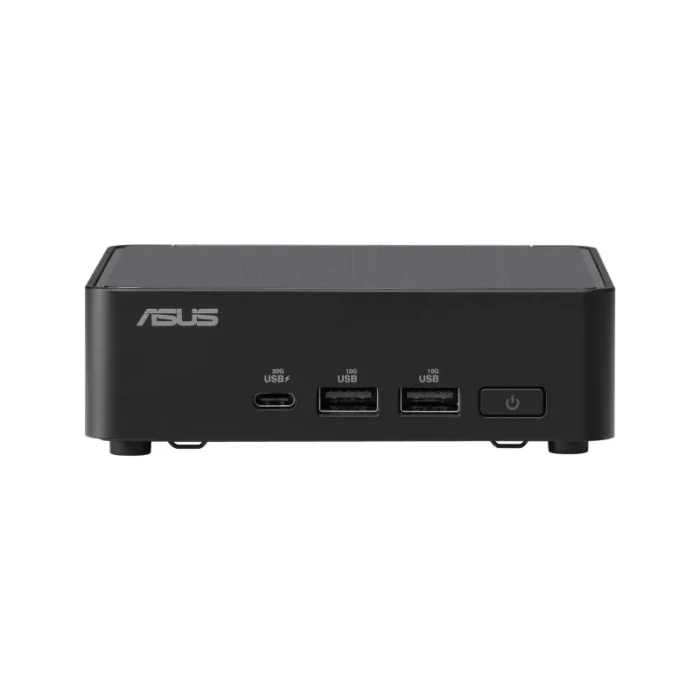

ASUS NUC 14 Pro RNUC14RVKV5068C3I Intel Core Ultra 5 135H 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro UCFF Mini PC Black
- Performance: Delivers best-in-class performance among comparable mini-PC offerings
- Manageability: Most comprehensive mini-PC with Intel vPro® Enterprise for exceptional security, manageability, and stability
- AI Ready: Harnesses the prowess of Intel® Core™ Ultra processors’ three AI engines for high throughput, low power, and fast response
- Wi-Fi Sensing: Takes advantage of Wi-Fi sensing to deliver instant availability while reducing power consumption
- Wireless Connectivity: Delivers seamless connectivity for certified Bluetooth® dongle-free experiences
- Customizable: Designed for toolless chassis access making upgrades easier, safer, and faster
Compact Power, Intelligent Performance
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.
Toolless Design
ASUS NUC 14 Pro offers toolless access to make it easy to open up the chassis to assess the M.2 PCIe SSD module for easy upgrades.
Certified Bluetooth
dongle-free experience
A certified Bluetooth dongle offers hassle-free operation, cost savings, and resolves ITDM issues. It eliminates concerns such as lost dongles, PC Bluetooth compatibility, and USB port limitations on NUC.
The dongle-free approach simplifies pairing, enhances audio quality, and improves control in video collaboration calls.
| Processor | |
|---|---|
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Number of processors installed | 1 |
| Processor cache type | Smart Cache |
| Processor cache | 18 MB |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Efficient-core base frequency | 1.2 GHz |
| Performance-core base frequency | 1.7 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Low Power Efficient-cores | 2 |
| Efficient cores | 8 |
| Performance cores | 4 |
| Processor cores | 14 |
| Processor model | 135H |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor family | Intel Core Ultra 5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Memory clock speed | 5600 MHz |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Maximum internal memory | 96 GB |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel Arc Graphics |
| On-board graphics card family | Intel Arc Graphics |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,1000,2500,100 Mbit/s |
| Ethernet LAN | Yes |

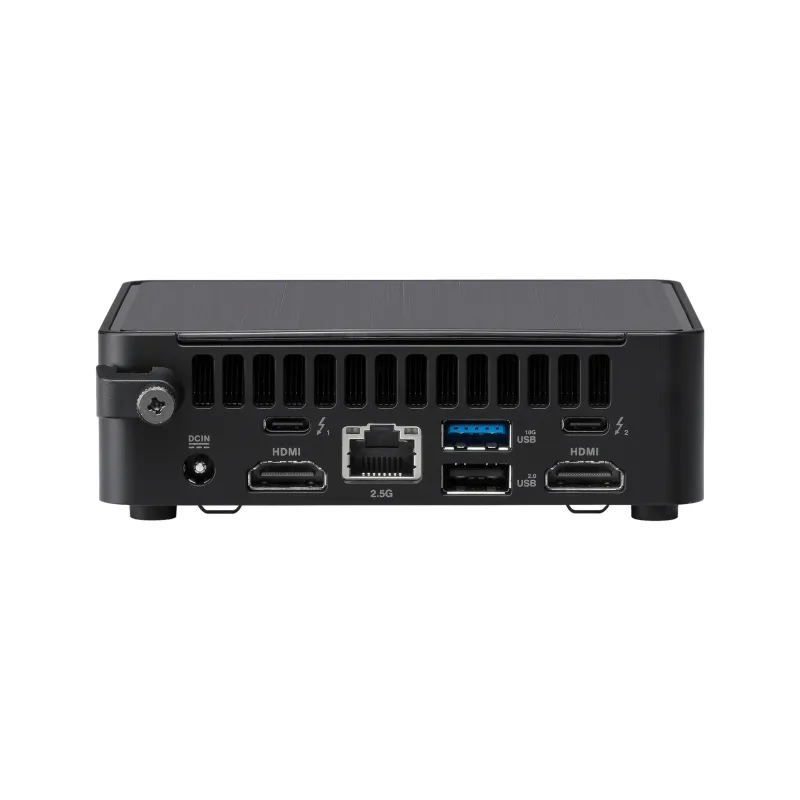

| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| Thunderbolt 4 ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Design | |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Chassis type | UCFF |
| Performance | |
|---|---|
| Product type | Mini PC |
| Software | |
|---|---|
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Power | |
|---|---|
| Power supply | 120 W |
| Weight & dimensions | |
|---|---|
| Weight | 600 g |
| Height | 37 mm |
| Depth | 112 mm |
| Width | 117 mm |
| Packaging content | |
|---|---|
| Display included | No |
| General | |
|---|---|
| Product family | NUC |
| Product series | 14 Pro |
