Rack-Optimized Mini-ITX compact form factor increases density

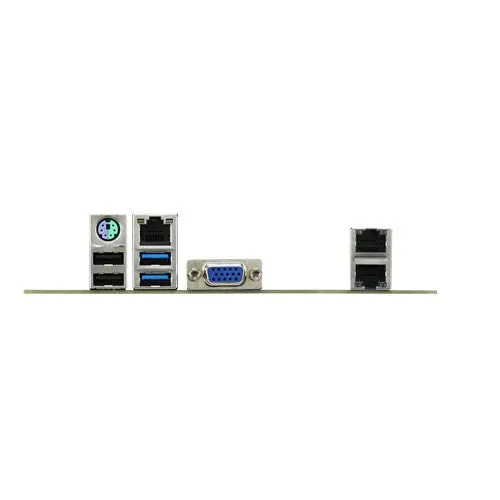

As a slim size serverboard, the 6.7” x 6.7” Mini ITX form factor of P10S-I fits for various small form factor appliance servers. In addition, its layout is rack-optimized placement, the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency. Therefore, P10S-I can be easily integrated in short depth chassis, thus P10S-I no doubt increases the density in a rack cabinet to provide higher computing power per rack than before.
Onboard M.2 up to 32Gb/s Speeds
With x4 PCI Express 3.0/2.0 bandwidth, one M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating system or application drive. In addition, the special design on the edge for M.2, it will increase more choices for M.2 expansion, even if up to 22110.
Next-Gen Storage – NVMe Support
Next-Gen Storage technology – NVMe is where the industry is headed. By taking new NVM technology closer to the CPU with the benefits of less latency and higher maximum bandwidth, NVMe solution is the fastest internal storage interface today.
There are two solutions to implement NVMe application on P10S series. One is PCIe interface solution – directly plug the PCIe NVMe devices or through ASUS-made PCIe to U.2 adapter (ASUS PCIE-NVME1). The other is M.2 interface solution – through ASUS-made M.2 to U.2 adapter (ASUS M2-NVME1). By using mini-SAS HD to min-SAS HD cable or mini-SAS HD to SFF-8639 cable, the ASUS-made PCIe to U.2 or M.2 to U.2 adapters offer flexible NVMe upgrade package on different usage scenario.
High Power Efficiency with Platinum Power Solution
ASUS P10S-I server board is designed with the platinum power solution with the hand-chosen components and provide platinum efficiency which is up to 94%. The platinum power solution consists 3 pillars to achieve the 94% platinum efficiency: 12K Ultra Longevity Solid Capacitor ,Beat Thermal Choke III and Digi+ VRM. 12K solid capacitors which is able to withstand up to 1,200,000 hours of temperatures as high as 65°C (12K hours@105°C). The 3rd generation Beat Thermal Choke with lower DCR and result in 3℃-lower choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR controller precisely provide the accurate voltage/current that CPU require to reduce switching loss. Therefore, using in non-stop server machine running 24 hours per day, it will reduce electronic cost for customers in this generation products.
Serviceability – Quick Boot
The ASUS P10 Series features quick initialization guidance which let users realize system initialization state in seconds; Turn on the power button comes with 3 key information showing on the screen at the same time: (1) progress bar showcases the booting status, (2) BMC IP address if ASMB module is mounted on the server and (3) 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for troubleshooting.
Optional PIKE II 3×08 Series SAS 12Gb/s solution
ASUS PIKE II 3×08 series is the latest 12Gb/s SAS and PCI-E 3.0 high reliability enterprise storage solution. It meets users’ needs with support 12Gb/s SAS storage and various RAID levels data protection. Just placing the PIKE II card, P10S Series can immediately enlarge the capacity and improve the performance, making it the great upgrade option.
Complete remote server management
The optional IPMI 2.0-compliant ASMB8-iKVM module enables remote BIOS updates, backup and restore configurations, SNMP agent support (MIBs files), audit log, and BIOS post code. With out-of-band management ASMB8-iKVM provides round-the-clock remote monitoring and diagnosis even if the server operating system is down or offline, and all through a user-friendly web-based graphical interface that works with all major browsers. In addition, ASWM Enterprise software provides one-to-multiple centralized management including BIOS flash, software dispatch, task scheduler, remote control and power control, via colorful and informative graphical interface.
