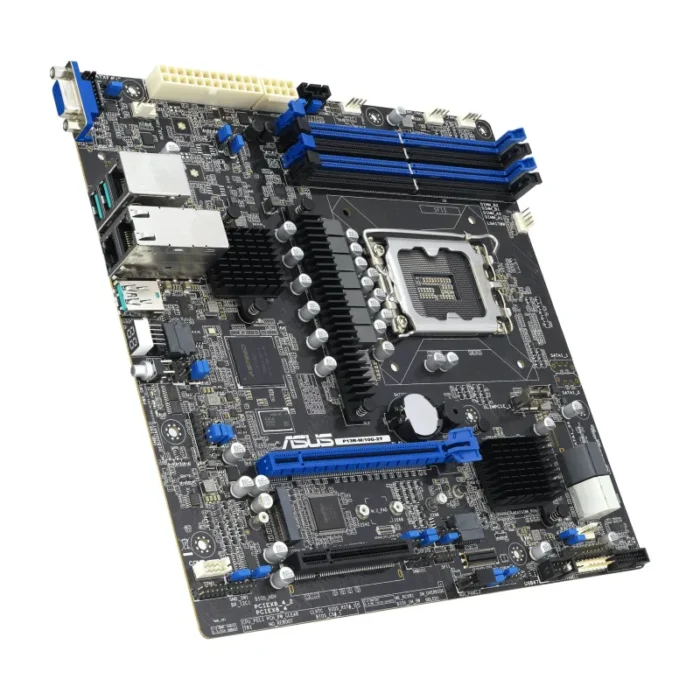

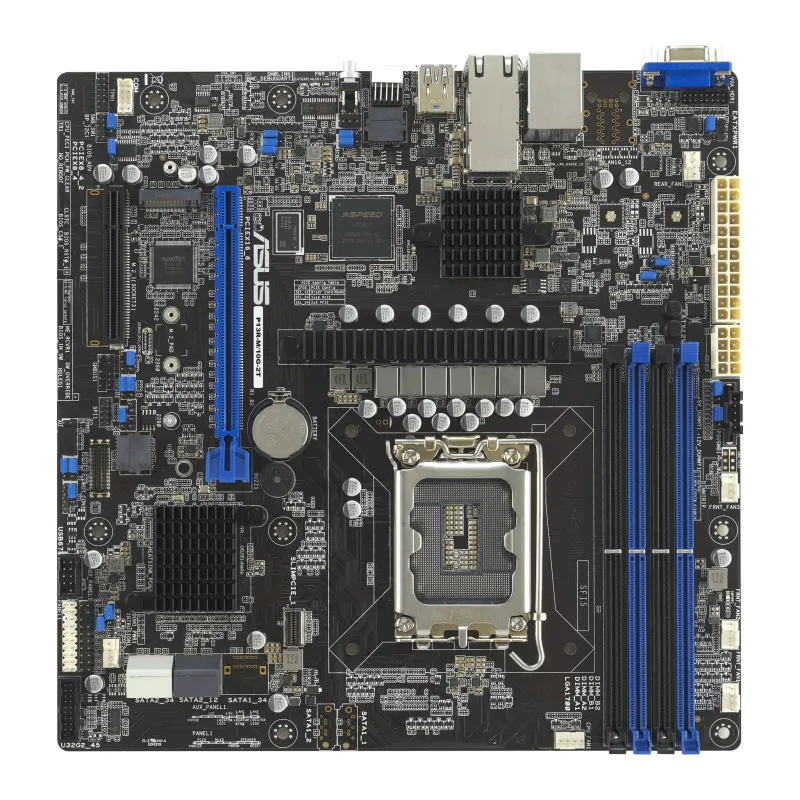

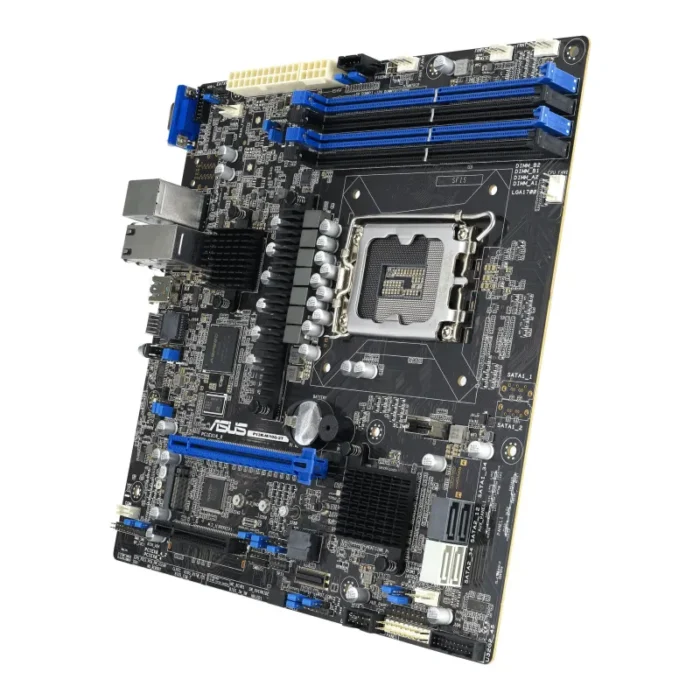

ASUS P13R-M/10G-2T Intel C262 LGA 1700 micro ATX
- Powered by eight-core Intel Xeon E-2400-series processor with support for up to 95 W TDP
- Flexible expandability with four native SATA HDDs, one PCIe 5.0 slot and one PCIe 4.0 slot
- Dual-port Intel X710-AT2 gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- Onboard ASUS ASMB11-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
PCIe 5.0 Ready
Faster storage, graphics and networking capabilities PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
Intel Xeon E-2400 processors
Designed for small- to medium-sized businesses (SMBs) and cloud-service providers, offering robust and secure solutions. These processors support up to eight cores and 16 threads, with a maximum frequency of 5.6 GHz and a 95 W TDP, ensuring rapid data processing and application responsiveness. They support up to 128 GB of DDR5 4400 MT/s memory and PCIe 5.0 interfaces, providing server-grade 24/7 reliability for business-critical services and customer data, and cost-effective performance for entry-level bare-metal cloud services.
| Processor |
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Pentium®, Intel Xeon E |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
| Supported memory module capacities |
8GB, 16GB, 32GB |
| Maximum internal memory |
128 GB |
| Supported memory clock speed (max) |
4400 MHz |
| Supported memory clock speeds |
3600,4000,4400 MHz |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
| RAID support |
Yes |
| Number of storage drives supported |
5 |
| Number of HDDs supported |
4 |
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
| On-board graphics card model |
Aspeed AST2600 |
| On-board graphics card memory |
64 MB |
| Graphics card |
AST2600 |
| Graphics card family |
ASPEED |
| Internal I/O |
| Serial port headers |
1 |
| TPM connector |
Yes |
| 12V power connector |
Yes |
| Chassis intrusion connector |
Yes |
| Number of chassis fan connectors |
6 |
| ATX Power connector (24-pin) |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
1 |
| Rear panel I/O ports |
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| Network |
| LAN controller |
Intel X710-AT2 |
| Ethernet interface type |
10 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
| Motherboard chipset |
Intel C262 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
Server |
| Expansion slots |
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| PCI Express x8 slots |
1 |
| Operational conditions |
| Storage relative humidity (H-H) |
20 – 90% |
| Operating temperature (T-T) |
10 – 50 °C |
| Storage temperature (T-T) |
-40 – 70 °C |
| Packaging data |
| Package weight |
1.3 kg |
| Weight & dimensions |
| Depth |
244 mm |
| Width |
244 mm |
| Packaging content |
| Cables included |
SATA |
