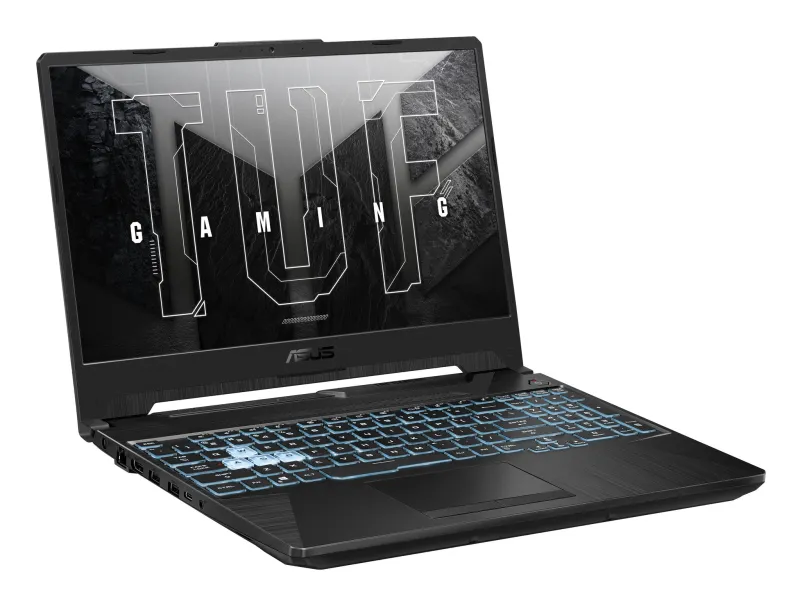

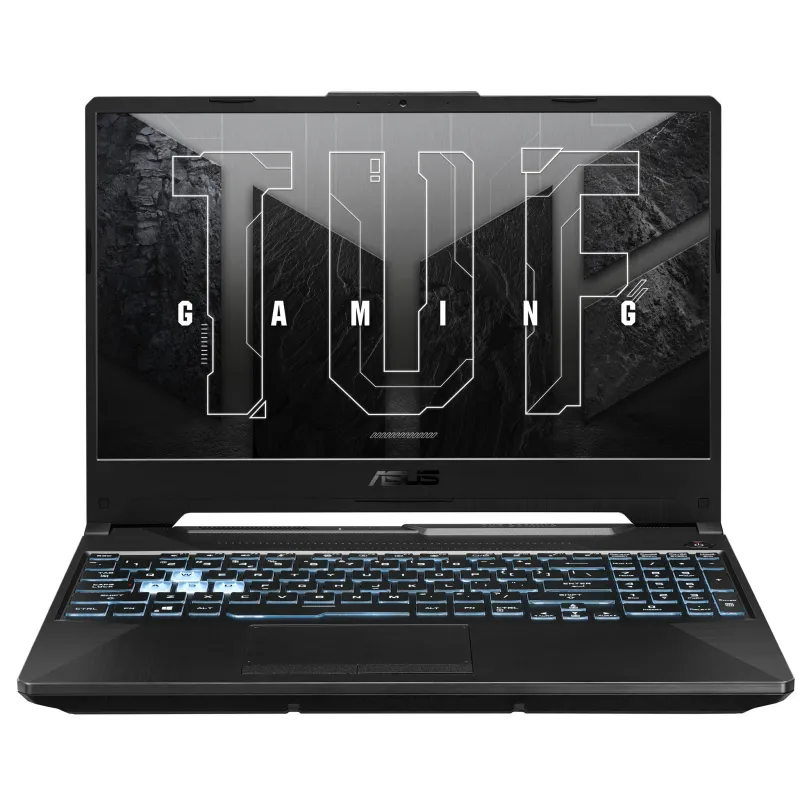

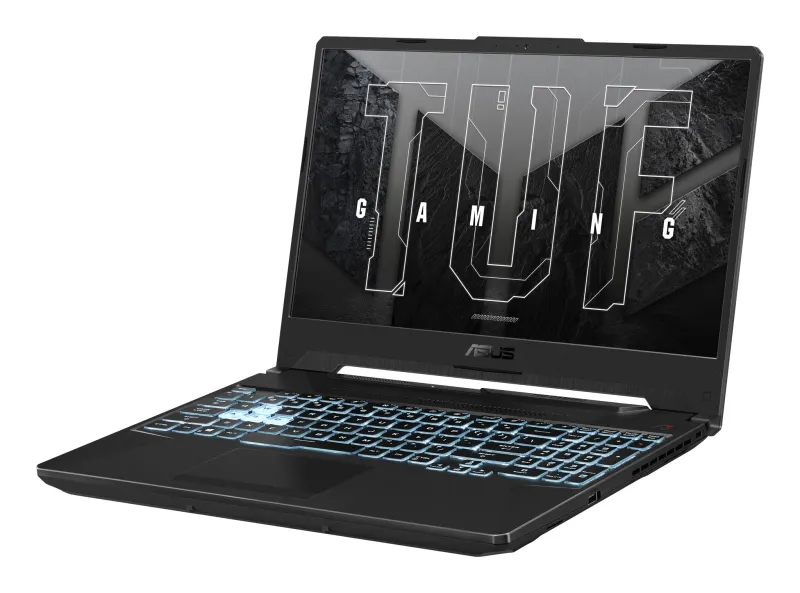

ASUS TUF Gaming A15 FA506NF-HN003W AMD Ryzen™ 5 7535HS Laptop 39.6 cm (15.6″) Full HD 8 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 2050 Wi-Fi 6 (802.11ax) Windows 11 Home Black
- Windows 11 Home 64-bit
- AMD Ryzen 5 7535HS (19MB Cache, 3.3GHz)
- 39.6 cm (15.6″) Full HD 1920 x 1080 IPS, NVIDIA GeForce RTX 2050 (4GB GDDR6)
- 8GB (5600MHz) DDR5-SDRAM (1 x 8) & 512GB SSD
| Design | |
|---|---|
| Country of origin | China |
| Introduction year | 2024 |
| Market positioning | Gaming |
| Form factor | Clamshell |
| Colour name | Graphite Black |
| Product colour | Black |
| Product type | Laptop |
| Display | |
|---|---|
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 144 Hz |
| RGB colour space | sRGB |
| Colour gamut | 62.5% |
| Display brightness | 250 cd/m² |
| Anti-glare screen | Yes |
| Native aspect ratio | 16:9 |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6″) |
| Processor | |
|---|---|
| Processor cache type | L2 & L3 |
| Processor cache | 19 MB |
| Processor frequency | 3.3 GHz |
| Processor boost frequency | 4.55 GHz |
| Processor cores | 6 |
| Processor model | 7535HS |
| Processor generation | AMD Ryzen 7000 Series |
| Processor family | AMD Ryzen™ 5 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory clock speed | 5600 MHz |
| Memory form factor | SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 512 GB |
| Storage media | SSD |
| Total storage capacity | 512 GB |
| Graphics | |
|---|---|
| On-board graphics card model | AMD Radeon 660M |
| On-board GPU manufacturer | AMD |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 4 GB |
| Discrete graphics card model | NVIDIA GeForce RTX 2050 |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Number of built-in speakers | 2 |
| Camera | |
|---|---|
| Front camera resolution | 1280 x 720 pixels |
| Front camera HD type | HD |
| Front camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2×2 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Mobile network connection | No |
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Power adapter barrel connector | 6.0 mm |
| Combo headphone/mic port | Yes |
| HDMI version | 2.0b |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Performance | |
|---|---|
| Repairability index | 8.6 |
| Keyboard | |
|---|---|
| Keyboard backlit zone | 1-zone RGB |
| Keyboard backlit colour | RGB |
| Numeric keypad | Yes |
| Keyboard backlit | Yes |
| Pointing device | Touchpad |
| Software | |
|---|---|
| Trial software | McAfee 30 days, Xbox Game Pass Ultimate 3 months |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Home |
| Battery | |
|---|---|
| Battery capacity | 48 Wh |
| Number of battery cells | 3 |
| Battery technology | Lithium-Ion (Li-Ion) |
| Power | |
|---|---|
| AC adapter output voltage | 20 V |
| AC adapter output current | 7.5 A |
| AC adapter input voltage | 100 – 240 V |
| AC adapter frequency | 50 – 60 Hz |
| AC adapter power | 150 W |
| Security | |
|---|---|
| Password protection type | BIOS, User |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Weight & dimensions | |
|---|---|
| Height (rear) | 2.45 cm |
| Height (front) | 2.28 cm |
| Depth | 256 mm |
| Width | 359 mm |
| Weight | 2.3 kg |
| Packaging data | |
|---|---|
| Package weight | 3.29 kg |
| Package height | 312 mm |
| Package depth | 426 mm |
| Package width | 103 mm |
| General | |
|---|---|
| Product family | TUF Gaming |
| Product series | A15 |
| Logistics data | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 8471300000 |
