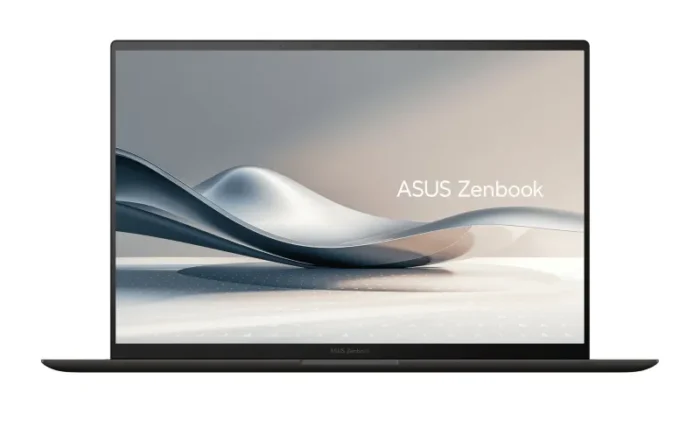

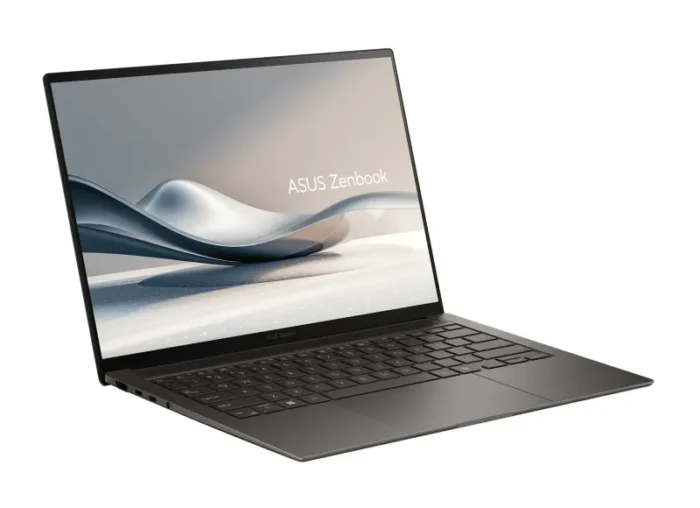

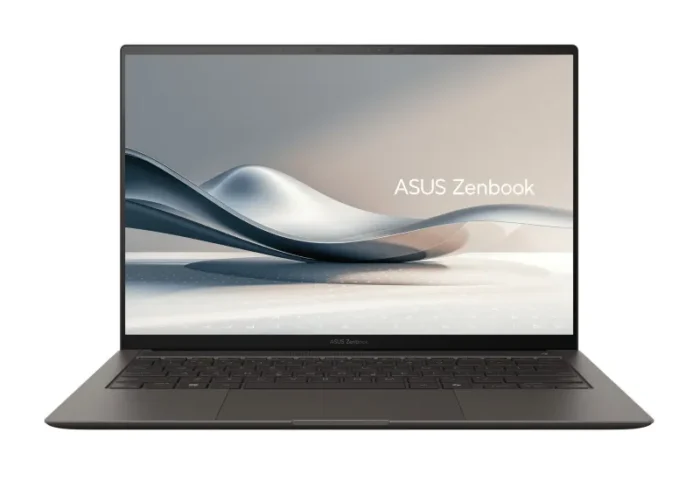

ASUS Zenbook S 14 UX5406SA-PZ127W Intel Core Ultra 5 226V Laptop 35.6 cm (14″) Touchscreen 3K 16 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Home Grey
- Windows 11 Home 64-bit
- Intel Core Ultra 5 226V (8MB Cache)
- 35.6 cm (14″) 3K 2880 x 1800 OLED Touch
- 16GB LPDDR5x-SDRAM & 512GB SSD
New Zen with superior AI
Experience the world-changing power of AI with Zenbook S 14, a new-era ASUS Copilot+ PC that combines an exceptional 1.1 cm-slim1 design with cutting-edge technology. Its all-metal body — with a unique Ceraluminum™ high-tech ceramic lid and nature-inspired colors — houses next-level AI capabilities, driven by up to the latest Intel® Core™ Ultra 9 processor (Series 2) with ambient cooling minimize noise. Immerse yourself in a visual feast with the stunning 3K ASUS Lumina OLED2 display, complemented by rich and powerful sound from the four-speaker audio system. Zenbook S 14 brings you elegance, power, and innovation in a slim and sophisticated package.
| Design |
| Country of origin |
China |
| Introduction year |
2024 |
| Market positioning |
Home |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Colour name |
Zumaia Gray |
| Product colour |
Grey |
| Product type |
Laptop |
| Display |
| High Dynamic Range (HDR) technology |
HDR True Black 500 |
| High Dynamic Range (HDR) supported |
Yes |
| Contrast ratio (typical) |
1000000:1 |
| Display response rise/fall |
0.2 ms |
| Maximum refresh rate |
120 Hz |
| RGB colour space |
DCI-P3 |
| Colour gamut |
100% |
| Display brightness |
400 cd/m² |
| Maximum display brightness (HDR) |
500 cd/m² |
| Display surface |
Gloss |
| Native aspect ratio |
16:10 |
| Display number of colours |
1.073 billion colours |
| Panel type |
OLED |
| HD type |
3K |
| Touchscreen |
Yes |
| Display resolution |
2880 x 1800 pixels |
| Display diagonal |
35.6 cm (14″) |
| Processor |
| Processor base power |
17 W |
| Maximum turbo power |
37 W |
| Processor cache type |
Smart Cache |
| Processor cache |
8 MB |
| Low Power Efficient-core Base Frequency |
2100 MHz |
| Performance-core base frequency |
2.1 GHz |
| Low Power Efficient-core Max Turbo Frequency |
3.5 GHz |
| Performance-core Max Turbo Frequency |
4.5 GHz |
| Low Power Efficient-cores |
4 |
| Performance cores |
4 |
| Processor boost frequency |
4.5 GHz |
| Processor threads |
8 |
| Processor cores |
8 |
| Processor model |
226V |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 5 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| NPU performance up to |
40 TOPs |
| Total processor performance up to |
97 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Maximum internal memory |
16 GB |
| Memory form factor |
On-board |
| Internal memory type |
LPDDR5x-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics 130V |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Speakers manufacturer |
Harman Kardon |
| Audio system |
Smart Amp |
| Camera |
| Infrared (IR) camera |
Yes |
| Front camera resolution |
1920 x 1080 pixels |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Ethernet LAN |
No |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| Performance |
| Repairability index |
8.3 |
| Keyboard |
| Copilot key |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Touchpad |
| Software |
| Copilot+ PC |
Yes |
| Microsoft Copilot |
Yes |
| Trial software |
1-month trial for new Microsoft 365 customers. Credit card required, One-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025. |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Battery |
| Battery capacity |
72 Wh |
| Number of battery cells |
4 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C charging port |
Yes |
| AC adapter output voltage |
20 V |
| AC adapter output current |
3.25 A |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
65 W |
| Security |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Windows Hello |
Yes |
| Face recognition |
Yes |
| Certificates |
| Compliance certificates |
REACH |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Height (rear) |
1.29 cm |
| Height (front) |
1.19 cm |
| Depth |
214.7 mm |
| Width |
310.3 mm |
| Weight |
1.2 kg |
| Packaging data |
| Package weight |
3.67 kg |
| Package height |
284 mm |
| Package depth |
75 mm |
| Package width |
410 mm |
| General |
| Product family |
Zenbook |
| Product series |
S 14 |
| Logistics data |
| Commodity Classification Automated Tracking System (CCATS) |
8471300000 |
