ATEN VGA&HDMI KVM over IP Console Station
- A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches*: KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, and KN4140VA
- Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
- Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
- Supports Boundless Switching – allows users to control up to 4 screens between two console stations by using one set of keyboard & mouse

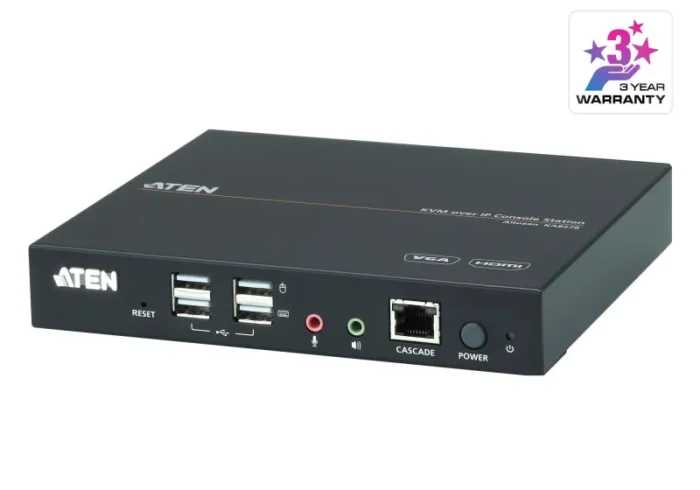

The KVM over IP Console Station KA8278 is a standalone console that replaces PC or NB, enabling users to remotely access, monitor and control all servers connected to multiple ATEN’s KVM over IP switches* with impenetrable security against virus threats. It also supports various data encryption methods, ensuring impervious data protection. The KVM over IP Console Station can be deployed anywhere instant access is needed and stringent security required, ideal for applications such as studios, offices, data centers, broadcast stations, control rooms, or network operations centers (NOC).
1x KA8278 VGA/HDMI KVM over IP Console Station
1x 0AD8-8005-40MG Power Adapter
1x LIN2-418K-E12G Power Cord
1x Mounting Kit
4x Foot Pad
1x User Instructions
| Ports & interfaces |
| DC-in jack |
Yes |
| Number of microphone inputs |
1 |
| Headphone outputs |
1 |
| Audio connections |
Yes |
| Serial port type |
DE-9 (DB-9) |
| USB connector type |
USB Type-A |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| Video port type |
HDMI/VGA |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Network |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
| Video bandwidth |
60 Hz |
| Maximum resolution |
1920 x 1200 pixels |
| HD type |
Full HD+ |
| Design |
| Push button |
Yes |
| LED indicators |
Power |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Display |
| Built-in display |
No |
| Power |
| Power consumption (typical) |
6.53 W |
| Input voltage |
5 V |
| Power source |
DC |
| Sustainability |
| Compliance certificates |
RoHS |
| Operational conditions |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
1.3 kg |
| Height |
28.8 mm |
| Depth |
174.2 mm |
| Width |
155.4 mm |
| Packaging data |
| Package weight |
1.48 kg |
| Package height |
210 mm |
| Package depth |
325 mm |
| Package width |
98 mm |
| Packaging content |
| Manual |
Yes |
| AC adapter included |
Yes |
| Cables included |
AC |
| Logistics data |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case gross weight |
8.06 kg |
| Master (outer) case height |
232 mm |
| Master (outer) case length |
512 mm |
| Master (outer) case width |
342 mm |
| Master (outer) case net weight |
6.5 kg |
| Harmonized System (HS) code |
85176200 |
