AudioCodes RXVCam70 8.42 MP Black 3840 x 2160 pixels 30 fps CMOS 25.4 / 1.8 mm (1 / 1.8″)
- Exceptional image clarity via a powerful, high resolution 12x optical zoom, and wide field of view
- Ultra-high-resolution, high-quality 4K video at 30fps
- AI-powered face detection capabilities
- Centralized management and monitoring via the AudioCodes Device Manager

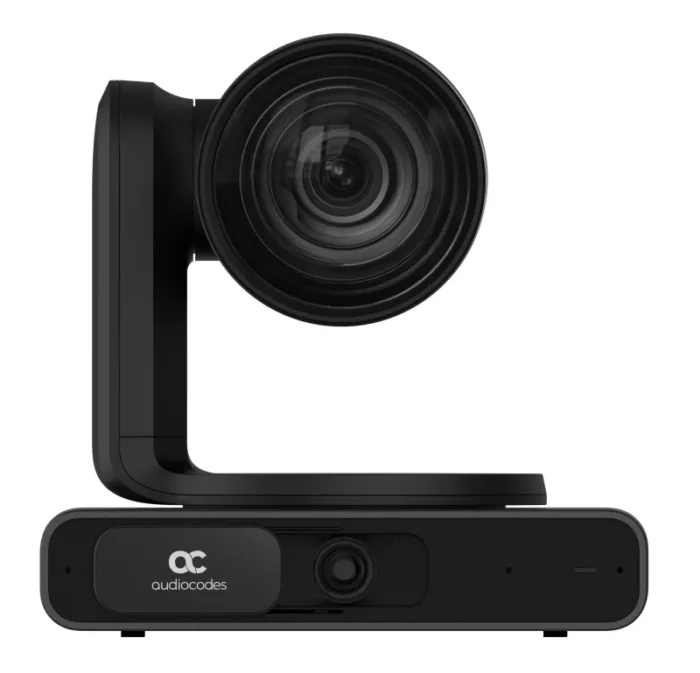

The AudioCodes RXVCam70 is a 4K dual-lens PTZ video camera designed for medium and large meeting rooms.
Boasting a 12x optical zoom close-up lens, a 119º DFOV panoramic lens and built-in mic array, the RXV70 delivers an optimal audio and video meeting experience for all participants. Advanced built-in AI features, including auto-framing, speaker tracking and smart gallery, ensure that every moment of every meeting is captured automatically.
The RXVCam70 complements AudioCodes solution bundles for medium-large Android and Windows Microsoft Teams Rooms, helping you create an optimized environment for hybrid Teams meetings.
Dual 4K Lens
Two 4K sensors for total room coverage
Speaker Tracking
Automatically identifies and tracks speakers
Auto Framing
Adjusts field of view according to number of people in the room
Smart Gallery
Displays all participants in separate close-up frames
RXVCam70 PTZ Camera Benefits
– Deliver a dynamic and engaging meeting experience with advanced AI-powered features
– Ideal for hybrid sessions ensuring all participants can be seen and heard regardless of location
– Seamless integration with AudioCodes MTR systems for a streamlined hybrid video conferencing experience.
– Easy to install and operate via the AudioCodes RX-PAD room controller
| Camera | |
|---|---|
| 3D NR (Noise Reduction) | Yes |
| White balance | Auto, Indoor, Manual, Outdoor |
| Aperture range (F-F) | 1.8 – 3.6 |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Minimum illumination | 0.5 lx |
| Focal length range | 4.8 – 57.8 mm |
| Digital zoom | 16x |
| Optical zoom | 12x |
| Zoom capability | Yes |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8″) |
| Sensor type | CMOS |
| Camera type | Single camera |
| Megapixel (approx.) | 8.42 MP |
| Video | |
|---|---|
| Supported graphics resolutions | 320 x 240, 320 x 288 (QVGA), 480 x 270, 640 x 360, 640 x 480 (VGA), 800 x 600 (SVGA), 960 x 540, 1024 x 576 (WSVGA) |
| Video formats supported | H.264, MJPG, YUV |
| Supported video modes | 360p, 720p, 1080p |
| Resolution at capture speed | 320×240@25fps, 320×240@30fps, 640×360@25fps, 640×360@30fps, 640×480@25fps, 640×480@30fps, 960×540@30fps |
| HD type | 4K Ultra HD |
| Maximum frame rate | 30 fps |
| Maximum video resolution | 3840 x 2160 pixels |
| Design | |
|---|---|
| Pan range | 0 – 170° |
| Tilt angle range | 0 – 90° |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Power | |
|---|---|
| DC current (max) | 2 A |
| Power consumption (max) | 20 W |
| DC input voltage | 12 V |
| Power source type | AC, DC |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 60 °C |
| Operating temperature (T-T) | -10 – 40 °C |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Cables included | LAN (RJ-45), USB |
| Remote control included | Yes |
| Performance | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Tracking modes | Presenter mode |
| Auto framing | Yes |
| Audio | |
|---|---|
| Microphone pick-up range | 8 m |
| Number of microphones | 3 |
| Built-in microphone | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 2.3 kg |
| Height | 151.5 mm |
| Depth | 178.4 mm |
| Width | 181 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package height | 240 mm |
| Package depth | 295 mm |
| Package width | 245 mm |
