Axis 02100-001 security camera Dome IP security camera Indoor & outdoor 2880 x 2880 pixels Ceiling/wall
- 12 MP sensor with 360° overview; 4 microphones with voice enhancer; Lightfinder, Forensic WDR, OptimizedIR; Stereographic lens and Sharpdome 360; Support for analytics with deep learning

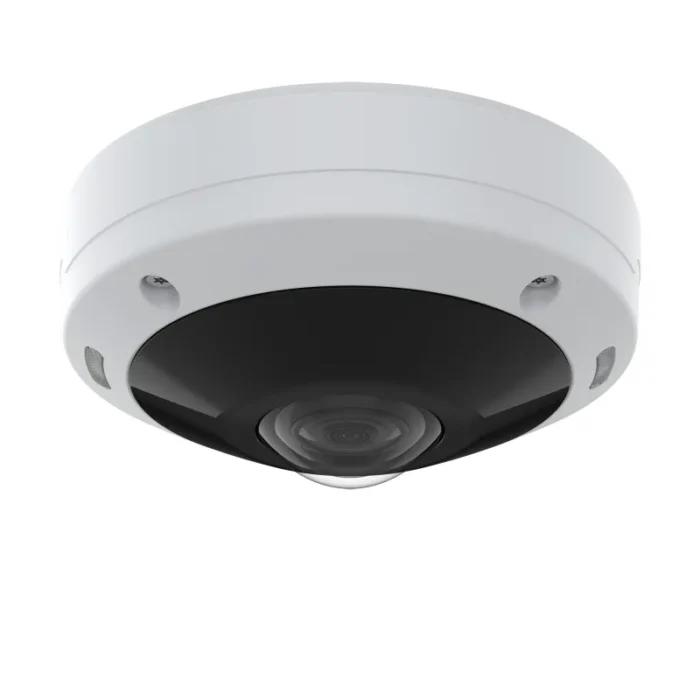

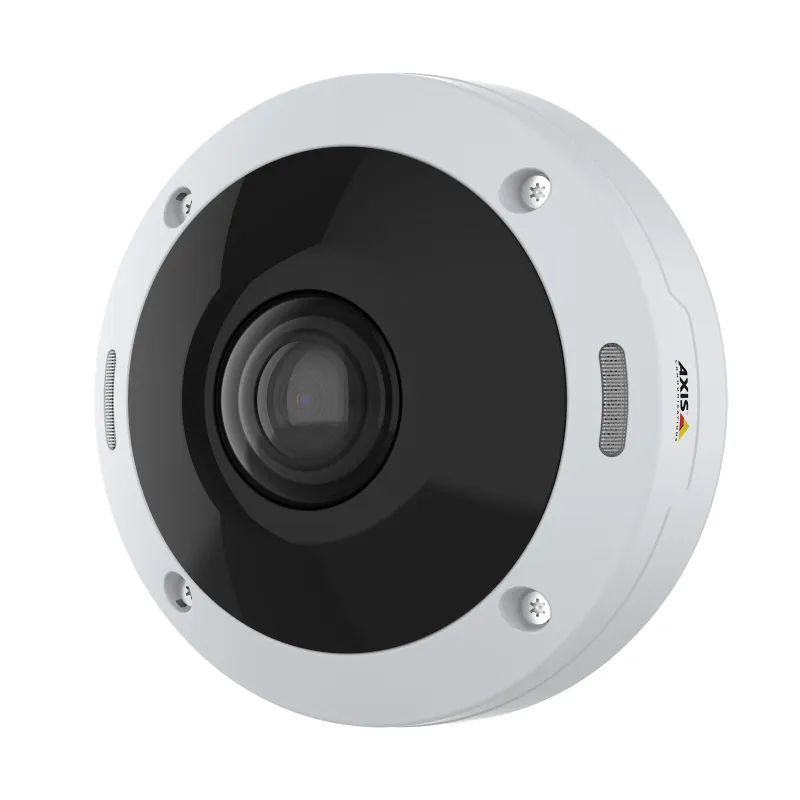

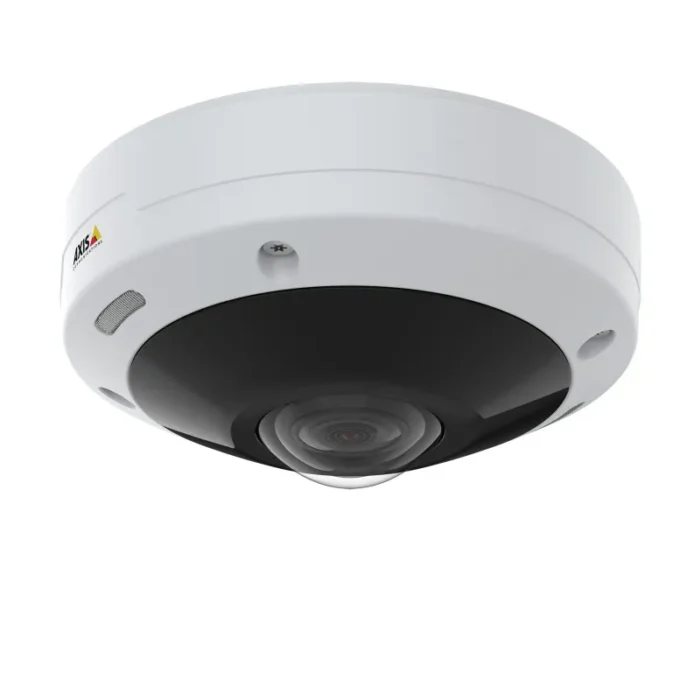

AXIS M4308-PLE is a discreet, outdoor-ready mini dome designed to blend seamlessly into any environment. With a 12 MP sensor and stereographic lens, it offers outstanding images and complete 360° panoramic overview. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. AXIS Object Analytics is included and a deep learning processing unit (DLPU) enables unique opportunities to take advantage of analytics based on deep learning on the edge. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Four built-in microphones and voice enhancer offers audio capture with great noise suppression.
| Performance |
| Certification |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2,FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A,RCM AS/NZS CISPR 32 Class A, KS C9832 Class A, KS C9835 |
| Languages support |
Simplified Chinese, Traditional Chinese, German, English, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Number of languages |
12 |
| Alarm input/output |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| IK code |
IK10 |
| International Protection (IP) code |
IP66 |
| Protection features |
Dust resistant, Water resistant |
| Housing material |
Aluminium |
| LED indicators |
Yes |
| Product colour |
White |
| Mounting type |
Ceiling/wall |
| Form factor |
Dome |
| Camera |
| Camera shutter speed |
1/22000 – 1 s |
| Lens viewing angle, horizontal |
183° |
| Field of view (FOV) angle |
183° |
| Minimum illumination |
0.04 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 1.7 mm (1 / 1.7″) |
| Number of sensors |
1 |
| Sensor type |
CMOS |
| Lens system |
| Auto focus |
No |
| Fixed focus |
Yes |
| Focal length range |
1.3 mm |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Night vision |
| LED type |
IR |
| Night vision |
Yes |
| Video |
| Image quality adjustment |
Brightness, Contrast |
| Privacy masking |
Yes |
| Video streaming |
Yes |
| Frame rate |
30 fps |
| Video recording |
Yes |
| Total megapixels |
12 MP |
| Maximum resolution |
2880 x 2880 pixels |
| Audio |
| Audio detection |
Yes |
| Built-in microphone |
Yes |
| Audio formats supported |
AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS |
| Network |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Internal memory |
2000 MB |
| Flash memory |
1000 MB |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated |
Yes |
| Built-in HDD |
No |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Active tampering alarm |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Digest authentication |
Yes |
| Security algorithms |
802.1x RADIUS, HTTPS |
| Alert notification type |
E-mail, Text alert message |
| Pixel counter |
Yes |
| Power |
| Power consumption (max) |
15.5 W |
| Power consumption (typical) |
7.9 W |
| Power source type |
PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
10 – 100% |
| Storage temperature (T-T) |
-40 – 65 °C |
| Operating temperature (T-T) |
-40 – 50 °C |
| Weight & dimensions |
| Weight |
850 g |
| Diameter |
14.9 cm |
| Height |
69 mm |
| Packaging content |
| Manual |
Yes |
| Drilling template included |
Yes |
| Mounting brackets included |
Yes |
| Mounting kit |
Yes |
| Number of cameras |
1 |
| Logistics data |
| Harmonized System (HS) code |
85258900 |
