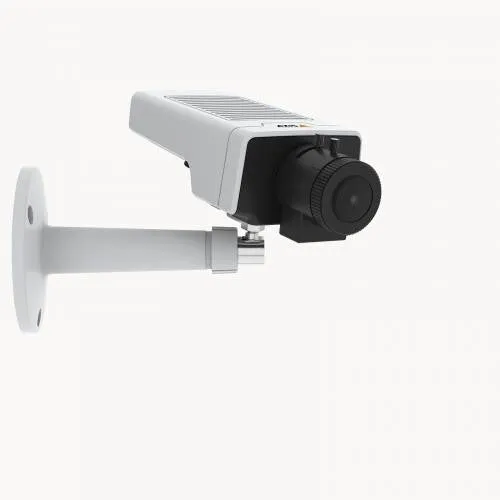

Axis 02483-001 security camera Box Indoor & outdoor 1920 x 1080 pixels Wall
- AXIS Object Analytics; Built-in microphone for audio recording; Compact and flexible design; Lightfinder and Forensic WDR; Remote zoom and focus with i-CS
AXIS M1135 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera’s CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
| Performance |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| PTZ modes |
Digital PTZ |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Design |
| Product colour |
Black, White |
| Mounting type |
Wall |
| Form factor |
Box |
| Camera |
| Camera shutter speed |
1/33500 – 2 s |
| Minimum illumination |
0.1 lx |
| Image sensor |
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9″) |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
3 – 10.5 mm |
| Night vision |
| Night vision |
Yes |
| Video |
| Frame rate |
30 fps |
| Maximum resolution |
1920 x 1080 pixels |
| Network |
| Networking standards |
IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Storage |
| Flash memory |
512 MB |
| Security |
| Active tampering alarm |
Yes |
| Power |
| Power over Ethernet (PoE) |
Yes |
| DC output voltage |
10, 12, 15, 16, 24, 28 |
| Power consumption (Power over Ethernet (PoE)) |
4.5 W |
| Power consumption (max) |
6.6 W |
| Power consumption (typical) |
4.4 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Operating temperature (T-T) |
-20 – 50 °C |
| Packaging content |
| Number of cameras |
1 |
| Technical details |
| Night mode |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85258900 |
