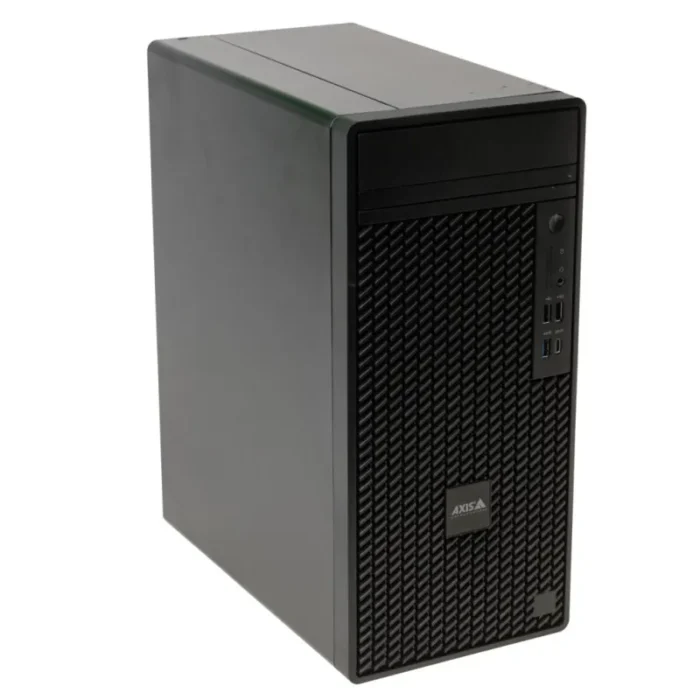

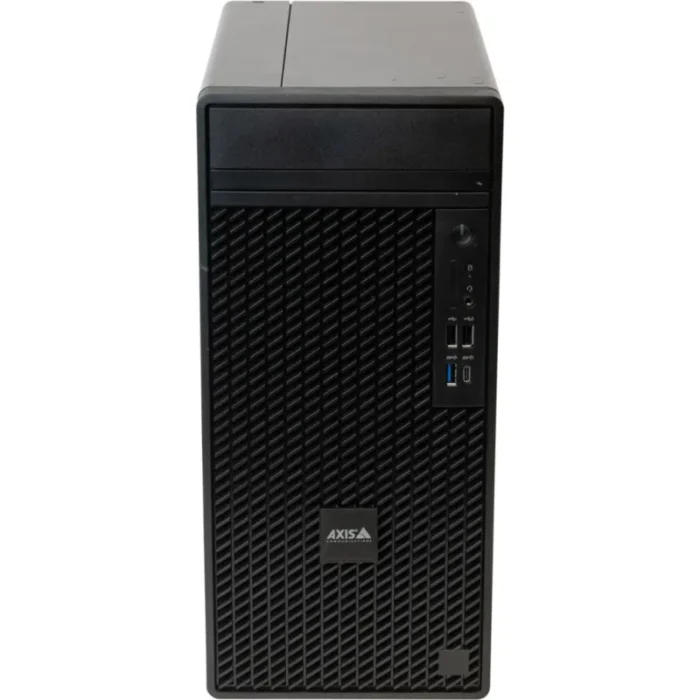

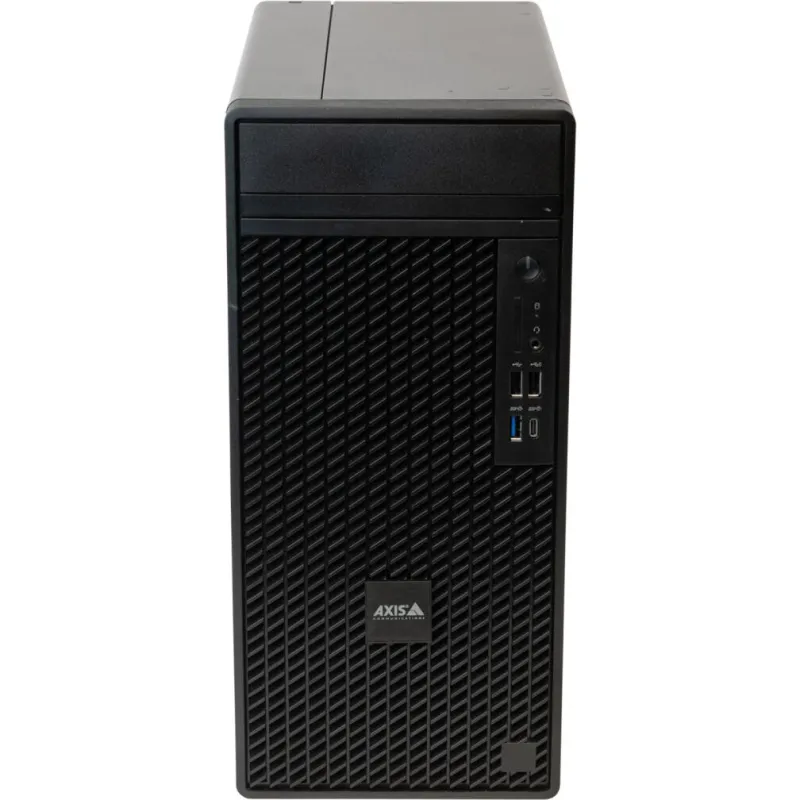

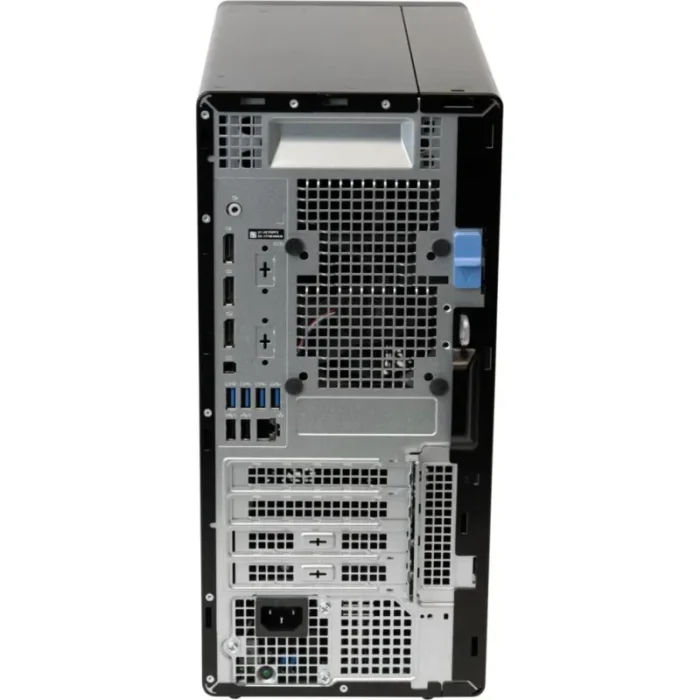

Axis 02694-002 network surveillance server Tower
- 16 AXIS Camera Station licenses included; 8 TB storage included; Extensive support and 5-year warranty; Flexible storage options including RAID; Scalable and powerful solution
Featuring powerful components, this secure, scalable recording server offers high performance and support for powerful applications and features. For quick and easy installation, AXIS S1216 Tower is preconfigured and preloaded with AXIS Camera Station video management software including licenses for 16 channels plus all necessary system software. And, a Trusted Platform Module (FIPS 140-2 level 2 certified) ensures secure storage of all cryptographic keys and certificates. Plus, all supported products are available in one price list for a one-stop-shop experience. Furthermore, it offers services such as Keep Your Hard Drive, Next Business Day Onsite Support, and a 5-year warranty
| Processor |
| Processor manufacturer |
Intel |
| Memory |
| Internal memory |
16 GB |
| Storage |
| RAID levels |
0, 1 |
| RAID support |
Yes |
| Number of SSDs installed |
1 |
| Number of HDDs installed |
1 |
| SSD capacity |
256 GB |
| HDD capacity |
8 TB |
| Hot-swap drive bays |
No |
| Total storage capacity |
8 TB |
| HDD interface |
SATA |
| HDD size |
3.5″ |
| Number of HDDs supported |
2 |
| Ports & interfaces |
| Audio in/out |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
5 |
| USB 2.0 ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
| Operating system installed |
Windows 10 IoT Enterprise |
| Design |
| LED indicators |
Yes |
| On/off switch |
Yes |
| Chassis type |
Tower |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply |
500 W |
| Weight & dimensions |
| Weight |
6.6 kg |
| Height |
367 mm |
| Depth |
301 mm |
| Width |
169 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
0 – 45 °C |
| Packaging content |
| Cables included |
AC |
