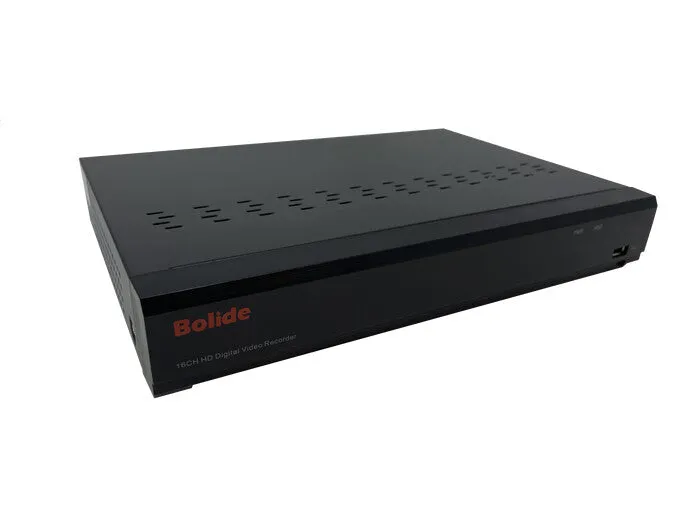

Bolide BK-DVR16 digital video recorder (DVR) Black
- 16-Channel Hybrid DVR
- Compatible with AHD, TVI, CVI, and Analog Cameras
- 16Mbps IP Channel Throughput
- Bolide QuickConnect Mobile App
- Bolide VMS Software for PC and Mac
| Performance |
| Product colour |
Black |
| Playback modes |
Fast Backward, Fast forward, Slow backward, Slow forward |
| USB connectivity |
Yes |
| LED indicators |
Yes |
| Video streaming |
Yes |
| Audio streaming |
Yes |
| Dual stream support |
Yes |
| Input bandwidth |
16 Mbit/s |
| Video capturing speed (PAL) |
25 fps |
| Video capturing speed (NTSC) |
30 fps |
| Video capturing speed |
30 fps |
| Video compression formats |
H.264, H.265 |
| Audio formats supported |
G.711 A-law |
| Maximum video resolution |
1920 x 1080 pixels |
| Ports & interfaces |
| USB 2.0 ports quantity |
2 |
| HDMI ports quantity |
1 |
| BNC input ports |
16 |
| Video input channels |
16 channels |
| Network |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Hard drive |
| Supported HDD interfaces |
Serial ATA |
| HDD capacity |
12 TB |
| Number of HDDs supported |
1 |
| Power |
| Power consumption (max) |
4 W |
| DC current (max) |
2 A |
| DC voltage |
12 V |
| Power supply type |
DC |
| Weight & dimensions |
| Height |
50.8 mm |
| Depth |
327 mm |
| Width |
210 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
0 – 90% |
