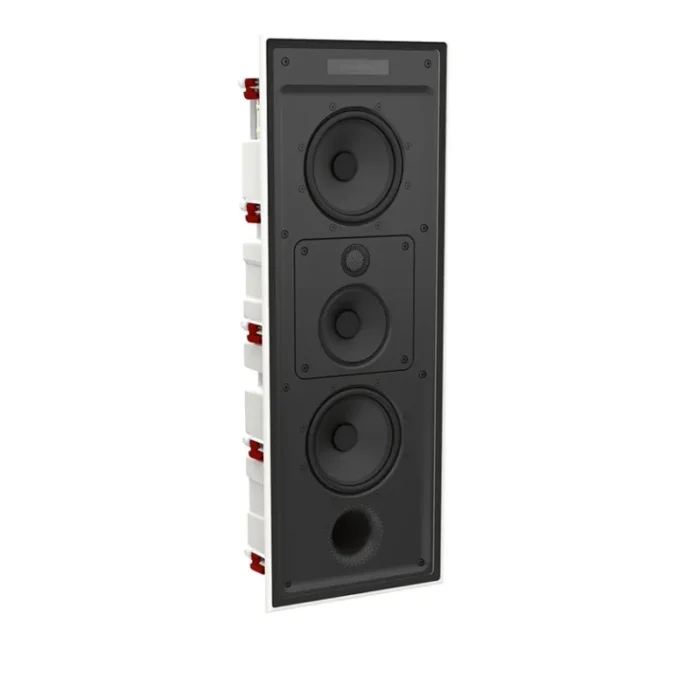

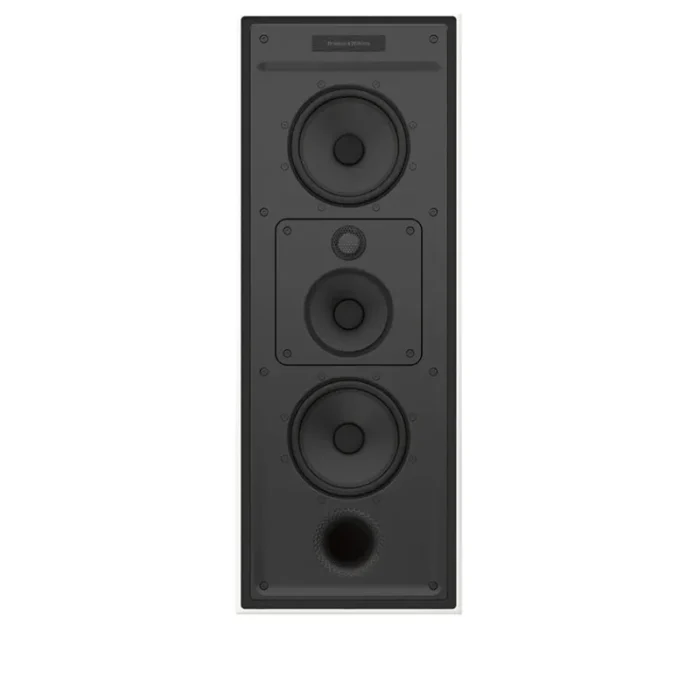

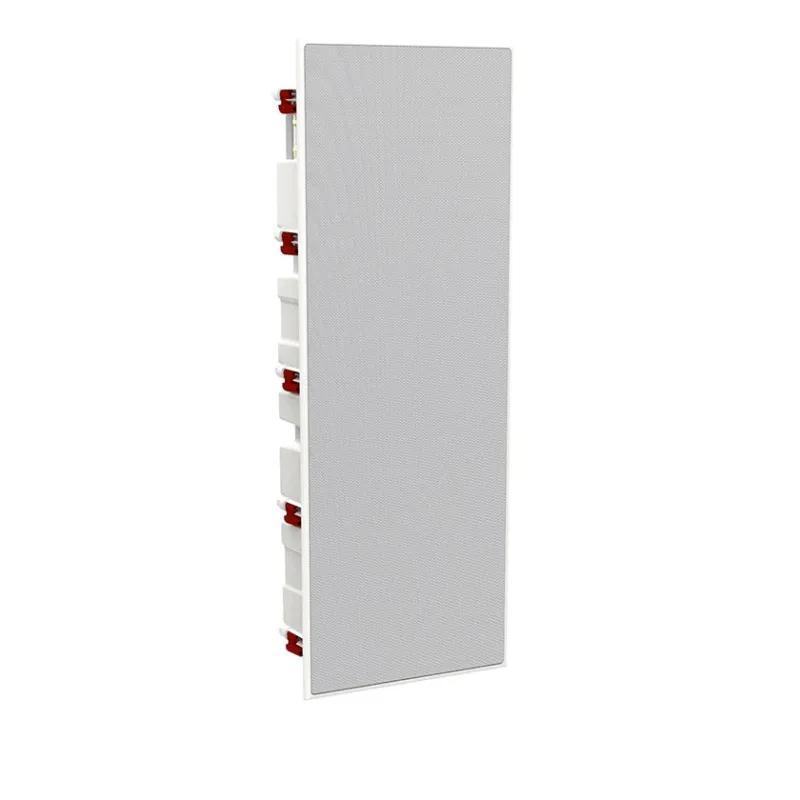

Bowers & Wilkins CWM7.3 S2 in wall speaker
Bowers & Wilkins CWM7.3 S2 in wall speaker
See nothing, hear everything
The CWM7.3 S2 features an integrated backbox that optimises its performance, cuts down on sound transference through walls and also makes it easy to retrofit. Its design incorporates twin 150mm (6in) Aerofoil profile bass drivers, a 100mm (4in) Continuum cone FSTTM mid-range driver and a Carbon Dome 25mm (1in) tweeter, all proven technologies shared with the acclaimed 700 Series range of loudspeakers. These outstanding tranducers, when combined with high-quality, optimised, components on the crossover and a critically formed baffle constructed from glass reinforced ABS, produce a truly remarkable in-wall speaker.
Technical Specification
Carbon Dome tweeter, Continuum cone FST midrange Aerofoil profile bass cones Flowport™
Description
3-way in-wall system
Drive units
1x ø25mm (1 in) Carbon Dome high-frequency1x ø100mm (4 in) Continuum cone FST midrange 2x ø150mm (6 in) Aerofoil profile bass
Frequency range
(-6dB) -6dB at 43Hz and 33kHz
Frequency Response
-3dB45Hz – 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m) <1% 80Hz – 33kHz <0.5% 120Hz – 33kHz
Nominal impedance
8Ω (minimum 3.1Ω)
Recommended amplifier power
25W – 200W into 8Ω on unclipped programme
Frame height
736mm (29in)
Frame width
276mm (11in)
Depth (behind surface)
102mm (4.02in)
Cut-out height
711mm (28in)
Cut-out width
251mm (9.9in)
Cut-out height w/PMK
715mm (28.1in)
Cut-out width w/PMK
256mm (10.1in)
Reservoir box height
460mm (18.1in)
Reservoir box width
220mm (8.7in)
Protrusion
7mm (0.28in)
PMK
7.3W
Net weight
12.4kg (27.32lb)
Finishes
Back box: White
Grille: White
