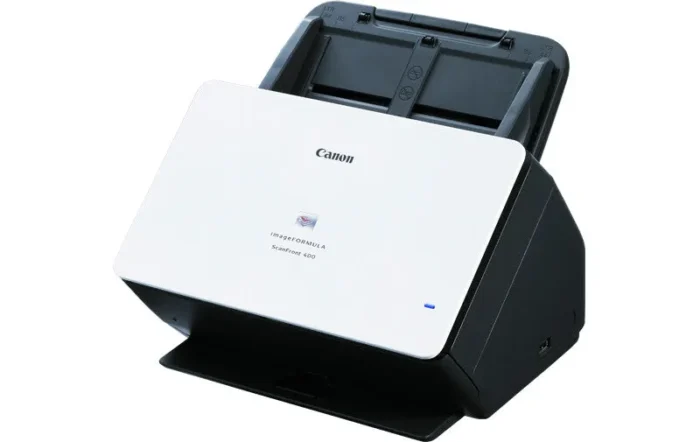

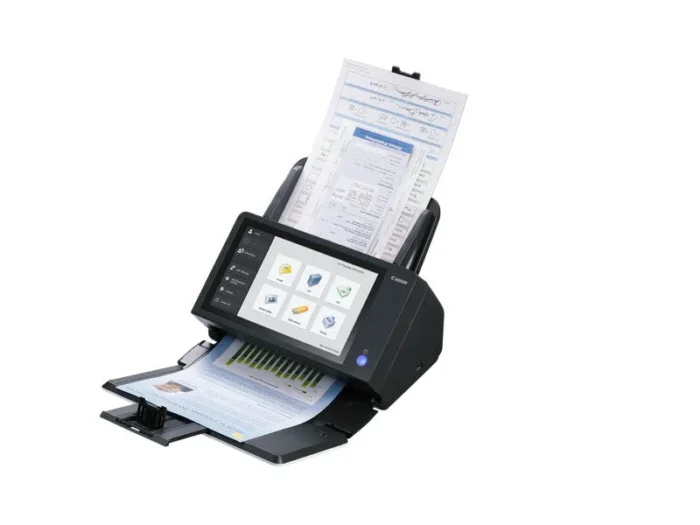

Canon imageFORMULA ScanFront 400 ADF scanner 600 x 600 DPI A4 Black, White
- Scanner type: ADF scanner 600 x 600 DPI
- Colour scanning Duplex scanning
- TFT Built-in display
- A4 Scanning media types supported: Business Card, Plastic Card, Post Card(JPN)
- Maximum scan size: 216 x 356 mm Sensor type: CMOS CIS
- USB port Ethernet LAN
- Power supply type: AC 40 W
Dedicated network scanner
The Canon imageFORMULA ScanFront 400 is the ultimate network scanner for streamlining document workflows. The simple interface allows quick and easy scanning to email, network folders, FTP, USB memory, fax, or printers directly from the scanner’s bright and responsive 10.1” (25.7 cm) TFT touchscreen – no additional hardware or software required.
Ideal for every business
Its desk-friendly size, elegant design and quiet operation make it perfect for both back office use and consumer-facing countertops in retail, banking, healthcare and the legal profession. Small businesses can share the device across the office, while large corporations can integrate the scanner into existing infrastructures for both central department scanning and decentralised scanning in branch offices.
Boost productivity
Scan more documents with high-speed scanning at 45 pages per minute, plus a large 60-sheet ADF. Canon’s tried and tested document feeding mechanism and durable build quality, rated for up to 6,000 scans per day, ensure unparalleled reliability. Ultra-sonic sensors instantly detect double feeds, while the Double Feed Release (DFR) function enables easy scanning of envelopes and folded documents.
ScanFront Administration Tool
Administration tool software allows you to manage multiple ScanFront scanners at a time. You can check the current status of the ScanFront scanners on the network, configure settings, manage users, back-up and restore configuration data.
uniFLOW compatibility
Take advantage of the uniFLOW support for Canon’s ScanFront network document scanner to improve scan-capture workflows and enjoy more value from your Canon fleet. Featuring compact design and ultra-reliable document feeder, ScanFront can be positioned where it’s most needed to capture a wider range of documents more efficiently.
Software Developer Kit
Our Business Solutions Developer Programme (BSDP) is dedicated to give you access to a range of technical information to assist development of applications for our range of business products.
Scanning | |
---|---|
ADF scan speed (colour, A4) | 45 ppm |
ADF scan speed (b/w, A4) | 45 ppm |
Greyscale levels | 256 |
Duplex scanning | Yes |
Colour scanning | Yes |
Optical scanning resolution | 600 x 600 DPI |
Maximum scan size | 216 x 356 mm |
Design | |
---|---|
Touchscreen | Yes |
Display resolution | 1024 x 600 pixels |
Display diagonal | 25.6 cm (10.1″) |
Display | TFT |
Product colour | Black, White |
Built-in display | Yes |
Scanner type | ADF scanner |
Performance | |
---|---|
Scan to | E-mail, FTP, Fax, USB |
Daily duty cycle (max) | 6000 pages |
Scan file formats | PDF, PNG, TIFF |
Light source | RGB LED |
Sensor type | CMOS CIS |
Input capacity | |
---|---|
Auto document feeder (ADF) input capacity | 60 sheets |
Paper handling | |
---|---|
Maximum scan length | 35.6 cm |
Maximum scan width | 21.6 cm |
Auto Document Feeder (ADF) media weight | 27 – 209 g/m² |
Media thickness (min) | 0.04 mm |
ISO A-series sizes (A0…A9) | A4 |
Scanning media types supported | Business Card, Plastic Card, Post Card(JPN) |
Maximum ISO A-series paper size | A4 |
Ports & interfaces | |
---|---|
Standard interfaces | Ethernet, USB 2.0 |
USB version | 2.0 |
USB port | Yes |
Network | |
---|---|
Supported network protocols | TCP/IP (IPv4), DNS, DHCP, SMB, NTP, HTTP, FTP, SFTP, Secure sending (FTPS and SMTPS), WebDAV, LDAPS |
Ethernet LAN | Yes |
Power | |
---|---|
Input voltage | 100-240 V |
AC input frequency | 50 – 60 Hz |
Power consumption (off) | 0.5 W |
Power supply type | AC |
Power consumption (typical) | 40 W |
Weight & dimensions | |
---|---|
Weight | 4.5 kg |
Height | 230 mm |
Depth | 282 mm |
Width | 305 mm |
General | |
---|---|
Product family | imageFORMULA |
Sustainability | |
---|---|
Sustainability certificates | ENERGY STAR |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 20 – 80% |
Operating temperature (T-T) | 10 – 32.5 °C |
Other features | |
---|---|
Compliance certificates | RoHS |
Technical details | |
---|---|
Panel type | TFT |
Logistics data | |
---|---|
Harmonized System (HS) code | 84716070 |
