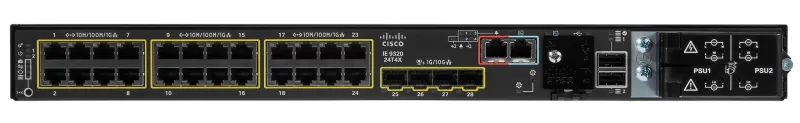

Cisco IE-9320-24T4X-E network switch Managed L2/L3 Black
- Managed L2/L3 SNMP
- Quality of Service (QoS) support
- MAC address table: 16000 entries Switching capacity: 56000 Gbit/s
- Access Control List (ACL)
- Rack mounting
- AC/DC
Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with support for Cisco Cyber Vision and Cisco Secure Network Analytics.
| Management features | |
|---|---|
| MIB support | Y |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Installed SFP+ modules quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 1024 |
| VLAN support | Yes |
| Flow control support | Yes |
| Spanning tree protocol | Yes |
| Policy-based routing | Yes |
| Data transmission | |
|---|---|
| Forwarding rate | 28000 Mpps |
| Switching capacity | 56000 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Management protocols | SNMP |
| Design | |
|---|---|
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Flash memory | 8000 MB |
| Internal memory | 4000 MB |
| Memory type | DRAM |
| Power | |
|---|---|
| Power consumption (typical) | 64 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power source | AC/DC |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 4572 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | -40 – 75 °C |
| Packaging content | |
|---|---|
| User guide | Yes |
