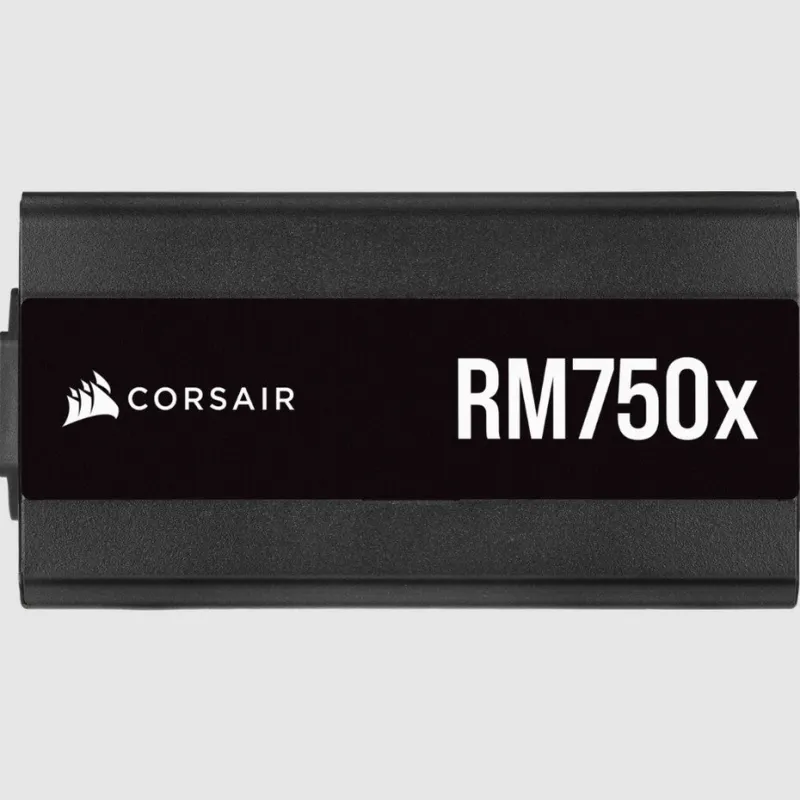

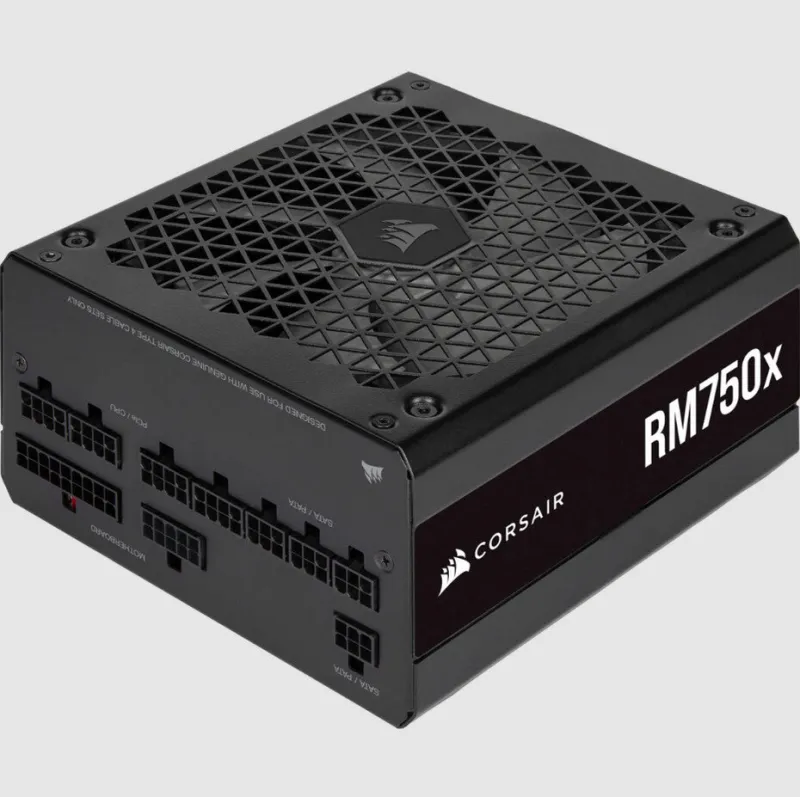

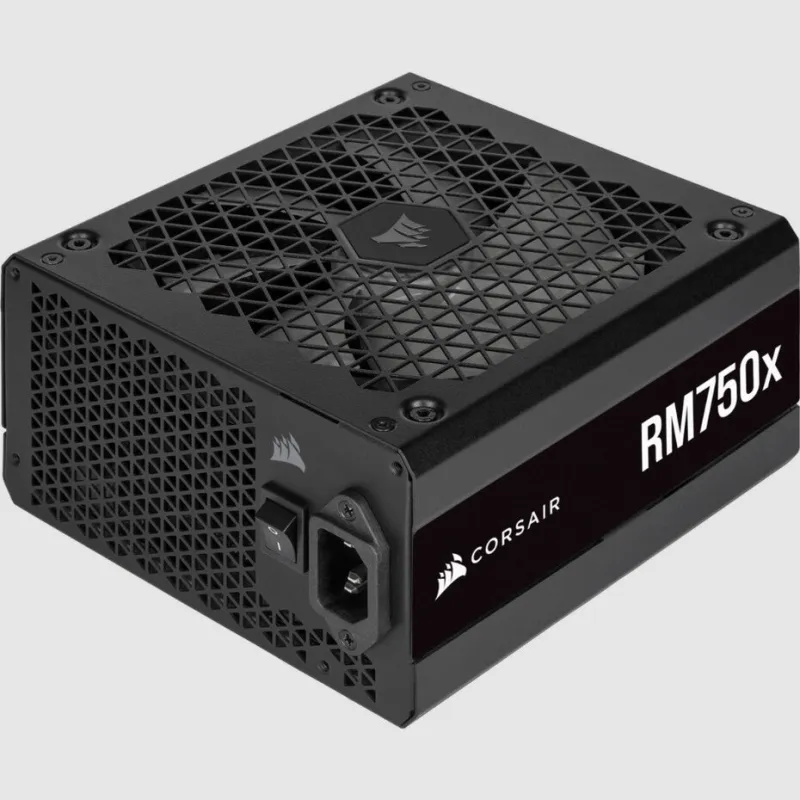

Corsair RM750x power supply unit 750 W 24-pin ATX ATX Black
- Magnetic levitation cooling
- Zero RPM Fan Mode
- Microsoft Modern Standby
MAGNETIC LEVITATION COOLING MEETS HIGH EFFICIENCY
CORSAIR RMx Series fully modular power supplies are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC with the cooling power of potent Magnetic Levitation fans.
135MM MAGNETIC LEVITATION FAN
Utilizes a magnetic levitation bearing and custom engineered rotors for high performance, low bearing noise, and superior reliability.
HIGH EFFICIENCY
With upwards of 90% peak efficiency, RMx produces less noise and less heat, which means less time worrying and more time gaming.
FULLY MODULAR WITH MULTIPLE EPS12V CONNECTORS
Completely modular cables means you only connect the cables your system needs, and the wide range of included cables adds broad compatibility with modern graphics cards and motherboards.
Also compatible with the 12-pin GPU Power Cable for the hottest new GPUs.
ZERO RPM FAN MODE
At low and medium loads the cooling fan switches off entirely for near-silent operation, but once the action picks up, the fan activates, ensuring critical component temps stay in check.
TECHNOLOGY AND RELIABILITY
For consistent, reliable power and superb electrical performance, each RMx Series power supply features a robust resonant LLC topology with DC-DC conversion, and 105°C rated 100% Japanese capacitors. With precise timings, RMx supports Microsoft Modern Standby, ensuring extremely fast wake-from-sleep times and better low-load efficiency.
CERTIFICATIONS
The Cybenetics organization measures efficiency and noise levels across the PSU’s entire operational range, using more than 1,450 different load combinations.
The “Gold” efficiency rating is defined as ≥87% to <91% (depending on input voltage).
The “A-” noise level test is measured in those same configurations to be ≥25 dBA & <30 dBA under noise data averaging.
TEN-YEAR WARRANTY
Ten-year warranty backed by the CORSAIR global technical support team.
YOUR BUILD, YOUR WAY
Every fully modular CORSAIR PSU is compatible with a wide range of CORSAIR accessories. From individually sleeved cables in a variety of color combinations to 12-pin micro-fit GPU cables and 12VO motherboard cables, complete your build your way.
| Power | |
|---|---|
| Input current | 10 A |
| AC input frequency | 47 – 63 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX Power connector (24-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of PATA power connectors | 4 |
| Number of SATA power connectors | 10 |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | MLB |
| Noise level | 25 dB |
| EPS version | 2.92 |
| ATX version | 2.4 |
| Supported motherboard form factors | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan diameter | 13.5 cm |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.5 kg |
| Height | 86 mm |
| Depth | 160 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 3.55 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
