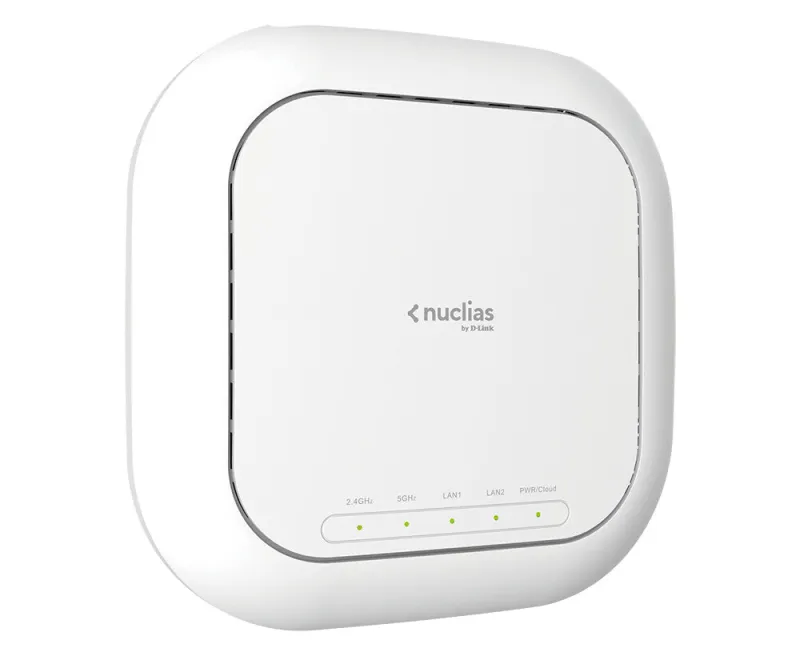

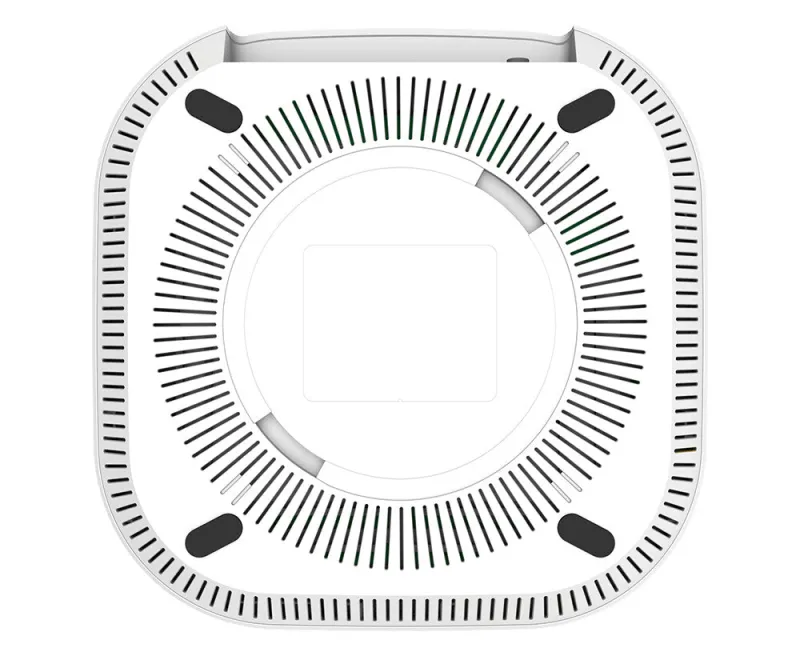

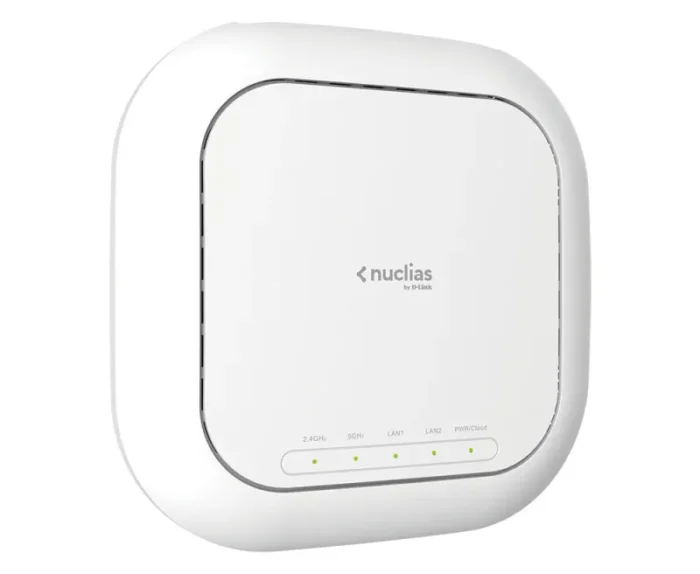

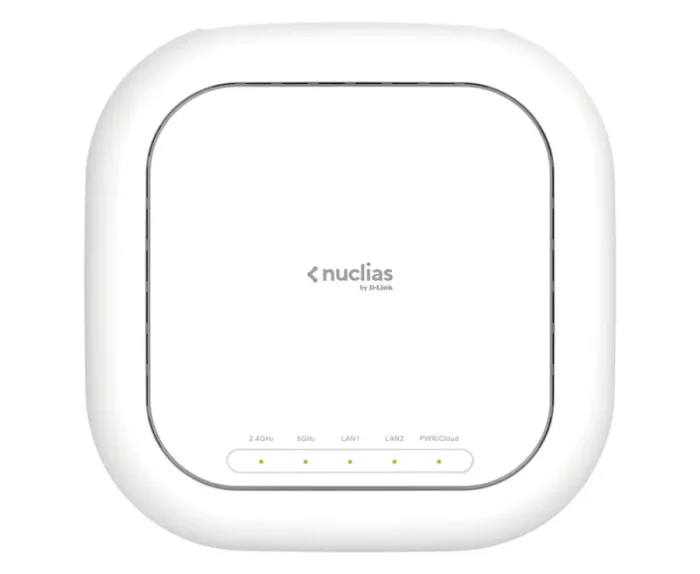

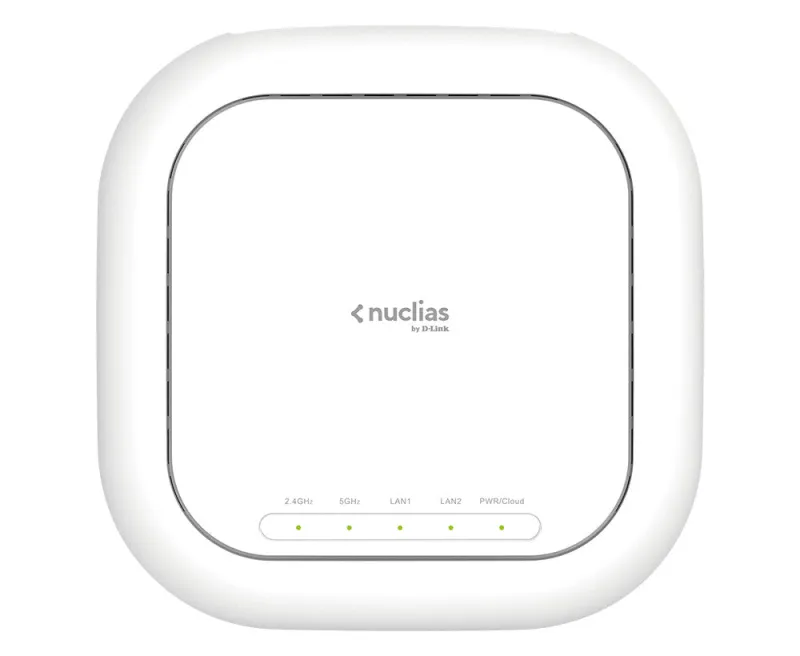

D-Link DBA-2520P wireless access point 1900 Mbit/s White Power over Ethernet (PoE)
- Zero-Touch Deployment
- Cloud Management
- 99.9% Service Level Agreement (SLA)
- Intuitive Interface
- Traffic Reporting & Analytics
- Searchable & Auditable Event & Change Logs
- Power-over-Ethernet
- Multi-Tenant & Role-Based Administration
- Authentication via Customizable Captive Portal, 802.1x and RADIUS Server, with Social Login
Cloud Networking, Refreshed
The DBA-2520P Access Point (AP) is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of IT infrastructure as simple and hassle-free as possible.
Built for Heavy Workloads
The DBA-2520P delivers high-speed wireless AC (Wave 2) connection reliably, with maximum wireless signal rates of up to 1.9Gbps, and 3 x 3 MIMO (three spatial streams). Performance is further optimized via the Nuclias Cloud platform which adjusts the DBA-2520P’s channel selection, transmission power, and maximum number of client connections.
Advanced Management & Security
The Nuclias Cloud interface gives lets admins easily manage Layer-2 features, such as VLANs and Spanning Tree Protocol (STP). With SSID isolation, MAC address filtering, and end-to-end encryption, this is a versatile solution for those seeking easy configuration, without added complexities.
Full PoE Support
The DBA-2520P Access Point supports Power over Ethernet (IEEE 802.3at standard) for its Gigabit LAN port. Power over Ethernet greatly simplifies the installation of compatible devices such as VoIP phones and IP cameras in remote locations that lack easy access to a power outlet.
| Features | |
|---|---|
| Transmitting power | 25 dBmW |
| Flow control support | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1299 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate | 1900 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Number of SSID supported | 16 |
| MAC address filtering | Yes |
| Security algorithms | SSID, WPA, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-PSK |
| Protocols | |
|---|---|
| DHCP server | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (max) | 19.68 W |
| Power consumption (typical) | 16.92 W |
| Output current | 2.5 A |
| Output voltage | 12 V |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Ceiling, Table, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 4 dBi |
| Antennas quantity | 2 |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Certificates | |
|---|---|
| Certification | CE B, FCC B, UL, IC B |
| Weight & dimensions | |
|---|---|
| Weight | 811 g |
| Height | 50 mm |
| Depth | 223.8 mm |
| Width | 224.5 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -20 – 65 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
