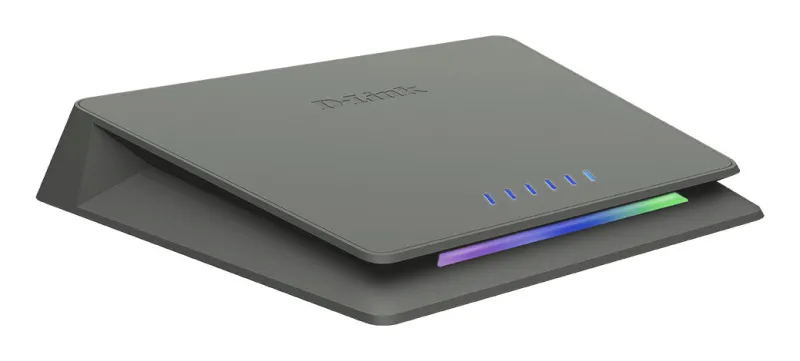

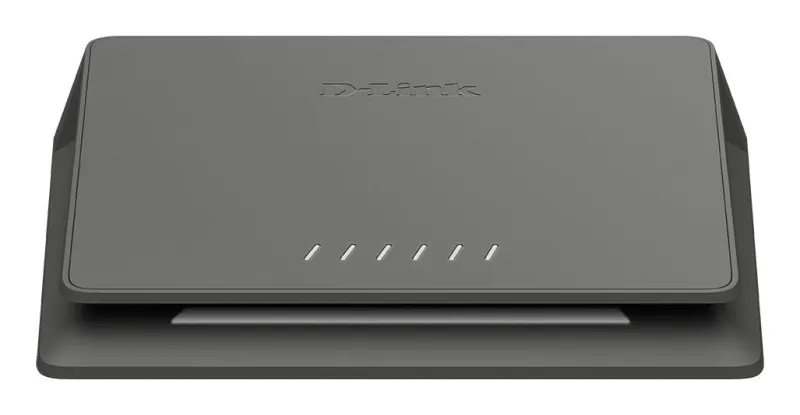

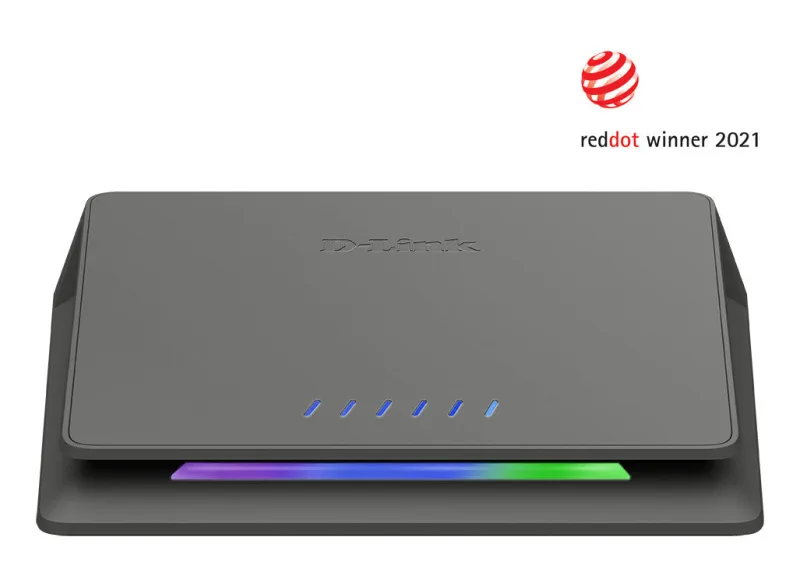

D-Link DMS‑106XT 6-Port Multi-Gigabit Unmanaged Switch
- Turbo mode for ultra low latency and QoS
- x1 10 Gigabit Ethernet port
- x5 2.5 Gigabit Ethernet ports
- Plug and play
- Multicoloured LED
- Aluminium housing and silent operation
Enjoy reliable 10 Gigabit wired Ethernet.
Enjoy an ultra-fast 10-Gigabit uplink, five 2.5-Gigabit ports, Turbo Mode for port-based QoS prioritisation and multicoloured LED lighting, allowing you to eliminate network bottlenecks to maximise performance and throughput to your network.
Turbo Mode
Ultra-low latency and port-based QoS prioritisation for uninterrupted online gaming and 4K streaming
Plug and play
Ready to perform right out of the box with no configuration required
Multicoloured LED
Conveniently indicates Turbo Mode status
Silent Operation
Fanless design for a noise-free working environment that enhances reliability
Metal Casing
Premium gunmetal grey, aluminium alloy housing
Multi-Gigabit
x1 10G and x5 2.5G Multi-Gigabit ports for high data rate speeds
Power Efficiency
Low power consumption design
QoS Magenement
Quality of Service for uninterrupted connections
Multi-Gigabit fast connectivity.
The 10-Gigabit uplink provides a high-bandwidth connection to your network core or network-attached storage (NAS) device, allowing users to access network resources and transfer large multimedia files at lightning-fast speeds. It comes with x5 2.5-Gigabit ports for maximum throughput and performance – ideal for enjoying unrestricted Wi-Fi 6 devices, high-end gaming computers and workstations.
Boost network performance with Turbo Mode.
Simply press the Turbo Mode button when you’re ready for port-based QoS prioritisation for ultra low latency during critical operations. Experience large multimedia file transfers and high quality video calls running at maximum network speeds every time.
Designed for advanced home and office-grade networks.
With x1 10G port and x5 2.5G ports, the switch is fast and versatile enough to handle large multimedia file transfers to-and-from a storage server with ease, and it keeps your Wi-Fi 6 router and AP communications unrestricted. And the premium gunmetal aluminium housing features a fanless design for enhanced reliability, silent operations, and low power consumption.
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| 10G Ethernet (copper) ports quantity | 1 |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Network | |
|---|---|
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
|---|---|
| Store-and-forward | Yes |
| Switching capacity | 45 Gbit/s |
| MAC address table | 4000 entries |
| Design | |
|---|---|
| LED indicators | Activity, Link, Power |
| Housing material | Aluminium |
| Product colour | Grey |
| Stackable | No |
| Rack mounting | No |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 489941 h |
| Fanless | Yes |
| Power | |
|---|---|
| Power consumption (max) | 10.6 W |
| Input current | 1.5 A |
| DC input voltage | 12 V |
| AC input voltage | 100 – 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Heat dissipation | 36.17 BTU/h |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 680 g |
| Height | 33 mm |
| Depth | 163 mm |
| Width | 217 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Certification | FCC, RCM, BSMI, VCCI |
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
