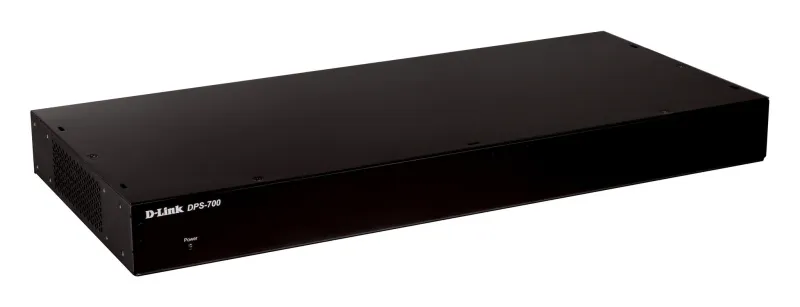

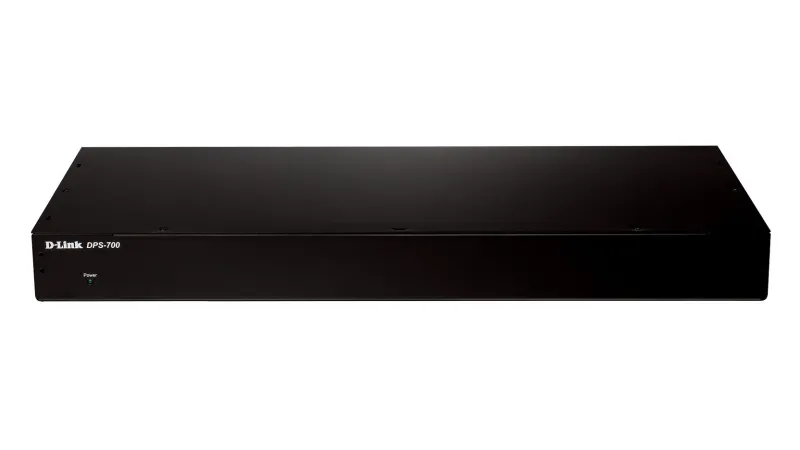

D-Link DPS-700 network switch component Power supply
- Redundant Power Supply keeps your switch online in case of Power Supply Failure
- 1+1 PoE Budget, allowing you to extend your PoE budget by 370 Watts on supported switches
- Rack Mountable for ease of installation
The combination of D-Link’s fully managed switch line and DPS Series of Redundant Power Supplies enables today’s business networks with unmatched flexibility, performance, scalability, and availability. When paired with a supported D-Link switch, the DPS-700 provides uninterrupted fail-over in the unlikely event of a mechanical power supply failure. Additionally, the DPS-700 supports a 1+1 power budget allowing you to double the PoE budget on supported switches.
| Features |
| Compatibility |
DGS-1510-52XMPDGS-1520-28MPDGS-1520-52MPDGS-3120-48PCDGS-3120-24PCDGS-3130-30PS/SIDGS-3130-54PS/SIDGS-3420-28PCDGS-3420-52PCDGS-3620-28PCDGS-3620-52PCDGS-3630-28PCDGS-3630-52PC |
| Mean time between failures (MTBF) |
624961 h |
| LED indicators |
Yes |
| Product colour |
Black |
| Product type |
Power supply |
| Power |
| Maximum current |
7.5 A |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
90 – 264 V |
| Total power |
589 W |
| Certificates |
| Certification |
ULCULFCC Class BCE |
| Safety |
UL 60950 3rd Edition, CSA 22.2 NO.234, EN 60 950 |
| Operational conditions |
| Operating relative humidity (H-H) |
5 – 95% |
| Storage temperature (T-T) |
-40 – 85 °C |
| Operating temperature (T-T) |
0 – 65 °C |
| Weight & dimensions |
| Weight |
3.7 kg |
| Height |
50 mm |
| Depth |
196 mm |
| Width |
195 mm |
| Packaging data |
| Package weight |
5.6 kg |
| Package height |
132 mm |
| Package depth |
559 mm |
| Package width |
344 mm |
| Logistics data |
| Shipping (inner) case length |
57.7 cm |
| Shipping (inner) case width |
42.4 cm |
| Shipping (inner) case height |
37.6 cm |
| Shipping (inner) case net weight |
16.8 kg |
| Products per shipping (inner) case |
3 pc(s) |
| Pallet gross weight (air) |
238.4 kg |
| Master (outer) cases per pallet (air) |
12 pc(s) |
| Products per pallet (air) |
36 pc(s) |
| Pallet gross length |
120 cm |
| Pallet gross width |
100 cm |
| Pallet height (air) |
126.3 cm |
| Pallet gross weight (sea) |
384 kg |
| Master (outer) cases per pallet (sea) |
20 pc(s) |
| Products per pallet (sea) |
60 pc(s) |
| Pallet height (sea) |
2.02 m |
| Shipping (inner) case gross weight |
18.2 kg |
| Harmonized System (HS) code |
85177900 |
