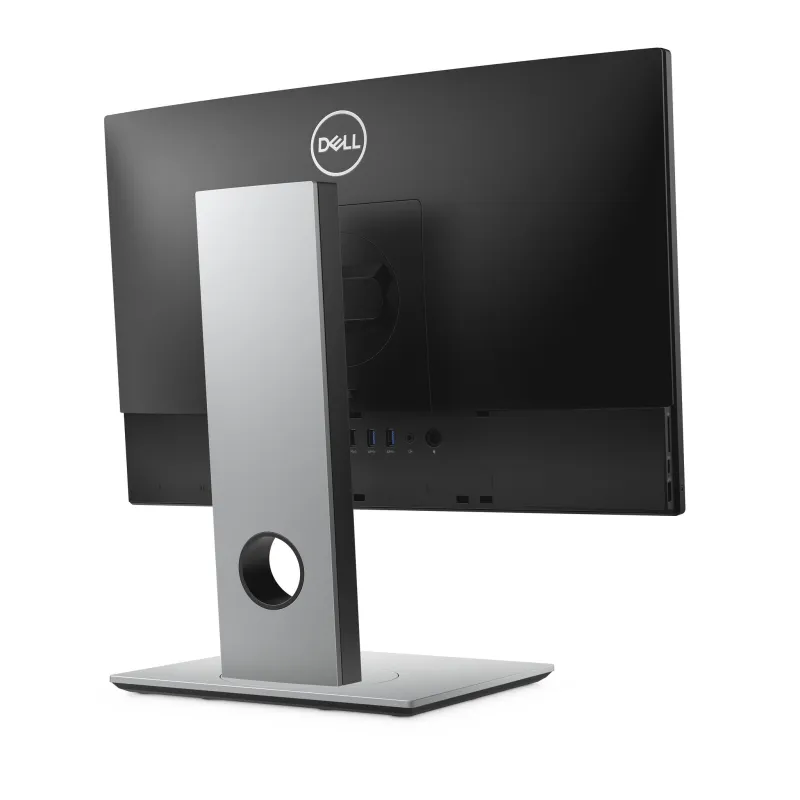

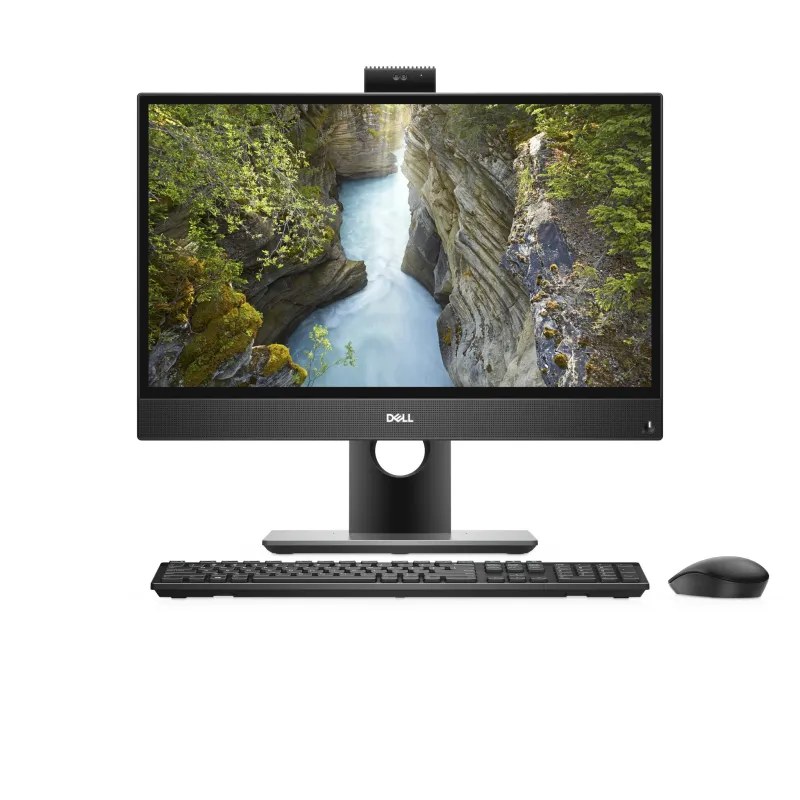

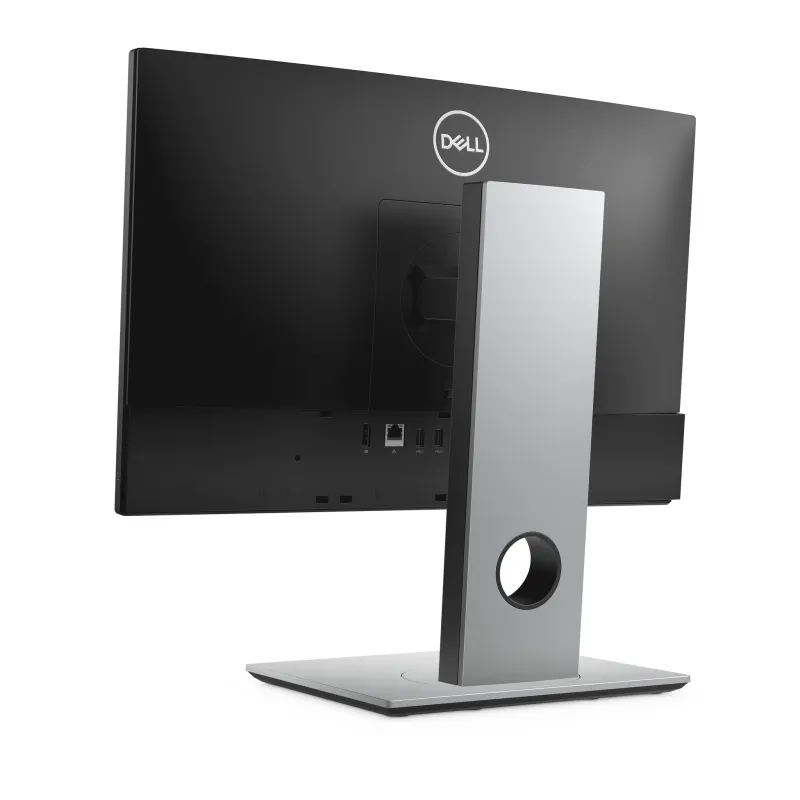

DELL OptiPlex 3280 Intel® Core™ i5 i5-10500T 54.6 cm (21.5″) 1920 x 1080 pixels All-in-One PC 8 GB DDR4-SDRAM 256 GB SSD Windows 10 Pro Wi-Fi 6 (802.11ax) Black
- Windows 10 Pro 64-bit
- Intel Core i5-10500T (12MB Cache, 2.3GHz)
- 54.6 cm (21.5″) Full HD 1920 x 1080 WVA
- 8GB DDR4-SDRAM & 256GB SSD
Sustainably built All-in-One, now with a larger 22-inch display, that delivers enhanced security in a space-saving design. With 10th Gen Intel processors.
| Display | |
|---|---|
| Pixel pitch | 0.24 x 0.24 mm |
| Panel type | WVA |
| Display brightness | 250 cd/m² |
| Native aspect ratio | 16:9 |
| HD type | Full HD |
| Touchscreen | No |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5″) |
| Processor | |
|---|---|
| Configurable TDP-down | 25 W |
| Configurable TDP-down frequency | 1.7 GHz |
| Processor cache | 12 MB |
| Processor frequency | 2.3 GHz |
| Processor boost frequency | 3.8 GHz |
| Processor cores | 6 |
| Processor model | i5-10500T |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory layout (slots x size) | 1 x 8 GB |
| Memory clock speed | 2666 MHz |
| Memory slots type | SO-DIMM |
| Memory slots | 2 |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Optical drive type | No |
| SSD performance class | 35 |
| SSD form factor | M.2 |
| SSD interface | PCI Express |
| NVMe | Yes |
| SSD capacity | 256 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 256 GB |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| Maximum on-board graphics card resolution | 4096 x 2304 pixels |
| On-board graphics card model | Intel® UHD Graphics 630 |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| Audio | |
|---|---|
| Audio chip | Realtek ALC3246 |
| Built-in microphone | Yes |
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Camera | |
|---|---|
| Built-in camera | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.1 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Antenna type | 2×2 |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| Number of USB ports with PowerShare support | 1 |
| PowerShare | Yes |
| Number of side audio ports | 1 |
| Number of rear audio ports | 1 |
| Number of rear USB ports | 4 |
| Combo headphone/mic port | Yes |
| Audio output | Yes |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Product colour | Black |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Product type | All-in-One PC |
| Software | |
|---|---|
| Trial software | Microsoft Office License Included 30 day |
| Operating system language | Multilingual |
| Windows 11 free upgrade | Yes |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 10 Pro |
| Processor special features | |
|---|---|
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Idle States | Yes |
| Embedded options available | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Clear Video Technology | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| CPU configuration (max) | 1 |
| Power | |
|---|---|
| AC adapter input voltage | 100 – 240 V |
| AC adapter frequency | 50 – 60 Hz |
| AC adapter power | 130 W |
| General | |
|---|---|
| Product family | OptiPlex |
| Product series | 3000 |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 4.68 kg |
| Height (without stand) | 329.4 mm |
| Depth (without stand) | 54.5 mm |
| Width (without stand) | 497.9 mm |
| Width (with stand) | 497.9 mm |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 – 10668 m |
| Operating altitude | 0 – 3048 m |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | 10 – 35 °C |
| Packaging content | |
|---|---|
| Input device model | MS116 + KB216 |
| Keyboard connectivity | Wired |
| Keyboard included on selected markets only | Yes |
| Mouse included on selected markets only | Yes |
| Mouse connectivity | Wired |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Other features | |
|---|---|
| Stand type | Height adjustable stand |
