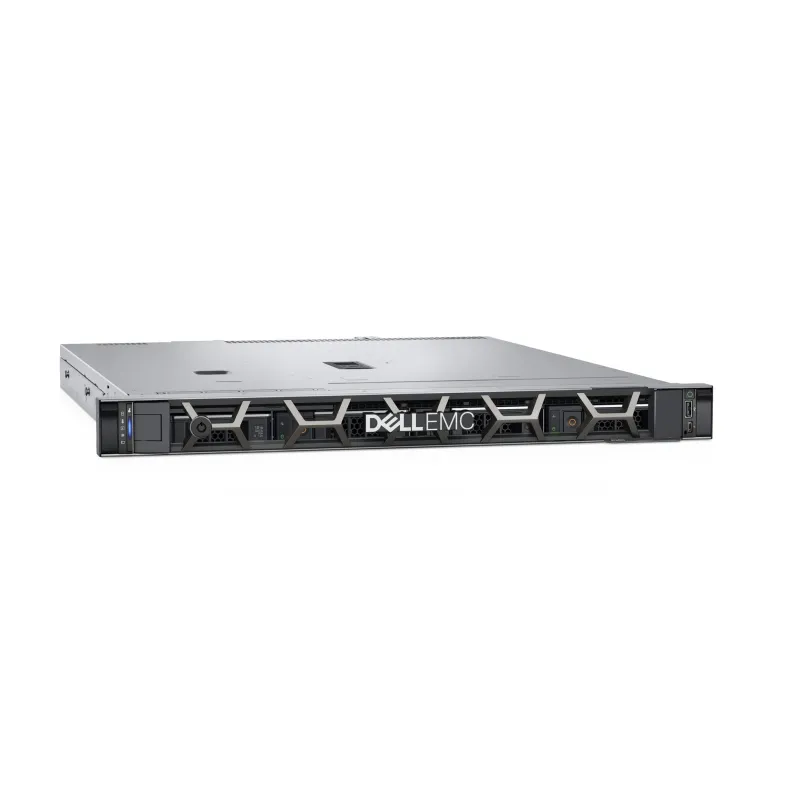

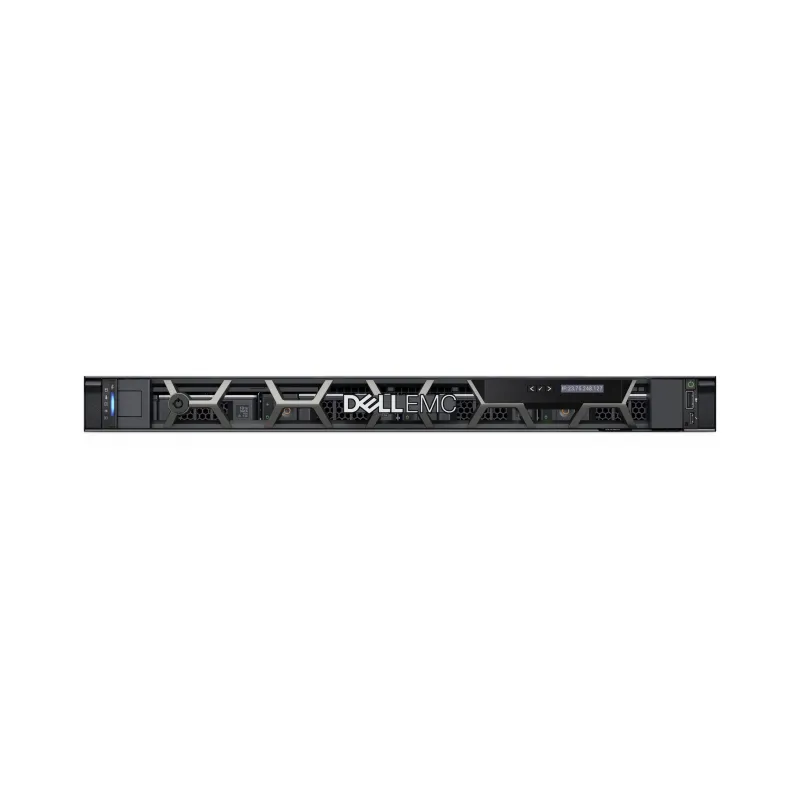

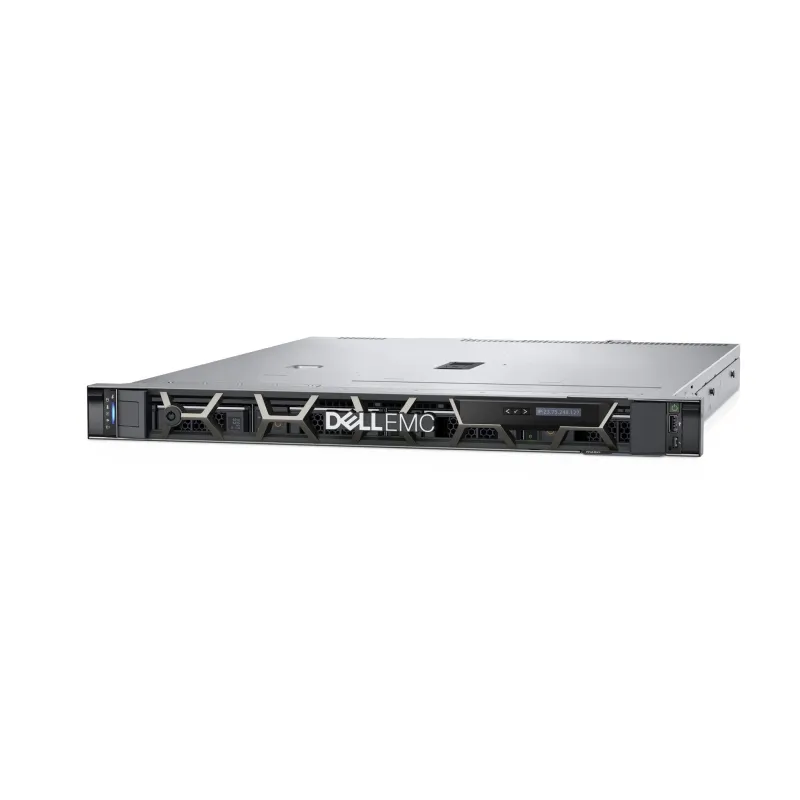

DELL PowerEdge R250 server 1 TB Rack (1U) Intel Xeon E E-2314 2.8 GHz 8 GB DDR4-SDRAM 450 W
- No OS
- Intel Xeon E-2314 (8MB Cache, 2.8GHz)
- 8GB (3200MHz) DDR4-SDRAM (1 x 8) & 1000GB HDD
- iDRAC9 Express 15G
Deliver the value of data
Affordably address common business workloads while delivering powerful compute with an entry-level 1U rack server.
| Processor |
| Execute Disable Bit |
Yes |
| Idle States |
Yes |
| Number of processors installed |
1 |
| Processor cache |
8 MB |
| Processor boost frequency |
4.5 GHz |
| Processor frequency |
2.8 GHz |
| Processor model |
E-2314 |
| Processor family |
Intel Xeon E |
| Processor manufacturer |
Intel |
| Memory |
| Maximum internal memory |
32 GB |
| Memory slots |
4x DIMM |
| ECC |
Yes |
| Memory clock speed |
3200 MHz |
| Memory layout (slots x size) |
1 x 8 GB |
| Buffered memory type |
Unregistered (unbuffered) |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
8 GB |
| Storage |
| Optical drive type |
No |
| RAID support |
No |
| HDD size |
3.5″ |
| HDD speed |
7200 RPM |
| HDD interface |
SATA |
| HDD capacity |
1 TB |
| Number of HDDs installed |
1 |
| Total storage capacity |
1 TB |
| Network |
| LAN controller |
Broadcom 5720 |
| Ethernet LAN |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet interface type |
Gigabit Ethernet |
| Ports & interfaces |
| VGA (D-Sub) ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Design |
| Rack rails |
Yes |
| Product colour |
Black |
| Chassis type |
Rack (1U) |
| Performance |
| Remote administration |
iDRAC9 Express 15G |
| Software |
| Compatible operating systems |
Canonical® Ubuntu® Server LTSCitrix® HypervisorMicrosoft® Windows Server® with Hyper-VRedHat® Enterprise LinuxSUSE® Linux Enterprise ServerVMware® ESXi® |
| Operating system installed |
No |
| Processor special features |
| CPU configuration (max) |
1 |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel 64 |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Power |
| Power cable current |
10 A |
| Power cable connector 2 |
C14 coupler |
| Power cable connector 1 |
C13 coupler |
| Power cable length |
2 m |
| Power supply |
450 W |
| General |
| Product family |
PowerEdge |
| Carbon footprint |
| Total carbon footprint (kg of CO2e) |
2100 |
| Total carbon emissions, standard deviation (kg of CO2e) |
935 |
| Carbon emissions, manufacturing (kg of CO2e) |
505 |
| Carbon emissions, logistics (kg of CO2e) |
110 |
| Carbon emissions, energy usage (kg of CO2e) |
1470 |
| Carbon emissions, end-of-life (kg of CO2e) |
17 |
| Total carbon emissions, w/o use phase (kg of CO2e) |
632 |
| PAIA version |
1.3.2, 2022 |
| Logistics data |
| Harmonized System (HS) code |
84714100 |
| Weight & dimensions |
| Weight |
12.5 kg |
| Height |
42.8 mm |
| Width |
482 mm |
