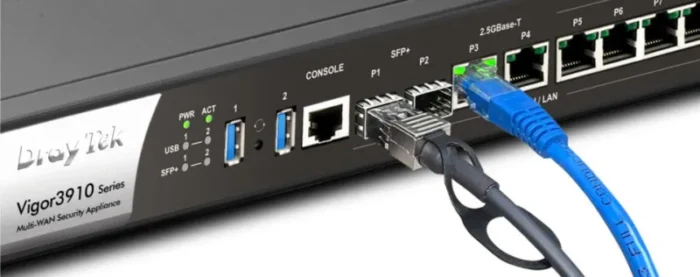

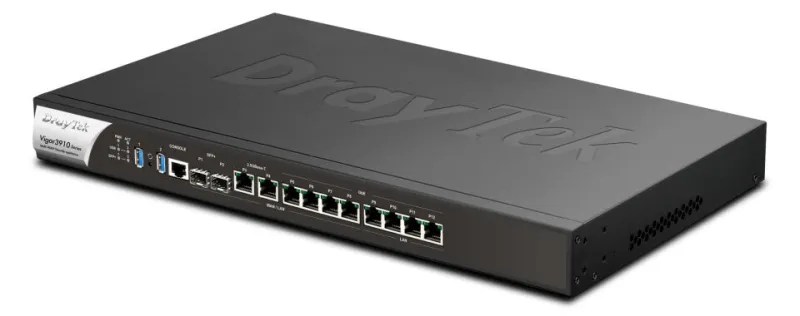

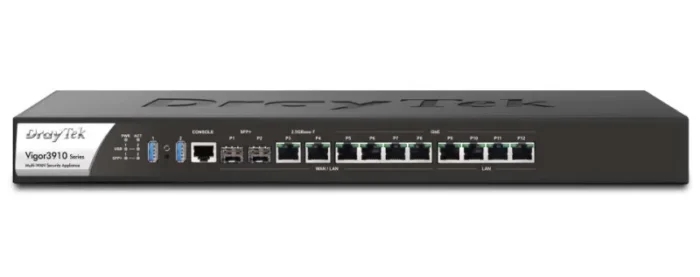

DrayTek Vigor 3910 wired router 10 Gigabit Ethernet Black, White
- Powerful Enterprise Internet Gateway
- High-Performance VPN Concentrator
- Flexible WAN Architecture
- Switchable WAN & LAN Ports
- High Availability
- Manage Multiple Networks
The Vigor 3910 is a Multi-WAN VPN Router designed for high performance and capable of handling the requirements of large and complex networks, with applications including Remote Access, Firewalling, Load-Balancing and Failover.
Featuring 12 LAN and WAN interfaces in total, 4 dedicated LAN ports and 8 switchable ports that can operate as LAN or WAN ports to fit your network requirements.
With up to 9Gb/s of NAT & Firewall throughput, the Vigor 3910 is suitable for the most demanding and bandwidth intensive SME applications. Each of the WAN ports on the Vigor 3910 can be grouped together to provide Load Balancing or operate as Failover or Backup WAN connections.
Based on the familiar DrayOS platform, the Vigor 3910 combines high performance and capacity with DrayTek’s traditional ease of use and comprehensive feature set.
For multi-tenant or departmental flexibility, the Vigor3910 will support multiple LAN IP subnets, together with VLAN capabilities and user management, providing access to WAN resources only to the appropriate users or departments, as well as maintaining infrastructure efficiency.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Policy-based routing | Yes |
| Traffic control | Yes |
| Multicast support | Yes |
| VLAN support | Yes |
| Throughput | 9 Gbit/s |
| Forwarding rate | 3300 Mpps |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Networking standards | IEEE 802.1Q |
| Mobile network | |
|---|---|
| Mobile network generation | Not supported |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 2 |
| Installed SFP+ modules quantity | 2 |
| Ethernet LAN (RJ-45) ports | 8 |
| Protocols | |
|---|---|
| Routing protocols | BGP, OSPFv2, RIP-1, RIP-2, RIPng |
| DMZ support | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Security | |
|---|---|
| VPN tunnels quantity | 500 |
| Network address translation (NAT) | Yes |
| DoS attack prevention | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| Firewall | Yes |
| Security algorithms | HTTPS, SSH |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Features | |
|---|---|
| Built-in processor | Yes |
| Design | |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black, White |
| Power | |
|---|---|
| AC input voltage | 220 – 240 V |
| Power consumption (typical) | 35 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -10 – 55 °C |
| Operating temperature (T-T) | 0 – 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.23 kg |
| Height | 45 mm |
| Depth | 285 mm |
| Width | 443 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
