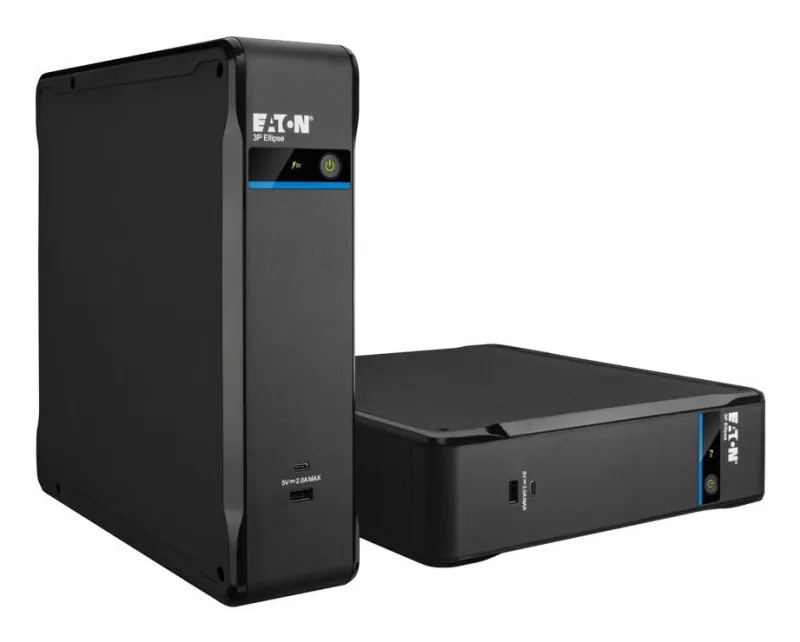

Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.3 kVA 840 W 8 AC outlet(s)
- Convenient extra-flat design for easy installation in any office environment
- High performance surge-protection device compliant with IEC 61643-11 standard
- 8 outlets to connect your PC + peripherals
- 2 USB charging ports Card slot for optional Cloud connection
- HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
- Easy to replace battery helps to extend UPS service life
| Features |
| Auto shut-off |
Yes |
| Surge protection |
Yes |
| Noise level |
25 dB |
| Output power factor |
0.6 |
| Efficiency (ECO mode) |
97% |
| Efficiency |
97% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Power consumption (average operating) |
26 W |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
284 V |
| Output operation voltage (min) |
161 V |
| Input frequency |
46/70 Hz |
| Input operation voltage (max) |
284 V |
| Input operation voltage (min) |
161 V |
| Waveform |
Stepwise |
| Output power |
840 W |
| Output power capacity |
1.3 kVA |
| UPS topology |
Standby (Offline) |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Battery |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Design |
| Display type |
LED |
| Control type |
Buttons |
| Product colour |
Black |
| Form factor |
Tower |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Certificates |
| Certification |
IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3CEUKCAUkrCm |
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
CB, CE, RoHS, WEEE |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Weight & dimensions |
| Weight |
7 kg |
| Height |
305 mm |
| Depth |
312 mm |
| Width |
81 mm |
| Packaging data |
| Package type |
Box |
| Other features |
| Relative humidity |
0 – 95% |
| Nominal input voltage |
220-240 V |
| Input connection type |
C14 |
