Epson EB-L570U 5200 ANSI lumens 3LCD WUXGA (1920×1200) Black, White
- Business Black, White
- 3LCD 5200 ANSI lumens
- Laser 20000 h
- WUXGA (1920×1200) 16:10 2500000:1
- Screen size compatibility: 1270 – 12700 mm (50 – 500″) Number of colours: 1.07 billion colours
- Focus: Manual Zoom capability
- Wi-Fi
- Built-in speaker(s) 10 W
- AC 201 W

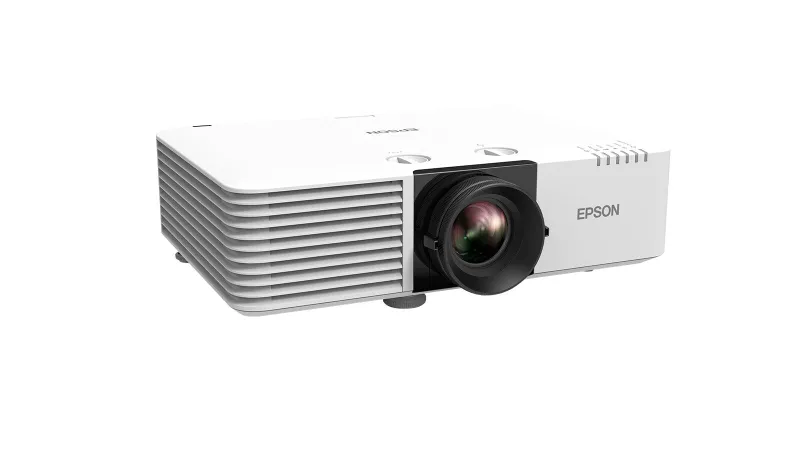

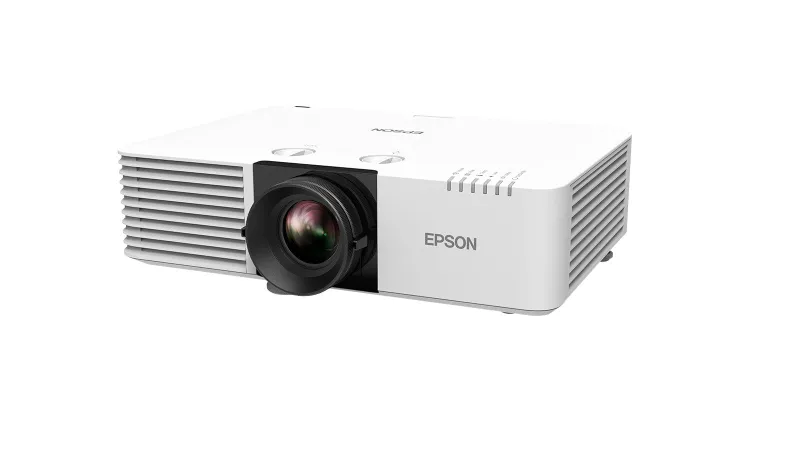

EB-L570U 3LCD laser projector
with 4K enhancement
Enjoy an immersive experience with this brilliant and powerful laser display with 4K enhancement.
True-to-life images
With 3-chip 3LCD technology and 5,200 lumens of colour and white brightness.
4.6 million pixels on screen
WUXGA with 4K enhancement provides visibly smoother and sharper displays at close viewing distances.
Optional external camera
Use the optional ELPEC01 external camera for simplifying multi-projector systems with auto stacking, screen matching or auto blending without a PC.
Versatile connectivity options

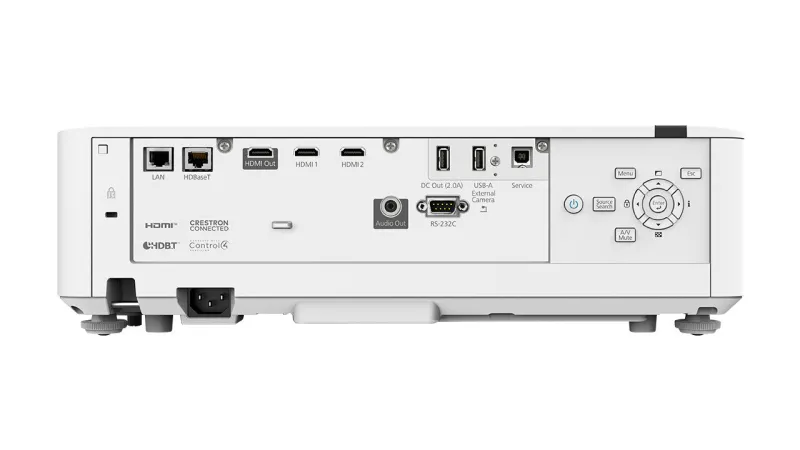

Connect with HDBaseT, 2x HDMI inputs, an HDMI output, RS-232 and control management tools.
Simplified operation and content sharing
Enjoy auto power-on, split screen4 and screen sharing with Epson iProjection®
Customisable brightness modes
Adjust brightness settings to maintain a consistent brightness level over time or to maximise the life of laser light source.
| Projector | |
|---|---|
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -30 – 30° |
| Matrix size | 1.7 cm (0.67″) |
| Number of colours | 1.07 billion colours |
| Projection distance (tele) | 2.4 – 23.8 m |
| Projection distance (wide) | 1.4 – 14.8 m |
| Projection distance | 1.44 – 23.84 m |
| Screen size compatibility | 1270 – 12700 mm (50 – 500″) |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 2500000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | 3LCD |
| Projector brightness | 5200 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 1.35 – 2.20:1 |
| Zoom type | Manual |
| Zoom capability | Yes |
| Aperture range (F-F) | 1.5 – 1.7 |
| Focal length range | 20 – 31.8 mm |
| Focus | Manual |
| Video | |
|---|---|
| 3D | No |
| Full HD | Yes |
| Analog signal format system | Not supported |
| Ports & interfaces | |
|---|---|
| Serial interface type | RS-232C |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDBaseT port | Yes |
| DVI port | No |
| HDMI ports quantity | 3 |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported | Yes |
| Noise level (economic mode) | 23 dB |
| Noise level | 31 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Product colour | Black, White |
| Market positioning | Business |
| Power | |
|---|---|
| AC adapter output voltage | 100 – 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (economy mode) | 199 W |
| Power consumption (max) | 260 W |
| Power consumption (standby) | 2 W |
| Power consumption (typical) | 201 W |
| Power source | AC |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Height | 122 mm |
| Depth | 304 mm |
| Width | 440 mm |
| Weight | 8.3 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Batteries included | Yes |
| Remote control included | Yes |
- manual pdf
