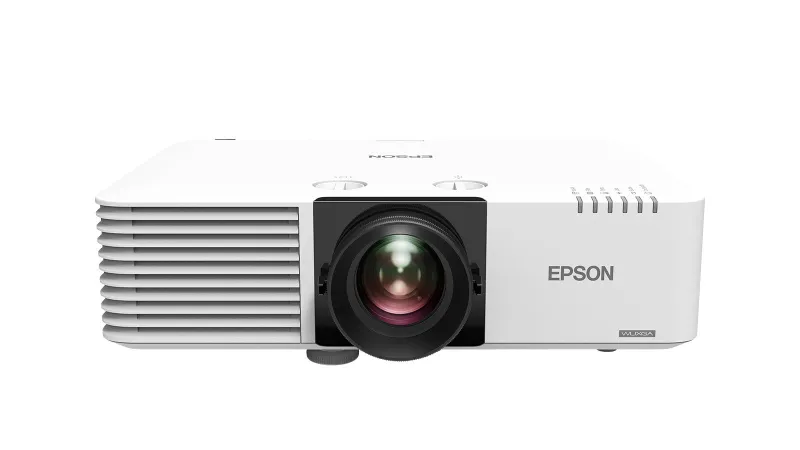

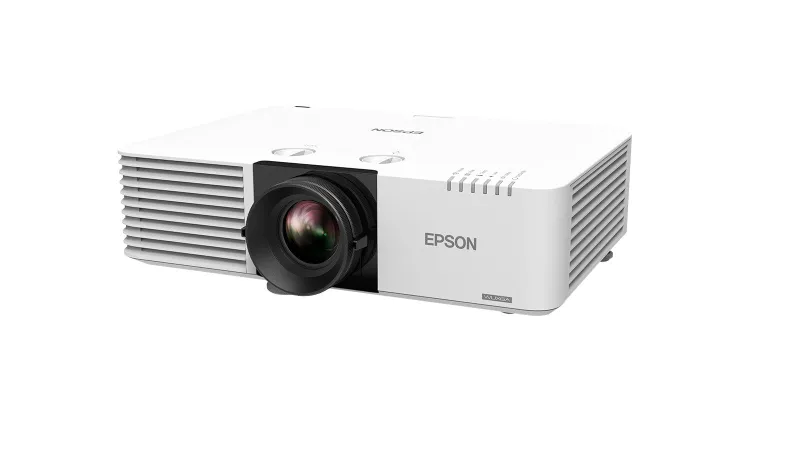

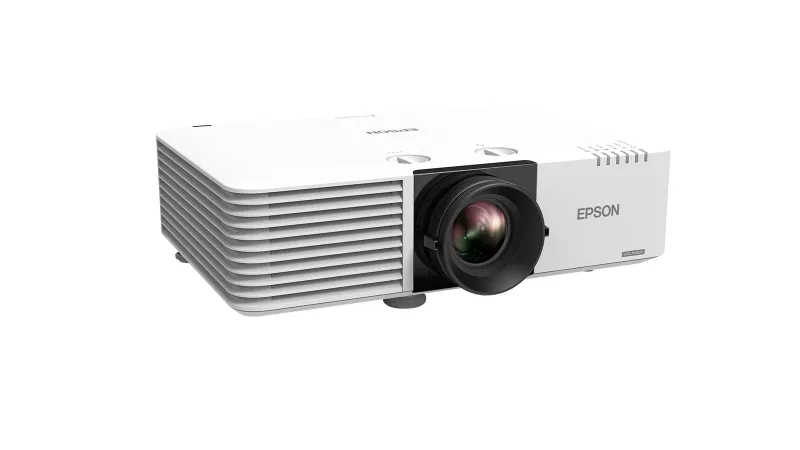

Epson EB-L630U Standard throw projector 6200 ANSI lumens 3LCD WUXGA (1920×1200) White
- 6,200-lumen brightness: Crisp images and bright colours, even in well-lit rooms
- WUXGA resolution: Sharp Full HD images for excellent clarity
- Futureproofed connectivity options: 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
- Easy, flexible installation: Lightweight and compact design with wide lens shift
- Support social distancing: Scalable display size of up to 500 inches
As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L630U delivers even more effective, practical and creative display applications across a number of different industries.
Bright, cost-effective display solutions
Providing bolder, brighter, more engaging and impactful displays even in brightly-lit environments, the EB-L630U offers impressive 6,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means that users can upgrade to laser performance and reliability, with reduced power consumption, without paying a premium. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L630U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.
Enhanced connectivity
This display solution offers many different ways to connect, show multiple sources simultaneously and present wirelessly. The EB-L630U comes equipped with futureproofed connectivity options including HDMI and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, upgraded Miracast, built-in media player and support for Epson’s ELPWP10 wireless presentation system.
| Projector | |
|---|---|
| Keystone correction, horizontal | -30 – 30° |
| Keystone correction, vertical | -30 – 30° |
| Matrix size | 1.7 cm (0.67″) |
| Projector brightness (economic mode) | 4340 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Projection distance (tele) | 2.4 – 23.8 m |
| Projection distance (wide) | 1.4 – 14.8 m |
| Projection distance | 1.44 – 23.84 m |
| Screen size compatibility | 1270 – 12700 mm (50 – 500″) |
| Smart projector | No |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 2500000:1 |
| Projector native resolution | WUXGA (1920×1200) |
| Projection technology | 3LCD |
| Projector brightness | 6200 ANSI lumens |
| Light source | |
|---|---|
| Service life of light source (economic mode) | 30000 h |
| Service life of light source | 20000 h |
| Light source type | Laser |
| Lens system | |
|---|---|
| Throw ratio | 1.35 – 2.2:1 |
| Zoom ratio | 1.6:1 |
| Zoom type | Manual |
| Zoom capability | Yes |
| Aperture range (F-F) | 1.5 – 1.7 |
| Focal length range | 20 – 31.8 mm |
| Focus | Manual |
| Video | |
|---|---|
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection |
| Full HD | Yes |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| PC Audio out | Yes |
| PC Audio in | Yes |
| Serial interface type | RS-232C |
| USB 2.0 Type-B ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| HDBaseT port | Yes |
| DVI port | No |
| HDMI connector type | Full-size |
| HDMI ports quantity | 3 |
| VGA (D-Sub) ports quantity | 2 |
| Network | |
|---|---|
| Miracast | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Smart TV | No |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Password protection | Yes |
| Country of origin | Philippines |
| HDCP | Yes |
| Noise level (economic mode) | 27 dB |
| Noise level | 38 dB |
| Interactive | No |
| Multimedia | |
|---|---|
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Placement | Ceiling, Desktop |
| Product colour | White |
| Market positioning | Presentation |
| Product type | Standard throw projector |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (economy mode) | 258 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 345 W |
| Power source | AC |
| Software | |
|---|---|
| Software support | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 90% |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage temperature (T-T) | -10 – 60 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 12.3 kg |
| Package height | 210 mm |
| Package depth | 565 mm |
| Package width | 540 mm |
| Height | 136 mm |
| Depth | 339 mm |
| Width | 440 mm |
| Weight | 8.4 kg |
| Packaging content | |
|---|---|
| Warranty card | Yes |
| Cables included | AC |
| Manual | Yes |
| WLAN adapter included | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | TCO |
| Logistics data | |
|---|---|
| Products per pallet | 14 pc(s) |
| Products per pallet (UK) | 14 pc(s) |
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Harmonized System (HS) code | 85286200 |
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Supported network protocols | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
