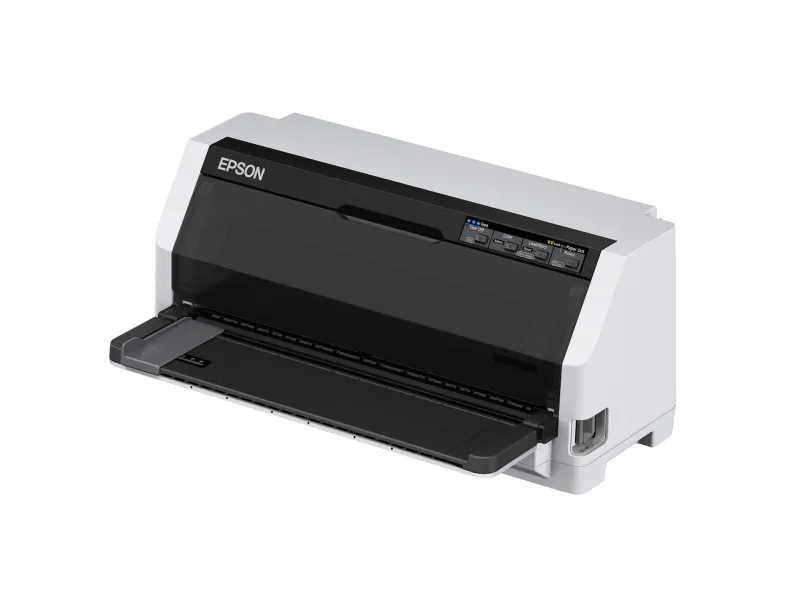

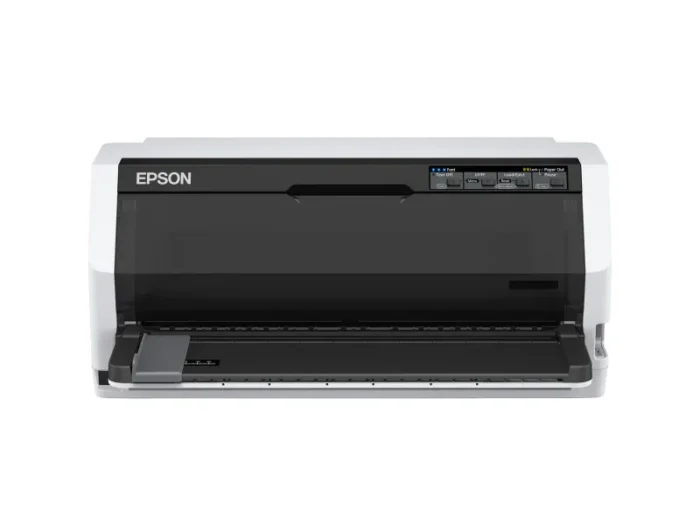

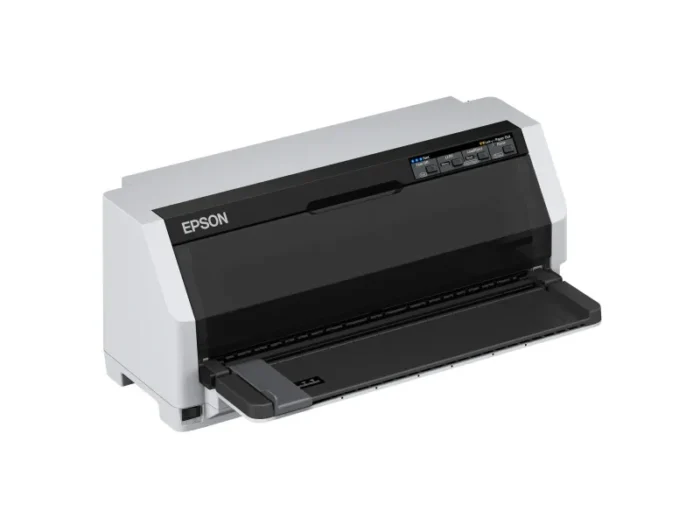

Epson LQ-780 dot matrix printer 360 x 180 DPI 487 cps
- High speed Impressive print speed of 487 cps (10cpi) with 1+6 copies
- Quality The 106 column capacity with 24 pins means greater quality
- Reliable Combined power of print head life and MTBF of 20,000 hours
- Modern design The black and white casing blends comfortably into any work environment
Fast and reliable dot matrix printing with the Epson LQ-780. Its robust nature and modern design fits comfortably into any environment.
Designed with productivity in mind, the LQ-780 is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.
Fast printing:
Print faster and more productively. The LQ-780 prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.
High ribbon yield:
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-780 as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership.
Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, and automatic paper thickness adjustment makes the LQ-780 intuitive to use. This results in greater productivity and less maintenance from down time – essential when producing large amounts of documents and data.
Smart design:
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.
Printing | |
---|---|
Number of characters | 15 |
Character sets | PC437, PC850, PC858, ISO 8859-15, Roman 8, Italic |
Scalable fonts | Roman, Roman T, Sans Serif, Sans Serif H |
Number of scalable fonts | 4 |
Bitmap fonts | Courier, Draft, Prestige, Roman |
Number of bitmap fonts | 11 |
Number of barcode fonts | 8 |
Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E |
Maximum number of copies | 6 copies |
Maximum print speed (LQ) | 366 cps |
Maximum print speed (draft) | 487 cps |
Maximum print speed | 487 cps |
Maximum printing width (columns) | 106 |
Maximum resolution | 360 x 180 DPI |
Colour | No |
Paper handling | |
---|---|
Single sheet thickness range | 0.065 – 0.15 mm |
Multi-part paper thickness range | 0.12 – 0.49 mm |
Continuous paper thickness range | 0.12 – 0.49 mm |
Paper tray media types | Envelopes |
Features | |
---|---|
Country of origin | Indonesia |
Sound pressure level (printing) | 59 dB |
Buffer size | 64 KB |
Product colour | Black, White |
Ports & interfaces | |
---|---|
Standard interfaces | Parallel, USB 2.0 |
Endurance | |
---|---|
Mean time between failures (MTBF) | 35000 h |
Print head life | 400 million characters |
Print head | 24-pin |
Power | |
---|---|
AC input frequency | 50 – 60 Hz |
Power consumption (standby) | 8.3 W |
AC input voltage | 100 – 240 V |
Power consumption (typical) | 46 W |
Operational conditions | |
---|---|
Operating relative humidity (H-H) | 10 – 80% |
Operating temperature (T-T) | 5 – 35 °C |
System requirements | |
---|---|
Windows operating systems supported | Windows 11 x64 |
Server operating systems supported | Windows Server 2003, Windows Server 2022 |
Weight & dimensions | |
---|---|
Weight | 6.7 kg |
Height | 211 mm |
Depth | 301 mm |
Width | 480 mm |
Packaging data | |
---|---|
Package weight | 8.28 kg |
Package height | 350 mm |
Package depth | 590 mm |
Package width | 325 mm |
Quantity per pack | 1 pc(s) |
Other features | |
---|---|
Needles | 24 |
Print technology | Dot matrix |
Logistics data | |
---|---|
Products per pallet | 24 pc(s) |
Products per pallet (UK) | 36 pc(s) |
Pallet gross weight | 0 g |
Pallet weight (UK) | 0 g |
Harmonized System (HS) code | 84433210 |
