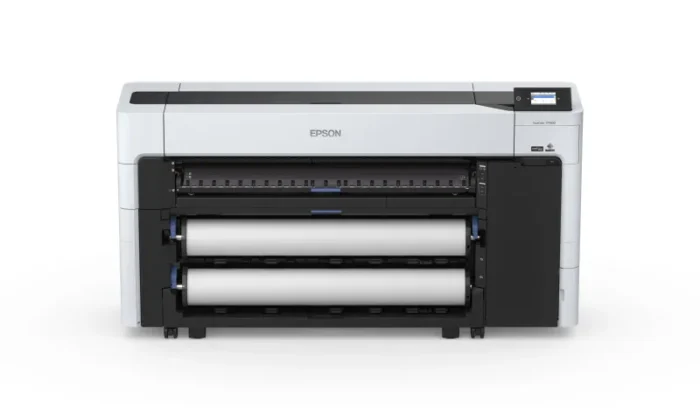

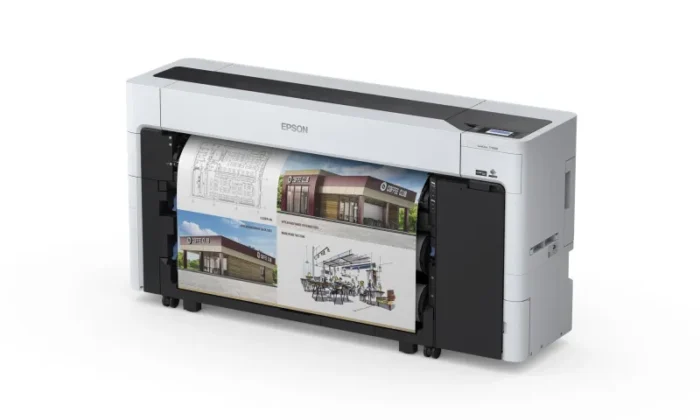

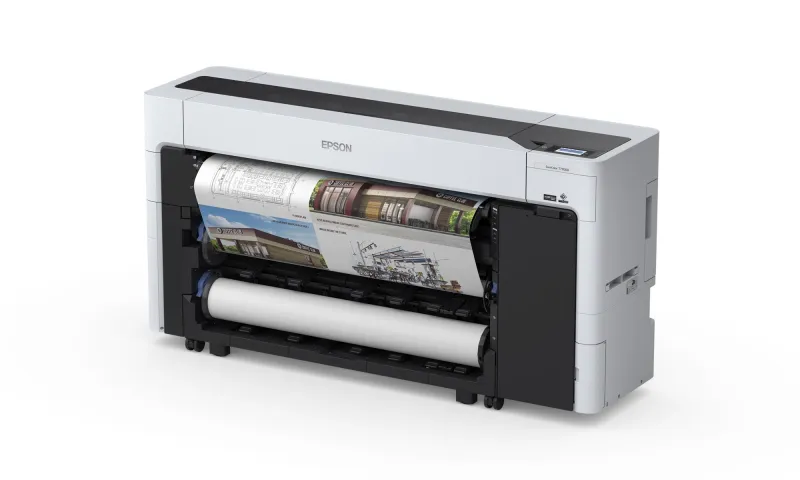

Epson SureColor SC-T7700D large format printer Wi-Fi Inkjet Colour 1200 x 2400 DPI A2 (420 x 594 mm) Ethernet LAN
- Inkjet 1200 x 2400 DPI Colour
- A2 (420 x 594 mm) Printing colours: Black, Cyan, Magenta, Matte black, Photo black, Red, Yellow
- USB port Ethernet LAN Wi-Fi
44-inch technical printer
This fully integrated, technical printing solution offers high-productivity, smart features, document security and easy operation.
The SureColor SC-T7700D is a technical printer that’s been designed for various applications, including: precise line definition, colour accuracy, and security for AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precision, colour replication, and security for public sector printing.
Complete document solution
The SC-T7700D includes enhanced IT and security features. This is particularly useful for designers, architects and construction companies who print detailed plans and drawings, while protecting confidential documents. Collaboration is further improved, and workloads managed more efficiently, through central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers.
Fast and feature-rich
High productive output speeds are achieved with the PrecisionCore MicroTFP printhead, Variable Sized Droplet Technology and Nozzle Verification Technology.
Compact footprint – versatile design
The SureColor SC-T7700D design is both contempary and compact. It fits into most working environments because of its flat and unobtrusive design, which is space saving and practical.
Highly detailed prints, every time
Whether printing detailed architectural, engineering and construction (AEC) CAD prints, or POS posters for retail, the SureColorSC-T7700D’s output is both precise and vibrant. The printer features an Epson PrecisionCore MicroTFP printhead and 6-colour UltraChrome XD3 all pigment inks, which include a new red ink to broaden the overall colour gamut.
Business solutions
The SureColor SC-T7700D is supported by industry-leading software providers for production enhancement and managed print systems.
| Printing | |
|---|---|
| Colour management | ICC Profile |
| Print head nozzles | 1.600 nozzles per colour |
| Print speed (normal quality, A1) | 120 pph |
| Printing colours | Black, Cyan, Magenta, Matte black, Photo black, Red, Yellow |
| Page description languages | ESC/P-R, HP-GL/2, PDF 1.7, PostScript 3 |
| Number of print cartridges | 6 |
| Maximum resolution | 1200 x 2400 DPI |
| Colour | Yes |
| Print technology | Inkjet |
| Copying | |
|---|---|
| Copying | No |
| Scanning | |
|---|---|
| Scanning | No |
| Paper handling | |
|---|---|
| Borderless printing width | 10″ (25.4cm) Roll, 17″ (43.1cm) Roll, 24″ (60.9cm) Roll, 36″ (91.4cm) Roll, 44″ (111.8cm) Roll |
| Auto take-up reel | Yes |
| Maximum roll width | 111.8 cm |
| Media thickness | SingleSheet0.1 |
| ISO B-series sizes (B0…B9) | B0, B1 |
| ISO A-series sizes (A0…A9) | A0, A2, A3, A4, A5 |
| Paper tray media types | Roll |
| Maximum print size | A2 (420 x 594 mm) |
| Ports & interfaces | |
|---|---|
| Mobile printing technologies | Apple AirPrint |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Direct printing | Yes |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Country of origin | Indonesia |
| Sound pressure level (printing) | 6.6 dB |
| Sound power level (standby) | 6.6 dB |
| Internal memory | 4096 MB |
| Control type | Touch |
| Display diagonal | 10.9 cm (4.3″) |
| Colour display | Yes |
| Display | LCD |
| Built-in display | Yes |
| Product colour | Black, White |
| Power | |
|---|---|
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 70 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Weight & dimensions | |
|---|---|
| Weight | 155 kg |
| Height | 975 mm |
| Depth | 499 mm |
| Width | 1848 mm |
| Packaging data | |
|---|---|
| Manual | Yes |
| Cartridge(s) included | Yes |
| General | |
|---|---|
| Product family | SureColor |
| Other features | |
|---|---|
| Ink drop | 3.5 |
| Print quality (black, draft quality) | 600 DPI |
| Minimum line width | 0.02 mm |
| Touchscreen | Yes |
| Line accuracy | +/- 0,26 |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
