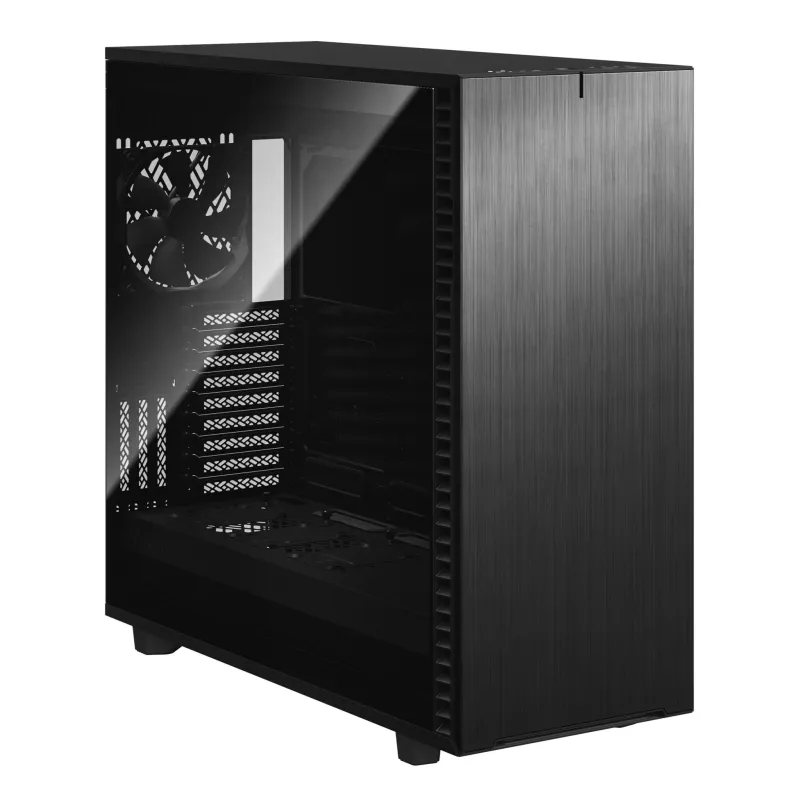

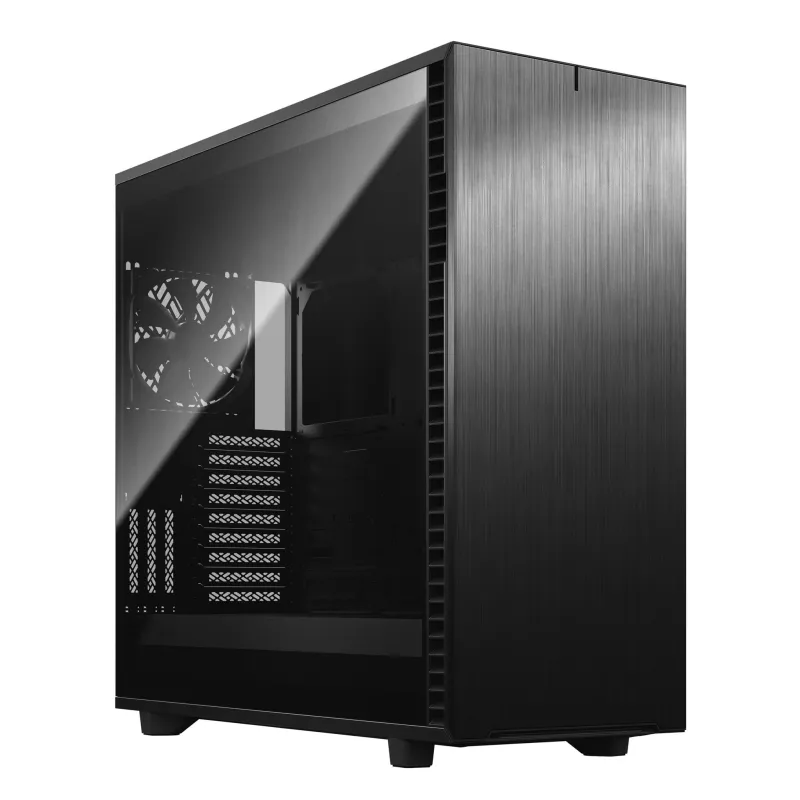

Fractal Design Define 7 XL Midi Tower Black
- Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
- Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
- Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
- Ventilated PSU shroud with two-part removable cover
- Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.
Plenty of room for massive builds
– Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
– Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
– Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
– Ventilated PSU shroud with two-part removable cover
– Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Superlative storage possibilities
– Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
– Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
– Sturdy new HDD cage design with vibration damped trays
– 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
Airflow and cooling
– Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
– Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
– The two 5.25″ ODD bays can be converted to an additional front fan mount with filtered louver covering
Exceptionally silent
Silence-optimized construction with industrial sound-damped front, top, and side panels.
USB Type-C
USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps.
SSI-EEB
Easily holds your SSI-EEB motherboard.
Moduvent

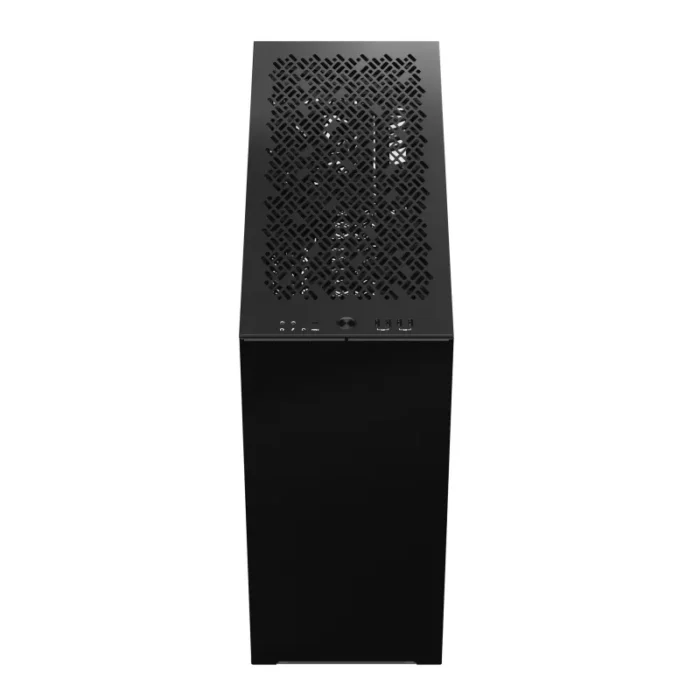

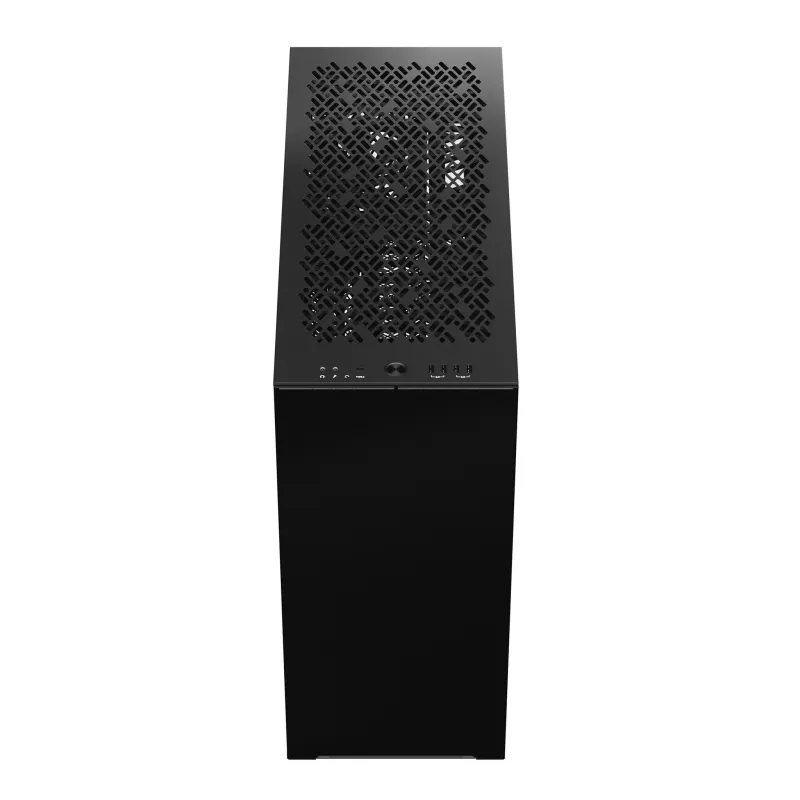

Top panel effortlessly swaps from sound damped solid steel to filtered ventilation.
Versatile new Multibracket
The included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.
| Design | |
|---|---|
| Maximum PSU length | 25 cm |
| Maximum graphics card length | 54.9 cm |
| Maximum CPU cooler height | 18.5 cm |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of expansion slots | 12 |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX, SSI CEB, SSI EEB |
| Product colour | Black |
| Material | Steel |
| Type | PC |
| Form factor | Midi Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX |
| Number of power supply units | 1 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| Audio input | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 420,480 mm |
| Top radiator installed | No |
| Rear radiator fan size installed | 120 |
| Bottom radiator sizes supported | 240,280 mm |
| Rear radiator type | Single radiator |
| Rear radiator installed | Yes |
| Front radiator sizes supported | 420,480 mm |
| Front radiator installed | No |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 4 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 4 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Weight | 16.6 kg |
| Height | 566 mm |
| Depth | 604 mm |
| Width | 240 mm |
| Packaging data | |
|---|---|
| Package weight | 18.8 kg |
| Package height | 708 mm |
| Package depth | 646 mm |
| Package width | 357 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
