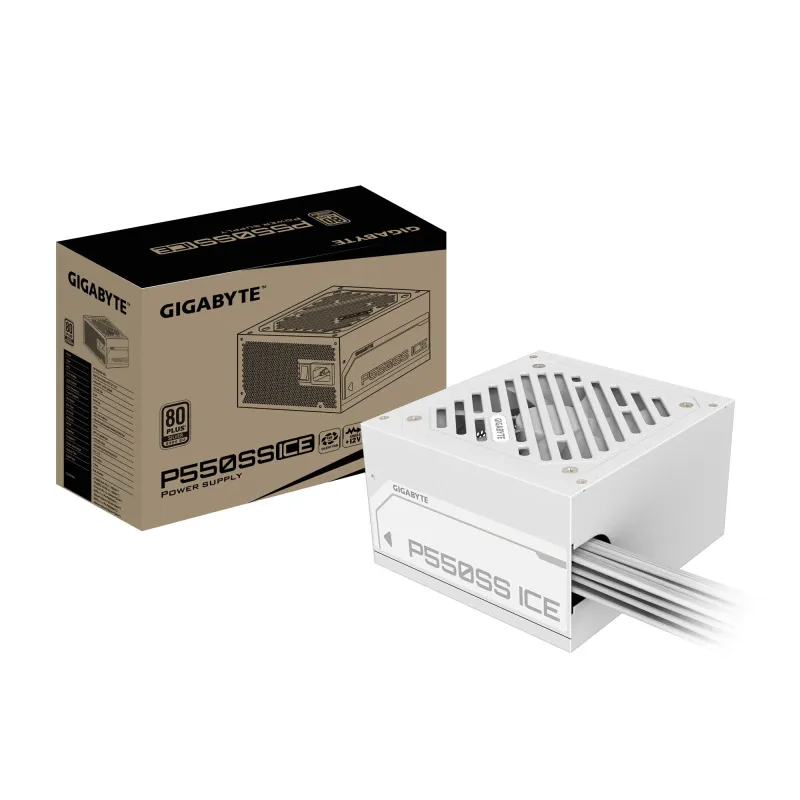

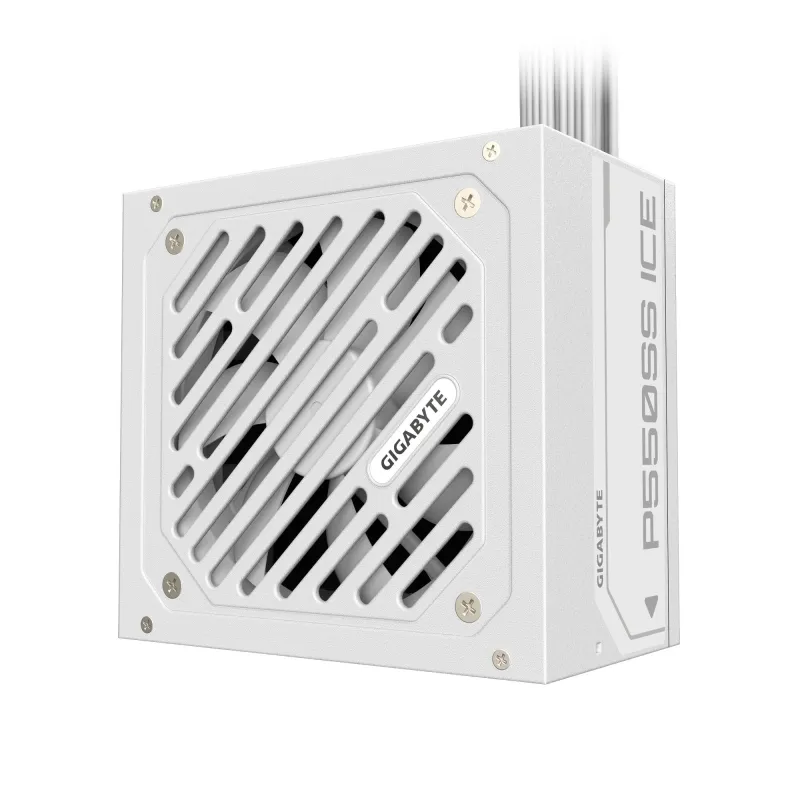

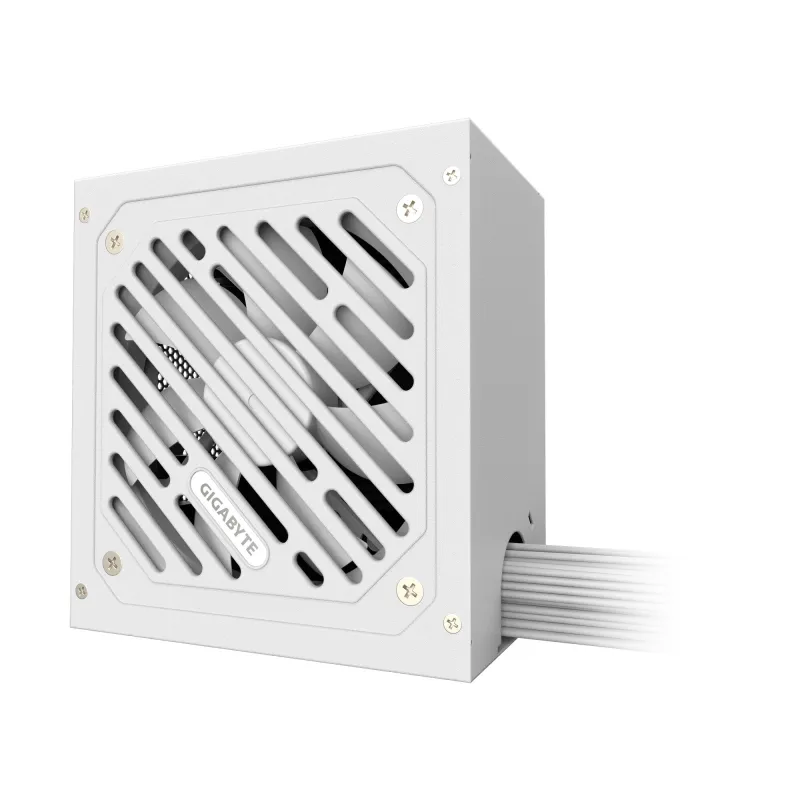

GIGABYTE P550SS ICE Power Supply – PCIe 5.0, 80 PLUS Silver, 120mm Fan, ATX 3.0 compatible, UK Plug
- Ice white aesthetics
- 80 PLUS Silver certified (230V EU)
- Support Intel ATX 3.0 standard (compatible with ATX 3.1)
- 120mm Fluid Dynamic Bearing (FDB) Fan
- Flat cable design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Power Good signal delay range | 100 – 150 ms |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 45.8 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 549.6 W |
| Combined power (+3.3V) | 100 W |
| Power Factor Correction (PFC) type | Active |
| Input current | 6.3 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 155-240 V |
| Total power | 550 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy drive power connector | 2 |
| Floppy disk drive connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of SATA power connectors | 5 |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | Ball bearing |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Silver |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Weight | 1.95 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 140 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.11 kg |
| Package height | 117 mm |
| Package depth | 206 mm |
| Package width | 254 mm |
| Logistics data | |
|---|---|
| Warranty period | 3 year(s) |
