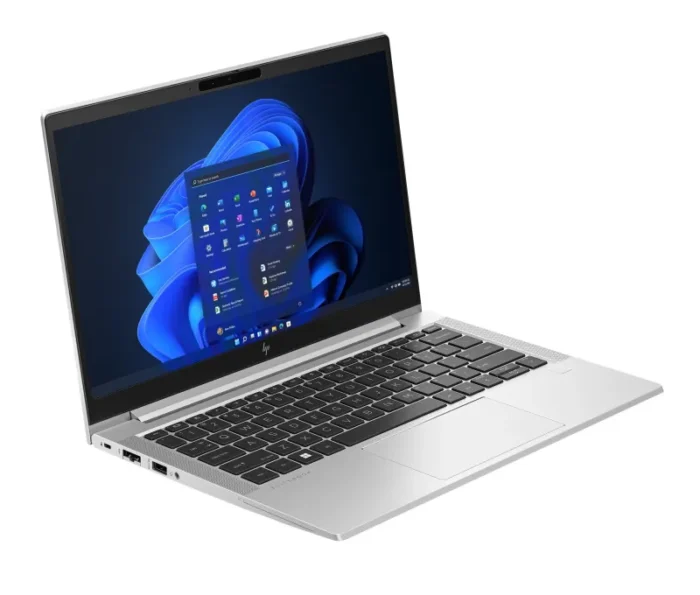

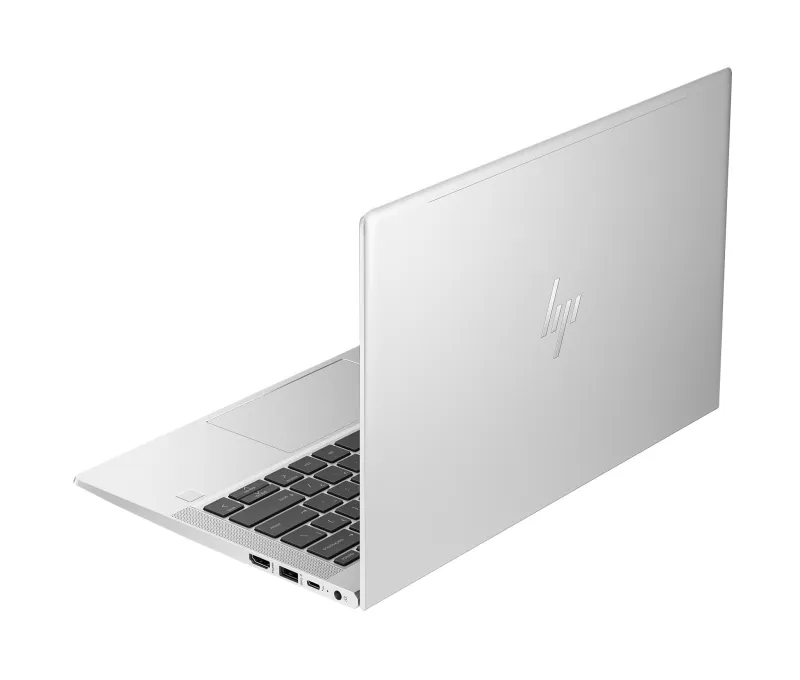

HP EliteBook 630 G10 Intel® Core™ i7 i7-1355U Laptop 33.8 cm (13.3″) Full HD 16 GB DDR4-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Silver
- Intel Core™ i7-1355U (up to 5.0 GHz with Intel Turbo Boost Technology, 12 MB L3 cache, 10 cores, 12 threads)
- Windows 11 Pro
- 33.8 cm (13.3″) diagonal FHD display
- Intel UHD Graphics
- 16 GB DDR4-3200 MT/s (1 x 16 GB), 512 GB PCIe NVMe™ SSD
Empowering the hybrid workforce
Simplify hybrid work with the cost-effective, highly secure, and easy to manage HP EliteBook 630. With the latest Intel processor[2], this PC easily adapts for use at home, in the office, or when traveling.
| Design |
| Original brand name |
HP |
| Introduction year |
2023 |
| Market positioning |
Premium |
| Form factor |
Clamshell |
| Colour name |
Pike silver aluminum |
| Product colour |
Silver |
| Product type |
Laptop |
| Display |
| Display diagonal (metric) |
33.8 cm |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Display brightness |
250 cd/m² |
| Display bezel technology |
Micro-Edge |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:9 |
| Panel type |
IPS |
| HD type |
Full HD |
| Touchscreen |
No |
| Display resolution |
1920 x 1080 pixels |
| Display diagonal |
33.8 cm (13.3″) |
| Processor |
| Configurable TDP-down |
12 W |
| Processor cache type |
L3 |
| Processor cache |
12 MB |
| Processor boost frequency |
5 GHz |
| Processor threads |
12 |
| Processor cores |
10 |
| Processor model |
i7-1355U |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Number of free internal memory expansion slots |
1 |
| ECC |
No |
| Non-ECC |
Yes |
| Maximum internal memory |
64 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory clock speed |
3200 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Optical drive type |
No |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel® UHD Graphics |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics card model |
Not available |
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Audio system |
Bang & Olufsen |
| Camera |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB4 Gen 3×2 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Keyboard |
| Keyboard special features |
Resistente a liquidi e infiltrazioni |
| Input device model |
HP Premium Collaboration Keyboard |
| Spill-resistant keyboard |
Yes |
| Numeric keypad |
No |
| Keyboard backlit |
Yes |
| Pointing device |
Clickpad |
| Software |
| Bundled software |
HP Wolf Pro Security Edition (1 year) |
| Pre-installed software |
HP Connection Optimizer; HP Hotkey Support; HP Power Manager; myHP; HP Privacy Settings; HP Notifications; HP PC Hardware Diagnostics Windows; HP Services Scan; HP Smart Support (download) |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Intel Flex Memory Access |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Execute Disable Bit |
Yes |
| Embedded options available |
No |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
197497484021 |
| HP segment |
Business |
| HP Management tools |
HP Client Management Script Library (download); HP Driver Packs (download); HP Client Catalog (download); HP Manageability Integration Kit Gen4 (download); HP Image Assistant Gen5 (download); HP Patch Assistant (download); HP Cloud Recovery; HP Connect for Microsoft Endpoint Manager |
| HP Security tools |
Absolute persistence module; HP Secure Erase; HP Sure Click; HP Sure Sense; BIOS Update via Network; HP Sure Admin; HP BIOSphere Gen6; HP Client Security Manager Gen7; TPM 2.0 embedded security chip (Common Criteria EAL4+ and FIPS 140-2 Level 2 Certified); HP Sure Start Gen7; HP Wake on WLAN; HP Tamper Lock; HP Sure Run Gen5; HP Sure Recover Gen5; Secured-Core PC Enable |
| HP front camera |
HP Webcam HD IR |
| HP Smart AC Adapter |
Yes |
| HP Connection Optimizer |
Yes |
| HP speaker type |
HP Dual Speakers |
| Battery |
| Battery weight |
181.83 g |
| Battery capacity |
42 Wh |
| Number of battery cells |
3 |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
45 W |
| Security |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Fingerprint reader |
Yes |
| Certificates |
| Low halogen |
Yes |
| Compliance certificates |
CCC, CECP |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
TCO |
| Sustainable technologies and materials |
Low Halogen; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 5% post-consumer recycled plastic; Ocean-bound plastic in speaker enclosure(s) |
| Weight & dimensions |
| Height |
15.9 mm |
| Depth |
208.4 mm |
| Width |
306.9 mm |
| Weight |
1.22 kg |
| Packaging data |
| Package height |
305 mm |
| Package depth |
483 mm |
| Package width |
69 mm |
| General |
| Product family |
EliteBook |
| Product series |
600 |
| Packaging content |
| Stylus pen |
No |
| Logistics data |
| Harmonized System (HS) code |
8471300000 |
| Other features |
| Number of speakers |
2 |
| Manufacturer warranty |
1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. |
| Technical details |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
- HP Sure View – In Plane Sight :30 Intel Compliant
- Security Solutions: Multi-Factor Authenticate 25sec Vignette
