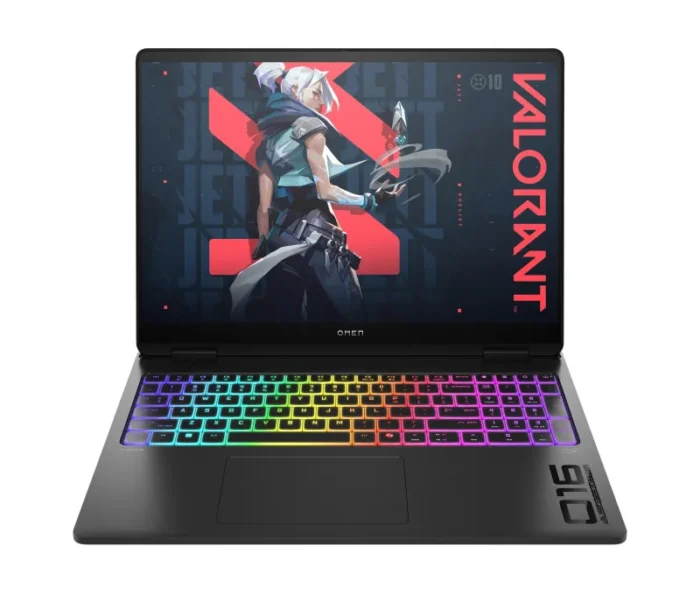

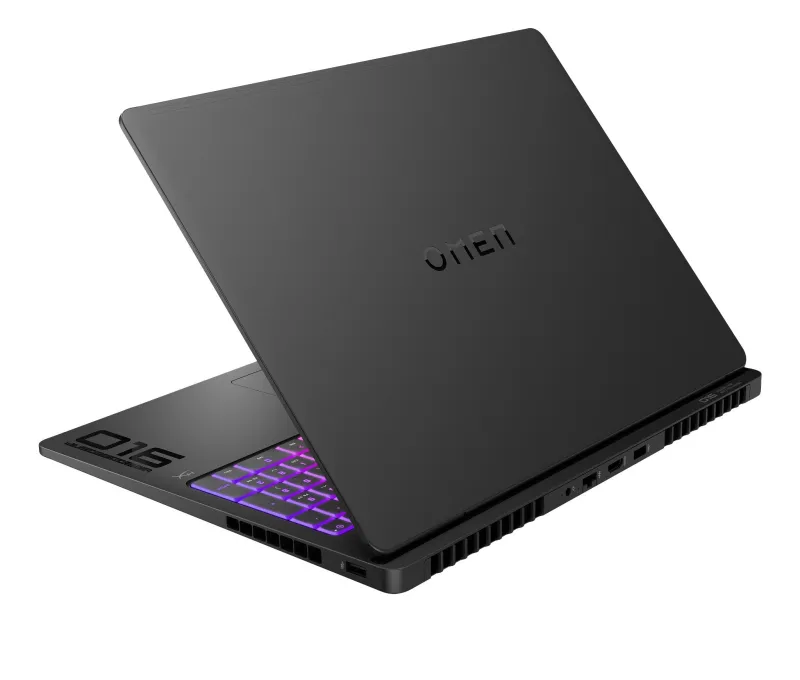

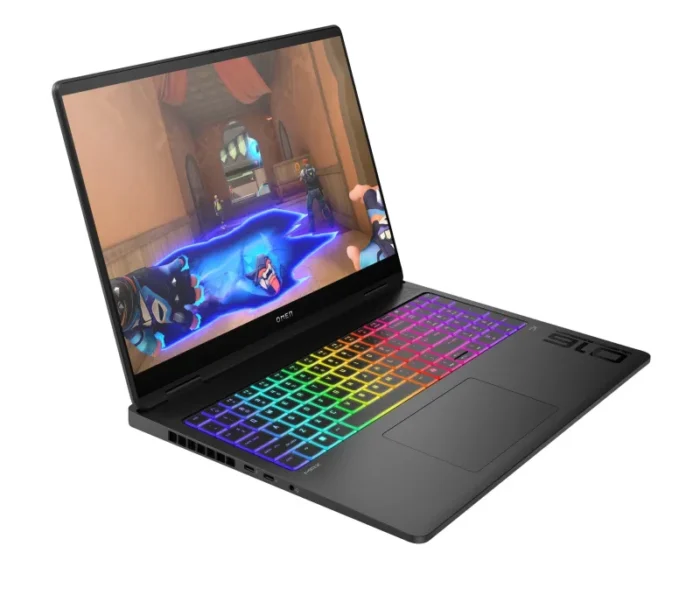

HP OMEN MAX 16-ah0007na Intel Core Ultra 9 275HX Laptop 40.6 cm (16″) WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5080 Wi-Fi 7 (802.11be) Windows 11 Home Black
- Intel Core™ Ultra 9 275HX (up to 5.4 GHz with Intel Turbo Boost Technology, 36 MB L3 cache, 24 cores, 24 threads)
- Windows 11 Home
- 40.6 cm (16″) diagonal WQXGA display
- NVIDIA GeForce RTX™ 5080 Laptop GPU (16 GB GDDR7 dedicated)
- 32 GB DDR5-5600 MT/s (2 x 16 GB), 1 TB PCIe Gen5 NVMe™ Performance M.2 SSD
Built to break limits
The OMEN 16 MAX gaming laptop provides unparalleled performance both at-home or on-the-go. With next-gen NVIDIA GPUs and Intel Core™ Ultra CPUs[1], a new Unleashed Mode for manual overclocking, and a thermal architecture built to cut down on both throttling and long term wear, dedicated gamers can achieve their best for years to come.
| Design |
| Original brand name |
HP |
| Introduction year |
2025 |
| Market positioning |
Gaming |
| Form factor |
Clamshell |
| Colour name |
Shadow black |
| Product colour |
Black |
| Product type |
Laptop |
| Display |
| Display response rise/fall |
3 ms |
| Maximum refresh rate |
240 Hz |
| Display diagonal (metric) |
40.6 cm |
| RGB colour space |
NTSC |
| Colour gamut |
100% |
| Display brightness |
500 cd/m² |
| Display bezel technology |
Micro-Edge |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
WQXGA |
| Touchscreen |
No |
| Display resolution |
2560 x 1600 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor base power |
55 W |
| Maximum turbo power |
160 W |
| Processor cache |
36 MB |
| Efficient-core base frequency |
2.1 GHz |
| Performance-core base frequency |
2.7 GHz |
| Efficient-core Max Turbo Frequency |
4.6 GHz |
| Performance-core Max Turbo Frequency |
5.4 GHz |
| Efficient cores |
16 |
| Performance cores |
8 |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
24 |
| Processor cores |
24 |
| Processor model |
275HX |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor family |
Intel Core Ultra 9 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| GPU performance up to |
8 TOPs |
| NPU performance up to |
13 TOPs |
| Total processor performance up to |
36 TOPs |
| AI software frameworks supported by NPU |
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Memory slots (available) |
2 |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
32 GB |
| Storage |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 5.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Intel Graphics |
| On-board graphics card family |
Intel Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR7 |
| Discrete graphics card memory |
16 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 5080 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Camera |
| Infrared (IR) camera |
Yes |
| Front camera HD type |
Full HD |
| Front camera |
Yes |
| Network |
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 7 BE200 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge ports |
3 |
| USB Sleep-and-Charge |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| Performance |
| Motherboard chipset |
Intel HM870 |
| Keyboard |
| Keyboard colour name |
Shadow black |
| Full-size keyboard |
Yes |
| Keyboard backlit colour |
RGB |
| Numeric keypad |
Yes |
| Keyboard backlit |
Yes |
| Software |
| Pre-installed software |
Otter.ai, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; Xbox Game Pass 1-month free trial; PC Game Pass 3-month trial |
| Operating system installed |
Windows 11 Home |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
198990491172 |
| HP segment |
Home |
| HP Software provided |
HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub |
| HP Security tools |
Camera privacy shutter; Trusted Platform Module (Firmware TPM) support |
| HP front camera |
HP TrueVision FHD IR |
| HP Imagepad |
Yes |
| HP speaker type |
HP Dual Speakers |
| HP Audio Boost |
Yes |
| Battery |
| Fast charging time (50%) |
30 min |
| Fast charging |
Yes |
| Battery capacity |
83 Wh |
| Number of battery cells |
6 |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| USB Power Delivery (USB PD) |
Yes |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50 – 60 Hz |
| AC adapter power |
330 W |
| Security |
| Password protection |
Yes |
| Trusted Platform Module (TPM) |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainable technologies and materials |
Ocean-bound plastic in bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic; Recycled metal in cover, base and hinge cap(s) |
| Weight & dimensions |
| Height (rear) |
2.48 cm |
| Height (front) |
2.29 cm |
| Depth |
269 mm |
| Width |
356.5 mm |
| Weight |
2.68 kg |
| Packaging data |
| Package weight |
4.74 kg |
| Package height |
332 mm |
| Package depth |
428 mm |
| Package width |
94 mm |
| General |
| Product family |
OMEN MAX |
| Packaging content |
| AC adapter included |
Yes |
| Logistics data |
| Harmonized System (HS) code |
8471300000 |
| Technical details |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; [email protected] |
| Other features |
| Manufacturer warranty |
1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. |
