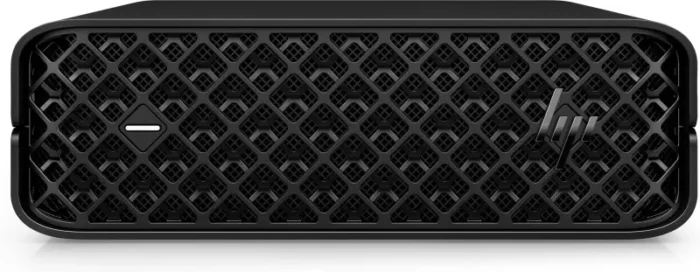

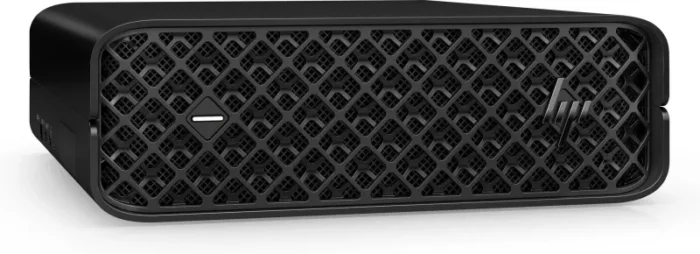

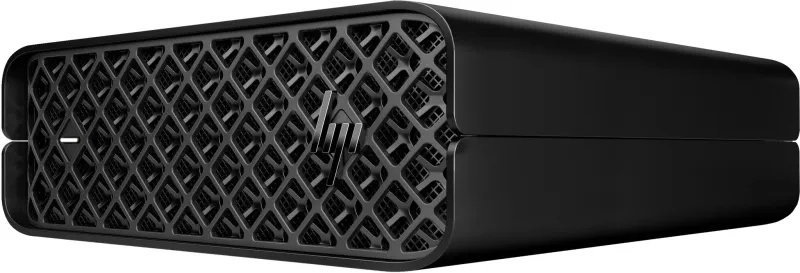

HP Z2 G9 Intel® Core™ i7 i7-13700 32 GB DDR5-SDRAM 512 GB SSD NVIDIA Quadro T1000 Windows 11 Pro Mini PC Workstation Black
- Intel® Core™ i7-13700 (up to 5.2 GHz with Intel® Turbo Boost Technology, 30 MB L3 cache, 16 cores, 24 threads)
- Windows 11 Pro
- NVIDIA® T1000 (8 GB GDDR6 dedicated)
- 32 GB memory; 512 GB SSD storage
Powers large workflows. Fits a tiny space.
Tackle workflows you never thought before possible on such a tiny PC. The HP Z2 Mini easily fits on your desk or behind your monitor so you can tackle 3D projects without losing valuable office space. All while feeling protected From the BIOS to the browser, above, in, and below the OS with HP Wolf Security Suite.
| Processor |
| Bus type |
DMI4 |
| Processor cache type |
L3 |
| Processor cache |
30 MB |
| Processor boost frequency |
5.2 GHz |
| Processor threads |
24 |
| Processor cores |
16 |
| Processor model |
i7-13700 |
| Processor generation |
13th gen Intel® Core™ i7 |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
No |
| Non-ECC |
Yes |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
2 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
32 GB |
| Internal memory |
32 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
8 GB |
| Discrete graphics card model |
NVIDIA Quadro T1000 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
2 |
| USB 3.2 Gen 2×2 Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| Expansion slots |
| PCI Express x8 (Gen 4.x) slots |
1 |
| PCI Express x4 (Gen 4.x) slots |
2 |
| Design |
| Introduction year |
2023 |
| Product colour |
Black |
| Placement supported |
Horizontal |
| Chassis type |
Mini PC |
| Performance |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Audio chip |
Realtek ALC3205-VA2-CG |
| Market positioning |
Performance |
| Product type |
Workstation |
| Software |
| Bundled software |
HP Wolf Pro Security Edition (1 year) |
| Pre-installed software |
HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Privacy Settings; HP Desktop Support Utilities; HP Image Assistant; HP Manageability Integration Kit; HP Notifications; Performance Advisor 3.0; HP Data Science Stack; myHP |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| CPU configuration (max) |
1 |
| Brand-specific features |
| HP GTIN (EAN/UPC) |
197498286730 |
| HP segment |
Business |
| HP Management tools |
HP BIOS Configuration Utility (download) |
| HP Security tools |
HP Secure Erase; HP Sure Click; HP BIOSphere Gen6; HP Sure Admin; Hood Sensor Optional Kit; HP Client Security Manager Gen6; HP Sure Start Gen7; HP Sure Recover Gen4; HP Tamper Lock; HP Sure Sense Gen2; HP Sure Run Gen5 |
| HP Support Assistant |
Yes |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
280 W |
| Sustainability |
| Sustainable technologies and materials |
80 Plus® Gold power supplies available; Bulk packaging available; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; Outside box and corrugated cushions are 100% sustainably sourced and recyclable; 55% post-consumer recycled plastic; 15% ITE-derived closed loop plastic; Ocean-bound plastic in speaker enclosure and system fan; Low halogen PCAs; Product Carbon Footprint |
| Weight & dimensions |
| Package weight |
4.8 kg |
| Package height |
298 mm |
| Package depth |
170 mm |
| Package width |
499 mm |
| Weight |
2.4 kg |
| Height |
69 mm |
| Depth |
218 mm |
| Width |
211 mm |
| Packaging content |
| Keyboard included |
Yes |
| Keyboard connectivity |
Wired |
| Mouse included |
Yes |
| Mouse connectivity |
Wired |
| Display included |
No |
| General |
| Product family |
Z2 |
| Logistics data |
| Harmonized System (HS) code |
8471500000 |
| Technical details |
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://h10032.www1.hp.com/ctg/Manual/c08200880.pdf |
| Other features |
| Keyboard type |
USB |
