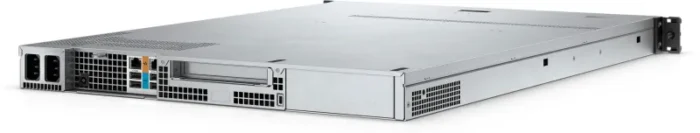

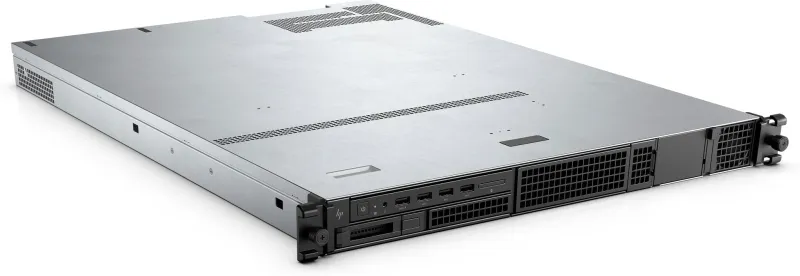

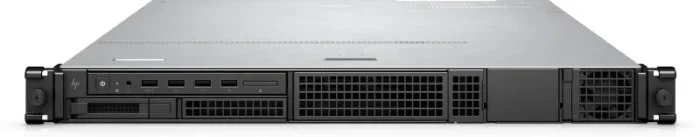

HP ZCentral 4R Intel Xeon W W-2225 16 GB DDR4-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro Rack-mounted chassis Workstation Black
- Intel® Xeon® W-2225 (4.1 GHz base frequency, up to 4.6 GHz with Intel® Turbo Boost Technology, 8.25 MB L3 cache, 4 cores)
- Windows 11 Pro
- NVIDIA® T400 (2 GB GDDR6 dedicated)
- 16 GB memory; 512 GB SSD storage
Our most powerful 1U rack workstation.
For the first time ever, get Z performance in a high-density 1U footprint. This slim powerhouse lets you pack more units—and power—into your data closet. Perfect for use with HP ZCentral, our single-source remote workstation solution frees power users to work from anywhere.[1]
| Processor |
| Number of processors installed |
1 |
| Processor cache type |
L3 |
| Processor cache |
8.25 MB |
| Processor frequency |
4.1 GHz |
| Processor boost frequency |
4.6 GHz |
| Processor threads |
8 |
| Processor cores |
4 |
| Processor model |
W-2225 |
| Processor family |
Intel Xeon W |
| Processor manufacturer |
Intel |
| Memory |
| ECC |
Yes |
| Memory clock speed |
2933 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR4-SDRAM |
| Internal memory |
16 GB |
| Storage |
| SSD interface |
SATA |
| SSD capacity |
512 GB |
| SSD memory type |
TLC |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
2 GB |
| Discrete graphics card model |
NVIDIA T400 |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card |
Yes |
| Network |
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000,10000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Headphone outputs |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
8 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Number of 2.5″ bays |
2 |
| Number of 3.5″ bays |
1 |
| Chassis type |
Rack-mounted chassis |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Password protection type |
BIOS, Power on, User |
| Password protection |
Yes |
| Audio chip |
Realtek ALC3601 |
| Motherboard chipset |
Intel® C422 |
| Market positioning |
Performance |
| Product type |
Workstation |
| Software |
| Pre-installed software |
HP ZCentral Remote Boost 2020 |
| Operating system installed |
Windows 11 Pro |
| Processor special features |
| Intel 64 |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Embedded options available |
No |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Idle States |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Execute Disable Bit |
Yes |
| CPU configuration (max) |
1 |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel TSX-NI |
Yes |
| Intel Flex Memory Access |
No |
| Intel Demand Based Switching |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
No |
| Brand-specific features |
| HP segment |
Business |
| HP Security tools |
Full volume encryption; HP Keyed Cable Lock Kit; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP Sure Click; HP MIK/SCCM Gen2; HP Sure Sense; HP Sure Start Gen6; HP BIOSphere Gen6; HP Client Security Manager Gen6; HP Wolf Security Pro Edition |
| Weight & dimensions |
| Weight |
13.7 kg |
| Height |
43 mm |
| Depth |
487 mm |
| Width |
646 mm |
| Packaging content |
| Display included |
No |
| Logistics data |
| Harmonized System (HS) code |
8471500000 |
| Other features |
| Graphics card interface |
PCIe x16 |
| Number of free internal memory expansion slots |
1 |
