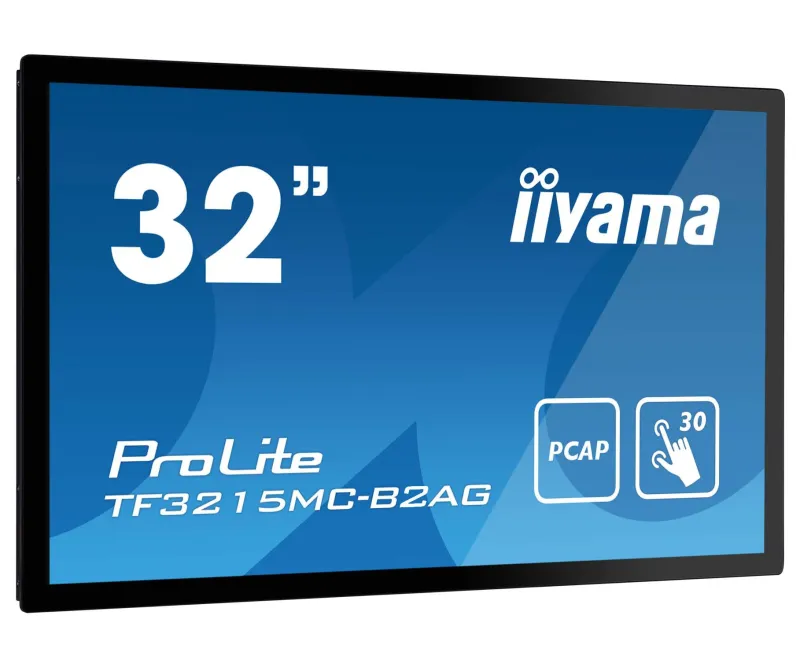

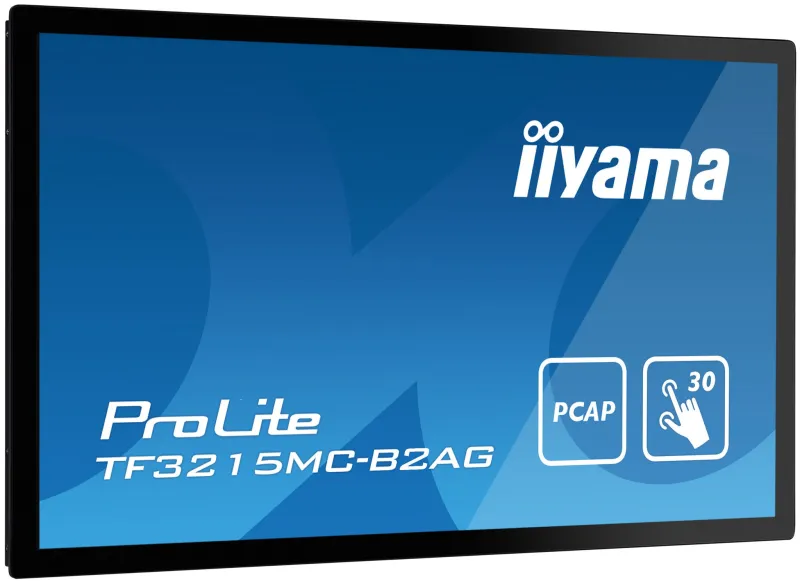

iiyama ProLite TF3215MC-B2AG computer monitor 80 cm (31.5″) 1920 x 1080 pixels Full HD LED Touchscreen Kiosk Black
- Touchscreen 80 cm (31.5″) LED VA
- Full HD 1920 x 1080 pixels 16:9
- 8 ms 500 cd/m² 3000:1
- F 27 kWh 32 W
Open Frame PCAP 30-point Touch monitor with AG coating equipped with a foam seal finish for seamless integration

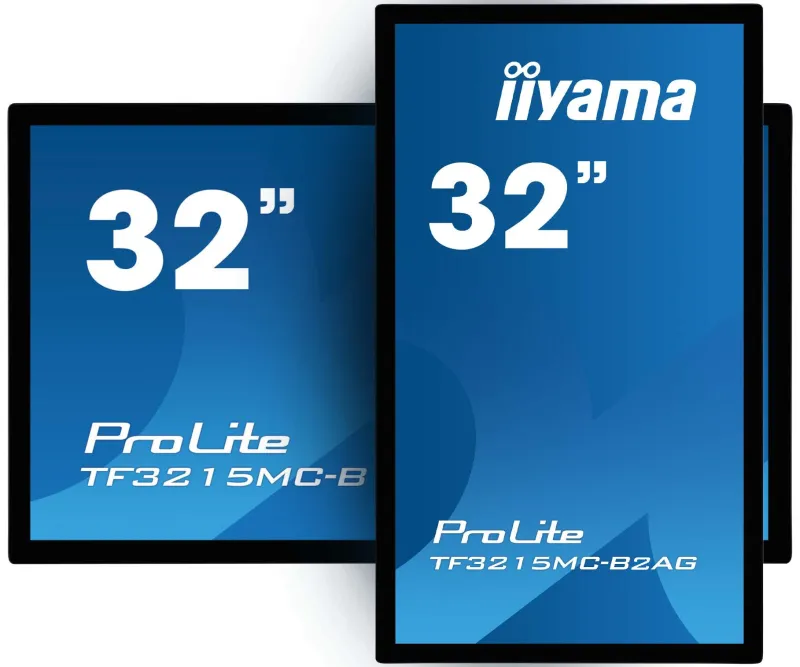

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| Surface hardness | 6H |
| Display diagonal (metric) | 80 cm |
| Digital horizontal frequency | 30 – 68 kHz |
| Viewable size, vertical | 39.3 cm |
| Viewable size, horizontal | 69.8 cm |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 3000:1 |
| Screen shape | Flat |
| Anti-glare screen | Yes |
| Response time | 8 ms |
| Display brightness (typical) | 500 cd/m² |
| Number of simultaneous touchpoints | 30 |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type | Kiosk |
| Panel type | VA |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 80 cm (31.5″) |
| Performance | |
|---|---|
| Operating hours (hours/days) | 24/7 |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Design | |
|---|---|
| Glass thickness | 6 mm |
| Housing material | Metal |
| Product colour | Black |
| Market positioning | Business |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Built-in USB hub | No |
| Ergonomics | |
|---|---|
| Plug and Play | Yes |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Cable management | Yes |
| Panel mounting interface | 200 x 200 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 32 W |
| Energy consumption (SDR) per 1000 hours | 27 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | F |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 10 kg |
| Height (without stand) | 437 mm |
| Depth (without stand) | 61 mm |
| Width (without stand) | 745.5 mm |
| Packaging data | |
|---|---|
| Package weight | 12.8 kg |
| Package height | 630 mm |
| Package depth | 155 mm |
| Package width | 890 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Compliance certificates | REACH |
| IK code | IK07 |
| International Protection (IP) code | IP65 |
