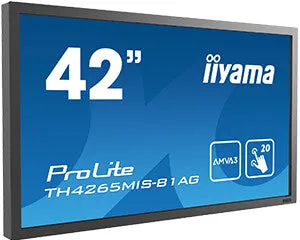

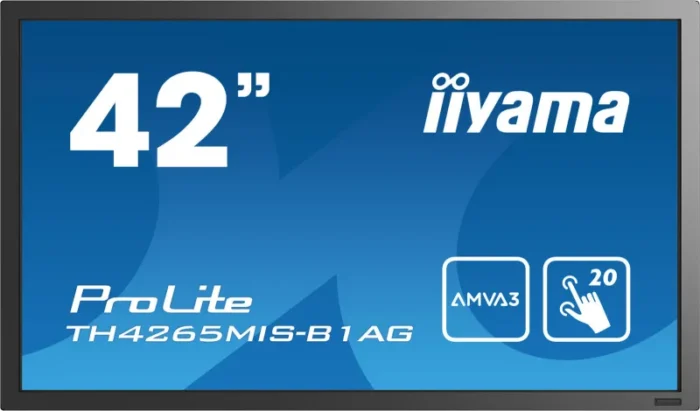

iiyama ProLite TH4265MIS-B1AG computer monitor 106.7 cm (42″) 1920 x 1080 pixels Full HD LED Touchscreen Black
- Touchscreen 106.7 cm (42″) LED
- Full HD 1920 x 1080 pixels 16:9
- 6.5 ms 3000:1
- 75 W
42” Full HD professional 20pt touchscreen featuring daisy chain support
ProLite TH4265MIS-B1AG is a 42” Full HD, professional and fan-less LED-backlit display. Incorporating the InfraRed 20 point touch feature along with our supreme AMVA3 panel colour performance, this display offers the optimum performance for a truly multi-user interactive display experience. The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Besides, it features an ambient light sensor delivering exceptional performance with the added benefit of saving on power. Landscape and Portrait friendly, the display can be mounted according to the application for true impact in Interactive Digital Signage and with Protection Glass the display can handle harshest environments from the Classroom to Public Domain Retail installation.
AMVA3
AMVA3 technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
Touch technology – Infrared
The infrared technology uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus. This technology does not rely on an overlay or substrate, so it is impossible to physically “wear out” the touchscreen. Moreover the display characteristics remain virtually unaffected by the touch functionality.
DisplayPort/HDMI Daisy Chain Support
A daisy chain is a wiring scheme in which multiple devices are wired together in sequence or in a ring. It enables a connection of a series of devices using a single connection between each two devices, using DisplayPort/HDMI input and a DisplayPort/HDMI output. The output connects to the next downstream display. This cabling arrangement, with one DisplayPort/HDMI cable between each set of monitors, provides a simple, less cluttered system configuration.
USB Playback
The monitor supports playback of presentations, video and almost any type of content stored on the USB device or internal memory.
AG Coating
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
LAN Control
LAN control enables making adjustments in the display OSD menu through your network (software not included).
| Display | |
|---|---|
| Separate H/V sync | Yes |
| Display diagonal (metric) | 106.7 cm |
| Viewable size diagonal | 106.7 cm |
| Vertical scan range | 50 – 76 Hz |
| Horizontal scan range | 30 – 83 kHz |
| Pixel pitch | 0.4845 x 0.4845 mm |
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 3000:1 |
| Aspect ratio | 16:9 |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1920 x 1080 (HD 1080) |
| Screen shape | Flat |
| Response time | 6.5 ms |
| Display brightness | 350 cd/m² |
| Touch technology | Multi-touch |
| Touchscreen technology | Infrared |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 106.7 cm (42″) |
| Performance | |
|---|---|
| Number of simultaneous touchpoints (Windows 7) | 20 |
| OmniTapps Multitouch compatibility | No |
| Operating hours (hours/days) | 24/7 |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Multimedia | |
|---|---|
| Built-in microphone | No |
| Built-in camera | No |
| RMS rated power | 20 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Glass thickness | 3 mm |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Composite video in | 1 |
| HDCP | Yes |
| Audio output | 1 |
| HDMI ports quantity | 4 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| Number of upstream ports | 1 |
| USB upstream port type | USB Type-B |
| Ergonomics | |
|---|---|
| Number of OSD languages | 11 |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, French, Italian, Japanese, Polish, Russian |
| Wall mountable | Yes |
| Panel mounting interface | 400 x 400 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Annual energy consumption | 110 kWh |
| Energy efficiency scale | A+++ to D |
| Power supply type | AC |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 75 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 85% |
| Operating relative humidity (H-H) | 0 – 85% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight (without stand) | 24.6 kg |
| Height (without stand) | 578 mm |
| Depth (without stand) | 74.5 mm |
| Width (without stand) | 987 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI, USB, VGA |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Energy efficiency class (old) | B |
| Certification | CE, TÜV-Bauart, CB, CU |
| Power management | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Placement supported | Horizontal/Vertical |
| Glass protection | Yes |
| Audio (L/R) in | 1 |
| Display viewable area (HxV) | 523.26 x 930.24 mm |
| Full HD | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
