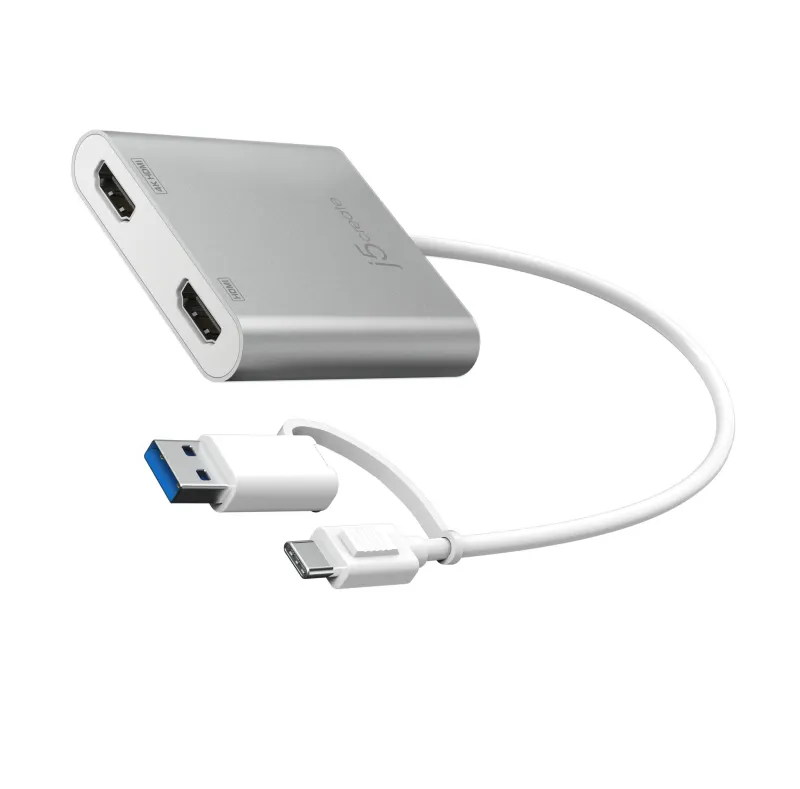

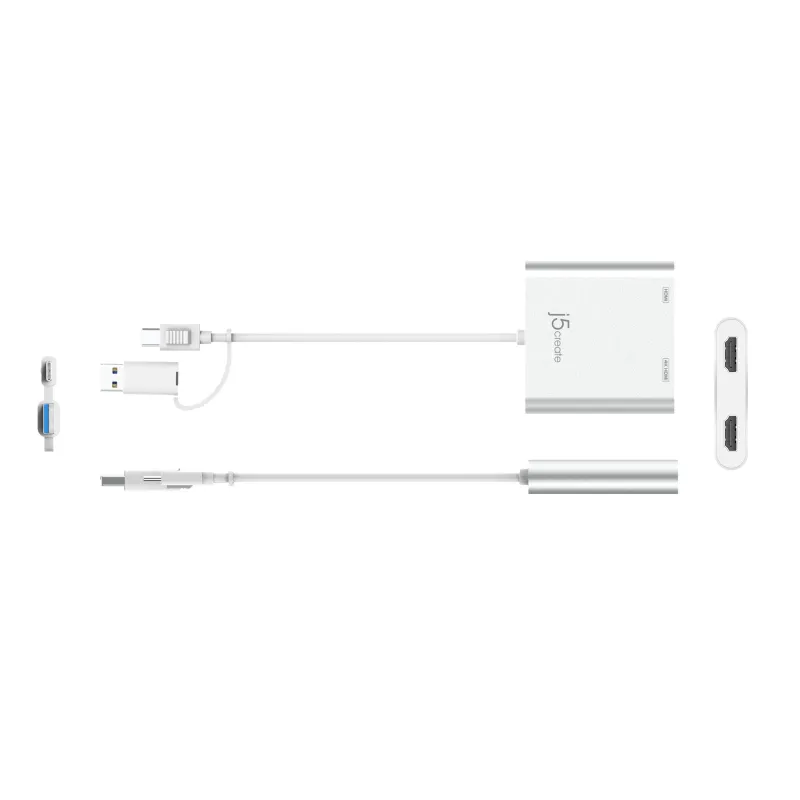

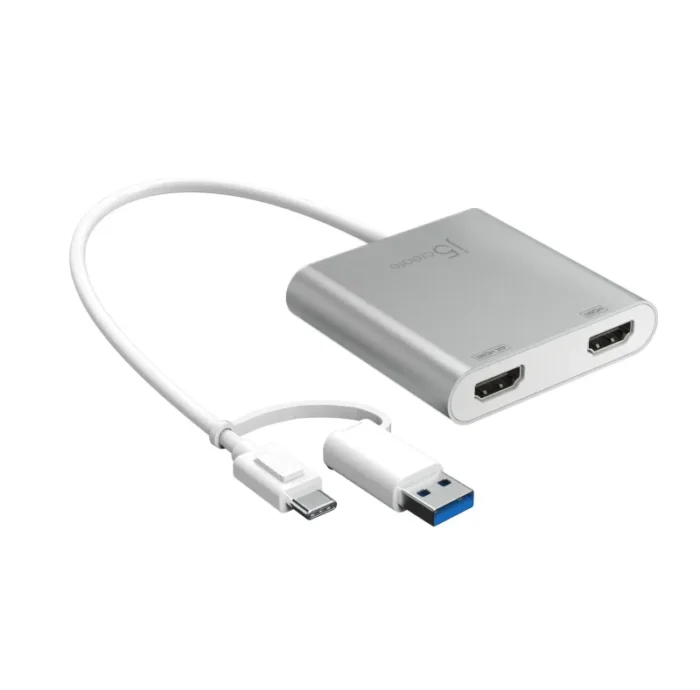

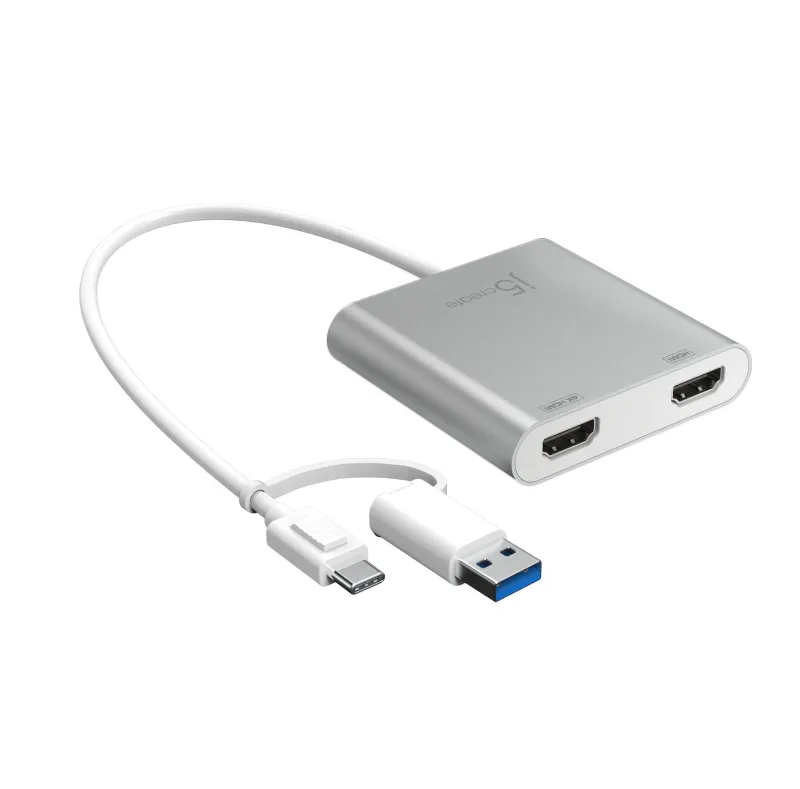

j5create JCA365-N USB-C® to Dual HDMI™ Multi-Monitor Adapter
- Easily add two HDMI™ video outputs though a single USB-C® port
- Compatible with USB-C® enabled macOS® & Windows® laptops
- Compact and lightweight design for maximum portability
- 4 display modes: Mirror, Extended, Primary, or Rotation*
- *Rotation mode only available on Windows® computers
- Supports resolutions up to 3840 x 2160 @ 30 Hz & 2048 x 1152 @ 60 Hz
- Hot swappable USB™ enables you to add or remove monitors without rebooting your system
- USB™ 3.1 provides up to 5 Gbps transfer rate which is 10x faster than USB™ 2.0
- 2-channel audio support
The JCA365 USB-C® to Dual HDMI™ Multi-Monitor Adapter acts as an external video card for your MacBook® or Windows® laptops. It allows you to add two additional displays through your USB-C® port, boosting your productivity by giving you more screen space to work from. One of the HDMI™ ports can output resolutions up to 4K, while the other can output resolutions up to 2048 x 1152.
Simply install the driver for the USB-C® to Dual HDMI™ Multi-Monitor Adapter by plugging-in the adapter and then connect your monitors using HDMI™ cables for a dual-display workstation!
| Performance |
| Current |
0.29 A |
| Extended display mode |
Yes |
| Mirror display mode |
Yes |
| Supported graphics resolutions |
2048 x 1152, 3840 x 2160 |
| Refresh rate at maximum resolution |
30 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| HDMI ports quantity |
2 |
| Number of displays supported |
2 |
| DisplayPort output |
No |
| HDMI output |
Yes |
| DVI output |
No |
| USB connector form factor |
Straight |
| USB connector gender |
Male |
| USB connector type |
USB Type-A, USB Type-C |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Design |
| Cable type |
USB-C/USB 3.0 |
| Integrated USB cable |
Yes |
| Housing material |
Aluminium |
| Product colour |
Silver |
| Power |
| Output voltage |
5 V |
| Power consumption (max) |
1.46 W |
| System requirements |
| Minimum RAM |
4 GB |
| Minimum processor speed |
1.8 GHz |
| Minimum processor family |
Core i3, Core i5, Core i7 |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8.1, Yes |
| Weight & dimensions |
| USB cable length |
0.2 m |
| Weight |
84 g |
| Height |
61 mm |
| Depth |
15 mm |
| Width |
68 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 85% |
| Operating relative humidity (H-H) |
0 – 85% |
| Storage temperature (T-T) |
-10 – 65 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Packaging data |
| Package weight |
114.5 g |
| Package height |
25 mm |
| Package depth |
95 mm |
| Package width |
145 mm |
| Packaging content |
| Packaging content |
1 x USB-C® to Dual HDMI™ Multi-Monitor Adapter (JCA365)1 x Quick Installation Guide (QIG) |
| Cables included |
USB Type-C |
| Manual |
Yes |
| Quick installation guide |
Yes |
| Technical details |
| Warranty period |
2 year(s) |
| Logistics data |
| Export Control Classification Number (ECCN) |
EAR99 |
| Country of origin |
Taiwan |
| Master (outer) case gross weight |
2.91 kg |
| Master (outer) case height |
180 mm |
| Master (outer) case length |
321 mm |
| Master (outer) case width |
225 mm |
| Master (outer) case GTIN (EAN/UPC) |
24712795086410 |
| Products per master (outer) case |
20 pc(s) |
