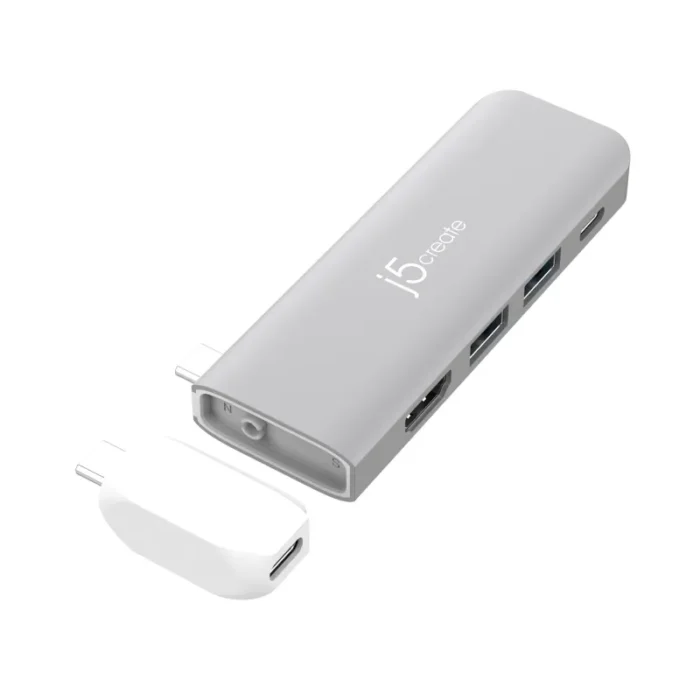

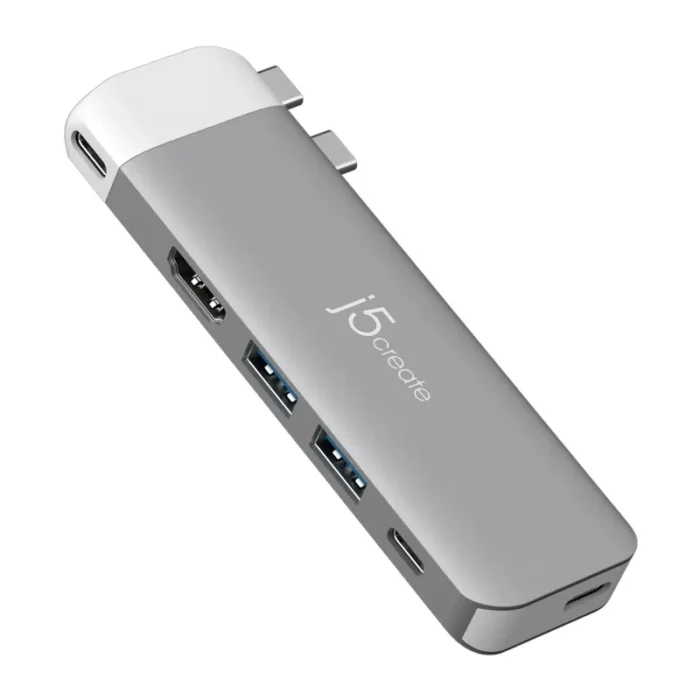

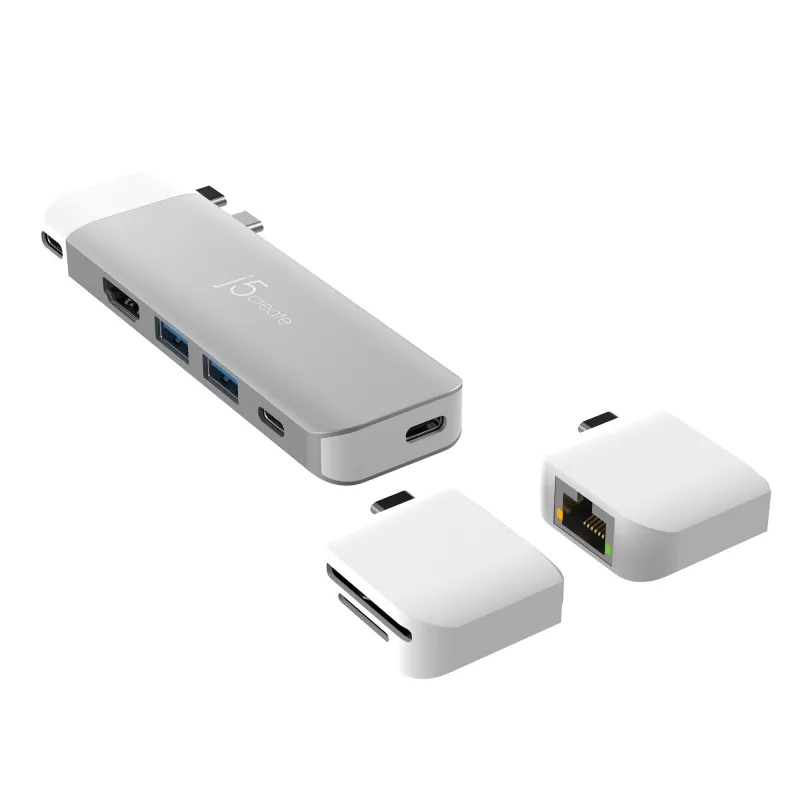

j5create JCD394 USB-C® 6K Premium Hub
- Ultra slim and light weight with a stylish design
- Designed for M2 MacBook Air® and compatible with MacBook Pro® with Intel® CPU
- USB4® modular kit port capable of the following:
- 1. 6K60 resolution display
- 2. 40Gbps data transmission
- 3. PD charging through up to 100W
- Supports HDMI™ resolutions up to 4K
- 2x USB™ Type-A 3.2Gen 1 ports provide up to 5Gbps transfer speed
- 1x USB-C ® 3.2Gen 1 ports provide up to 5Gbps transfer speed
- 1x PD 100W pass through
- Plug-and-play, no driver installation required
The USB-C® 6K Premium Hub adds more ports to your MacBook® system. Seamlessly connect peripherals such as a keyboard, mouse, or USB™ flash drive to this pocket-sized multi-adapter, which has two USB™ Type-A 3.2 Gen1 ports and one USB-C® port. Transfer files from one media to another with the USB™ 3.2 connections. You can use the HDMI™ port to connect to a 4K UHD TV, monitor, or projector. Equipped with a detachable USB4® modular kit, it provides 6K60 resolution, high-speed 40Gbps data transfer, and charging up to 100W of power for charging your computer when a USB-C® power adapter is connected.
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Hub interfaces | HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Type-C |
| Host interface | 2 x USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Ports quantity | 6 |
| Features | |
|---|---|
| Compatible products | MacBook Pro with USB-C® ports Perfect for MacBook Air® M2 |
| Plug and Play | Yes |
| Number of displays supported | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| Product colour | Grey, White |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Supported graphics resolutions | 3840 x 2160, 6016 x 3384 |
| Data transfer rate | 5000 Mbit/s |
| Power | |
|---|---|
| Power plug type | Type C |
| Output current | 4.25 A |
| Output voltage | 20 V |
| Input voltage | 20 V |
| Input current | 5 A |
| System requirements | |
|---|---|
| Compatible operating systems | MacBook Pro with USB-C® portsPerfect for MacBook Air® M2 |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 48 g |
| Height | 13 mm |
| Depth | 98 mm |
| Width | 34 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 115 g |
| Package height | 24.8 mm |
| Package depth | 94.9 mm |
| Package width | 145 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Packaging content | • 1 – USB-C® 6K Premium Hub (JCD394)• 1 – Quick Installation Guide (QIG) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 85% |
| Operating relative humidity (H-H) | 0 – 85% |
| Storage temperature (T-T) | -17 – 68 °C |
| Operating temperature (T-T) | -1 – 41 °C |
