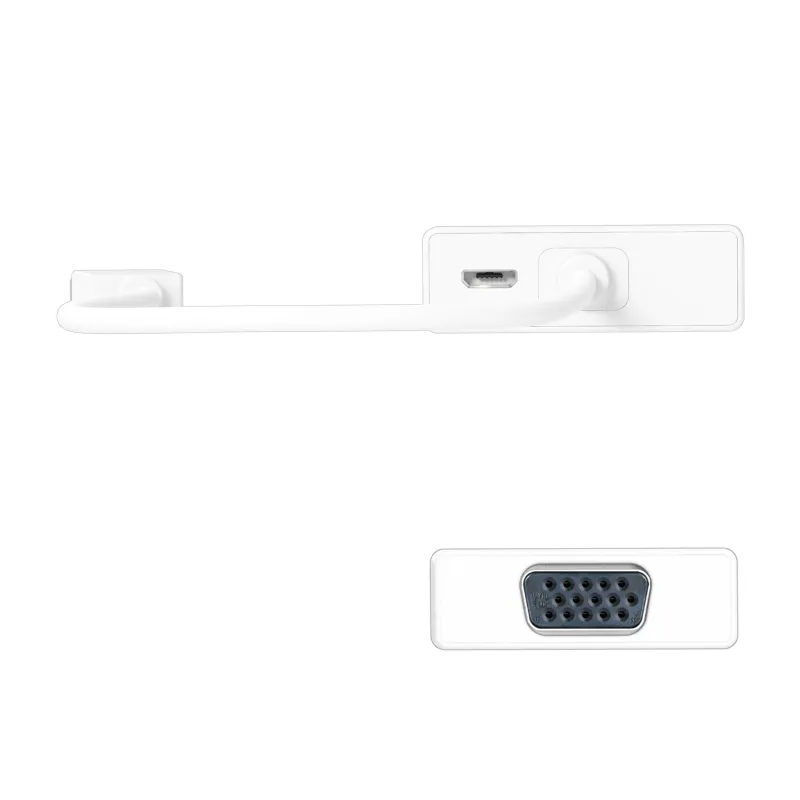

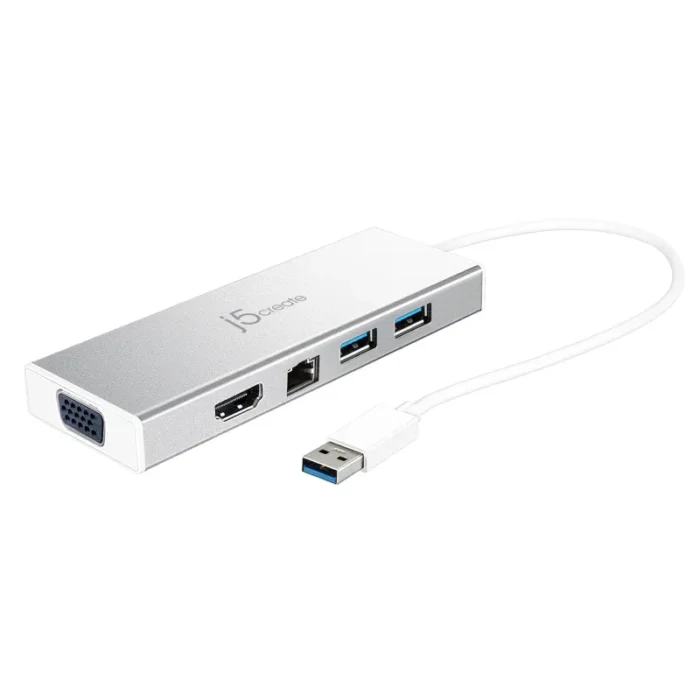

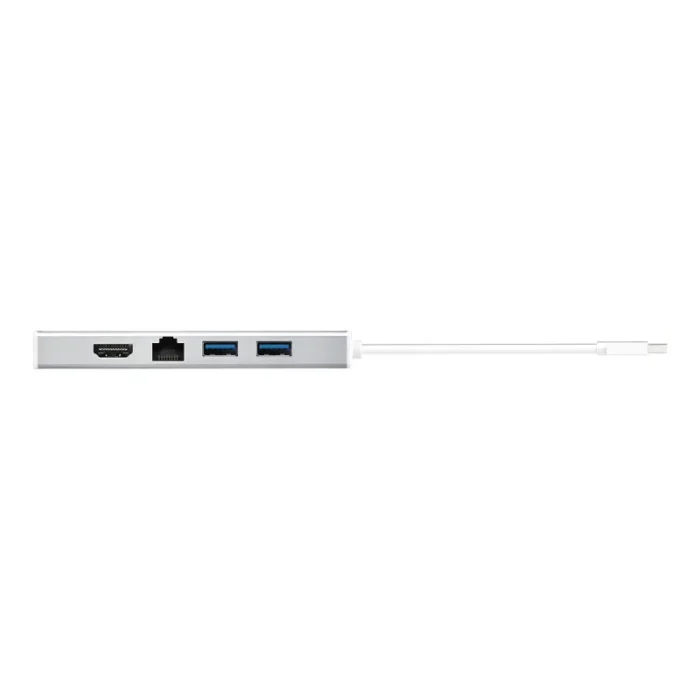

j5create JUD380 USB™ 3.0 Mini Dock, includes 1x HDMI port and 3x USB ports, Silver
- Create a dual-monitor setup with HDMI™ and VGA outputs and together with your laptop display, you can have a maximum of 3 displays
- Compatible with USB™-enabled macOS® & Windows® laptops
- Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
- Compact and lightweight design for maximum portability
- 4 display modes: Mirror, Extended, Primary, or Rotation*
- USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
- Reliable network connectivity via the Gigabit Ethernet port
This dual-monitor USB™ 3.0 mini docking station features two USB™ 3.0 Type-A ports for connecting extra peripherals, an HDMI™ & VGA output port, providing up to 2048 x 1152 resolutions, as well as an integrated RJ45 Ether port for a reliable wired network connection.
With its space-saving, travel-friendly design, you can quickly set up a workstation while on the go!
Ports & interfaces | |
---|---|
Microphone in | No |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Micro-USB 2.0 ports quantity | 1 |
Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
Connectivity technology | Wired |
Network | |
---|---|
Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN | Yes |
Performance | |
---|---|
Certification | CE |
Compatibility | Compatible with USB™-enabled macOS® & Windows® laptops, for example:Macbook™ Pro 2016 & NewerSurface Pro™ 7Surface Go™Surfacebook™ 2Backwards compatible with USB™ 2.0 and 1.1 hosts and devices. |
Brand compatibility | Any brand |
Country of origin | Taiwan |
Charging function | Yes |
Plug and Play | Yes |
Housing material | Aluminium |
Number of displays supported | 2 |
Maximum digital resolution | 2048 x 1152 pixels |
Card reader integrated | No |
Colour name | Silver |
Product colour | Silver |
Power | |
---|---|
USB cable length | 0.2 m |
Power consumption (typical) | 2.25 W |
Output current | 0.45 A |
Input current | 0.9 A |
Power source type | USB |
Software | |
---|---|
Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 0 – 85% |
Operating relative humidity (H-H) | 0 – 85% |
Storage temperature (T-T) | -17 – 68 °C |
Operating temperature (T-T) | 0 – 40 °C |
Weight & dimensions | |
---|---|
Weight | 82.6 g |
Height | 14.2 mm |
Depth | 42.8 mm |
Width | 119.6 mm |
Packaging data | |
---|---|
Package weight | 180.5 g |
Package height | 225 mm |
Package depth | 125 mm |
Package width | 193 mm |
Quantity per pack | 1 pc(s) |
Packaging content | |
---|---|
Cables included | USB |
User guide | Yes |
Drivers included | Yes |
Quick start guide | Yes |
Technical details | |
---|---|
Warranty period | 2 year(s) |
Master (outer) case GTIN (EAN/UPC) | 24712795081347 |
Logistics data | |
---|---|
Shipping (inner) case net weight | 1.2 kg |
Shipping (inner) case height | 13.7 cm |
Shipping (inner) case length | 21.2 cm |
Shipping (inner) case width | 16.5 cm |
Export Control Classification Number (ECCN) | EAR99 |
Products per shipping (inner) case | 6 pc(s) |
Products per master (outer) case | 18 pc(s) |
Master (outer) case width | 226 mm |
Master (outer) case length | 445 mm |
Master (outer) case height | 190 mm |
Master (outer) case gross weight | 4.03 kg |
