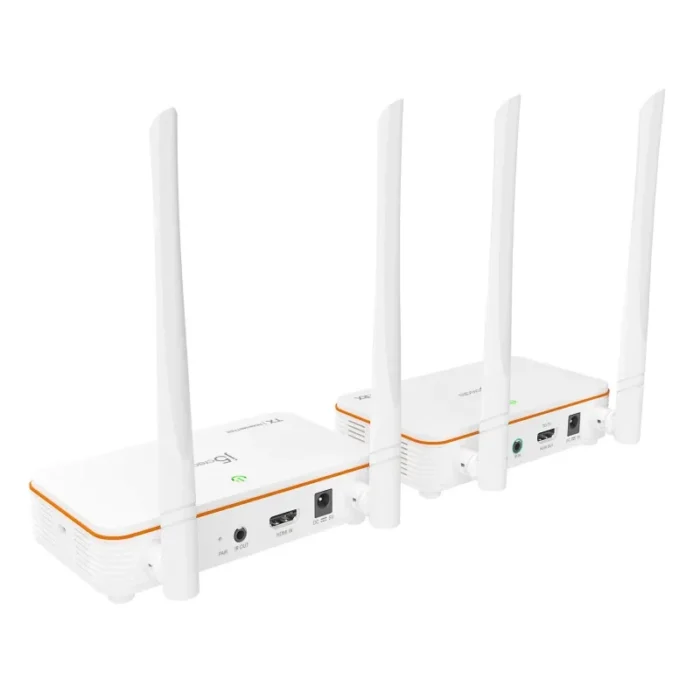

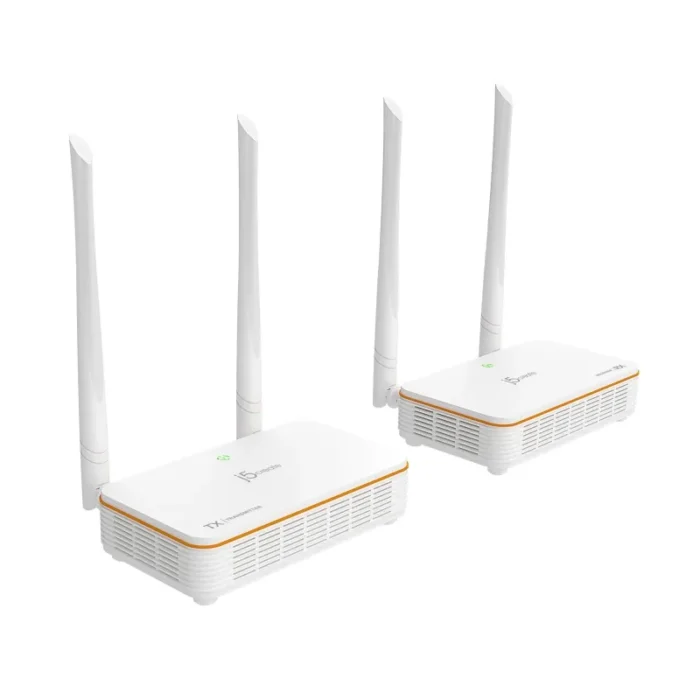

j5create JVAW53 Wireless Display HDMI™ Extender – EU/UK, White
- Wirelessly stream from a distant device without the hassle of installing cables
- Antenna 5 dB, AC 2 x 2 supports up to 200 ft (60m) wireless range
- Transmit HDMI™ audio and video signal with ultra-low latency (less than 0.06s/60ms)
- 5 GHz wireless technology ensures a stable connection for a smooth streaming experience
- Built-in infrared signal lets you control video sources with the original remote via included IR extender cable
- Compliant with HDMI™ 1.3, HDCP 1.2 and DVI 1.0
- Compatible with all HDMI™ enabled devices including game consoles, set-top boxes, and more
- Easily create a wireless conference room and/or a wireless media environment
Enjoy your favorite videos in HD anywhere you wish without costly cable installation and clutter with this HDMI™ extender kit. It extends audio and video signals up to 200 ft/60m with nearly zero delays (less than 0.06s/60ms), offering the ultimate flexibility when it comes to placing your source device and display wherever you prefer.
Compliant with HDMI™ 1.3, HDCP 1.2 and DVI 1.0, the extender supports up to 1080p60 video resolution, stereo digital audio and is compatible with all HDMI™ enabled devices including DVD/ Blu-ray™ players, laptops, game consoles, and more. With its built-in infrared signal, the IR extender cable (included) gives you the ability to control the source device at the display’s location with its original remote (play, pause, fast forward, etc.).
| Features |
| Windows operating systems supported |
Yes |
| Product colour |
White |
| Supported video modes |
480p, 720p, 1080p |
| HDCP |
Yes |
| HDCP version |
1.2 |
| Security algorithms |
128-bit AES, 256-bit AES |
| Daisy chain |
No |
| Resolution |
1920 x 1080 pixels |
| Impedance |
100 Ω |
| Frame rate |
60 fps |
| Supported graphics resolutions |
640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Material |
Plastic |
| Plug and Play |
Yes |
| LED indicators |
Power, Ready |
| Maximum refresh rate |
60 Hz |
| Maximum transfer distance |
60 m |
| Cable types supported |
HDMI |
| Maximum resolution |
1920 x 1080 pixels |
| Type |
AV transmitter & transceiver |
| Ports & interfaces |
| USB version |
2.0 |
| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| HDMI version |
1.3 |
| Ethernet LAN |
No |
| Bluetooth |
No |
| WLAN data transfer rate (first band) |
866 Mbit/s |
| Wi-Fi |
No |
| Connectivity technology |
Wireless |
| Power |
| Current |
0.13 A |
| External power adapter |
Yes |
| USB powered |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| Power consumption (max) |
6.5 W |
| Operating voltage |
5 V |
| Power source type |
DC |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
40 – 70 °C |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage relative humidity (H-H) |
20 – 80% |
| Weight & dimensions |
| Weight |
150.5 g |
| Height |
33.5 mm |
| Depth |
76 mm |
| Width |
135 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
909 g |
| Package length |
23.7 cm |
| Package height |
94 mm |
| Package depth |
237 mm |
| Package width |
123 mm |
| Quantity per pack |
2 pc(s) |
| Packaging content |
| Packaging content |

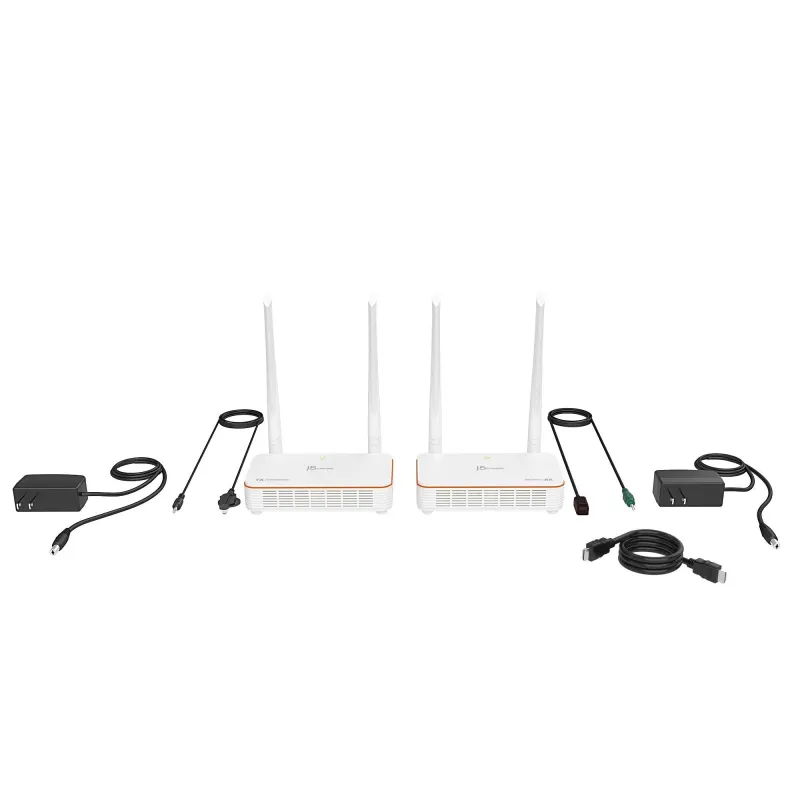

1 x JVAW53TX HDMI™ Transmitter, 1 x JVAW53RX HDMI™ Receiver, 1 x IR blaster cable, 1 x IR receiver cable, 2 x 5V DC/2A adapter, 1 x HDMI™ cable, 1 x Quick Installation Guide (QIG) |
| IR blaster included |
Yes |
| IR receiver included |
Yes |
| Manual |
Yes |
| Quick start guide |
Yes |
| Cables included |
HDMI, IR |
| AC adapter included |
Yes |
| Technical details |
| Warranty period |
2 year(s) |
| Wireless technology |
802.11ac |
| Country of origin |
Taiwan |
| Wireless connection |
Yes |
| Logistics data |
| Master (outer) case GTIN (EAN/UPC) |
24712795085468 |
| Products per master (outer) case |
2 pc(s) |
| Master (outer) case gross weight |
2.2 kg |
| Master (outer) case height |
155 mm |
| Master (outer) case length |
275 mm |
| Master (outer) case width |
207 mm |
| Export Control Classification Number (ECCN) |
EAR99 |
| Minimum order quantity |
2 pc(s) |
