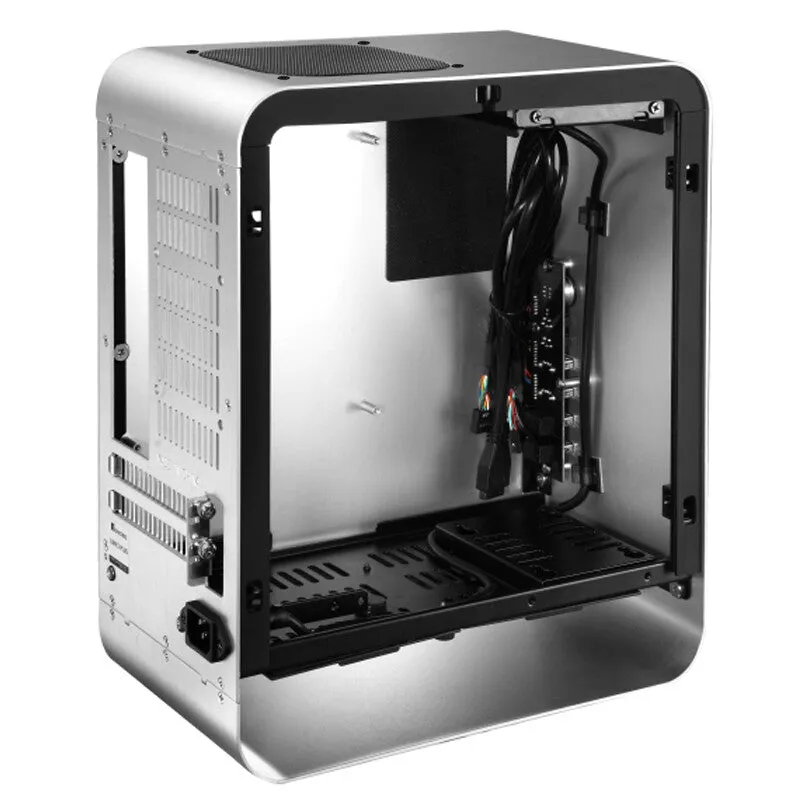

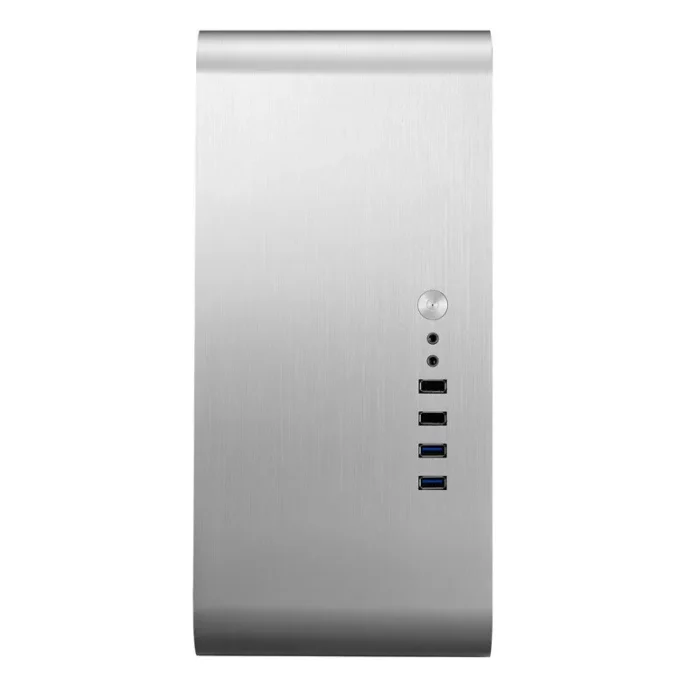

Jonsbo UMX1-PLUS Silver
- PC
- ITX
- Supported HDD sizes: 2.5,3.5″
- Number of 2.5″ bays: 2 Number of 3.5″ bays: 1
- Side window Tempered glass panel(s)
- Aluminium
- Silver
As an upgraded model of UMX1, UMX1 PLUS brings along long-awaited updates for users. While maintaining the original size and classic appearance, it supports standard ATX power supply (PSII) and dual slots display card with no longer than 270MM, thus enthusiasts can build a powerful mini PC without burden. Besides, the new completely transparent acrylic side panel provides you a wide angle to see the hardware.
UMX1 PLUS supports standard ATX power supply (PSII), dual slots display card with no longer than 270MM and CPU cooler with no higher than 130MM, building a powerful mini PC is no longer a luxury. (A semi-modular power supply within 150MM + customized wires will make a perfect cable management)
| Design | |
|---|---|
| Maximum graphics card length | 27 cm |
| Maximum CPU cooler height | 13 cm |
| On/off button | Yes |
| Tempered glass panel(s) | Yes |
| Side window | Yes |
| Number of 2.5″ bays | 2 |
| Number of 3.5″ bays | 1 |
| Supported motherboard form factors | ITX |
| Product colour | Silver |
| Material | Aluminium |
| Type | PC |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Cooling | |
|---|---|
| Top fans installed | 1x 120 mm |
| Rear fans diameters supported | 80 mm |
| Number of rear fans supported (max) | 1 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Height | 345 mm |
| Depth | 300 mm |
| Width | 160 mm |
