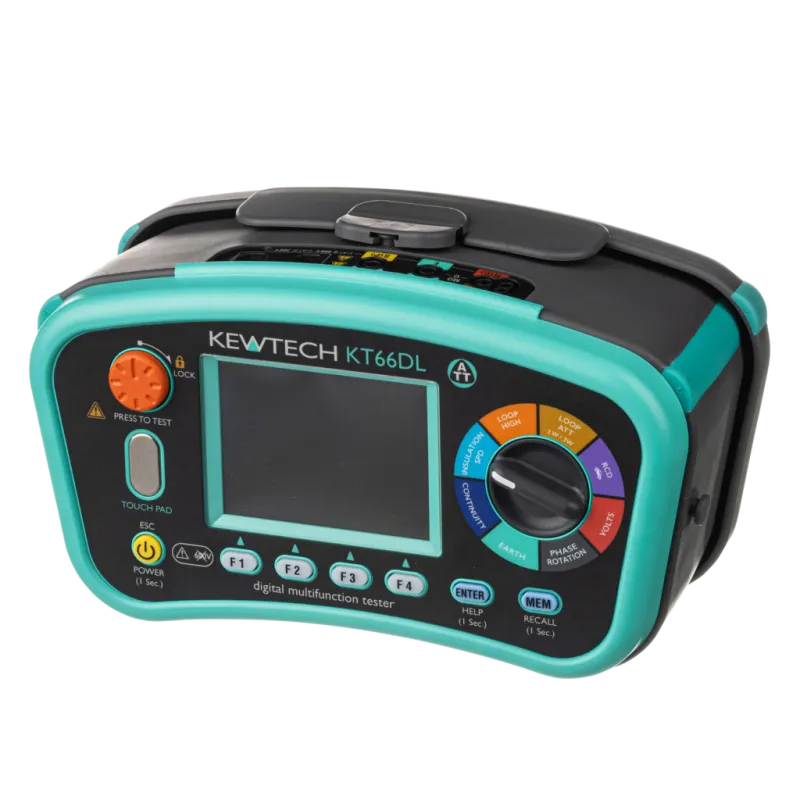

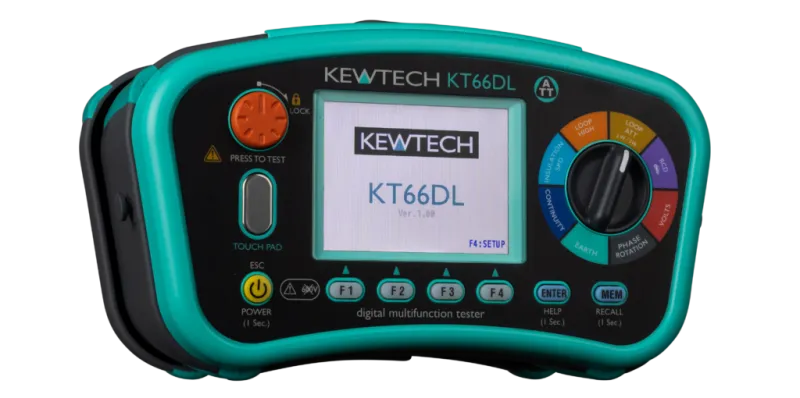

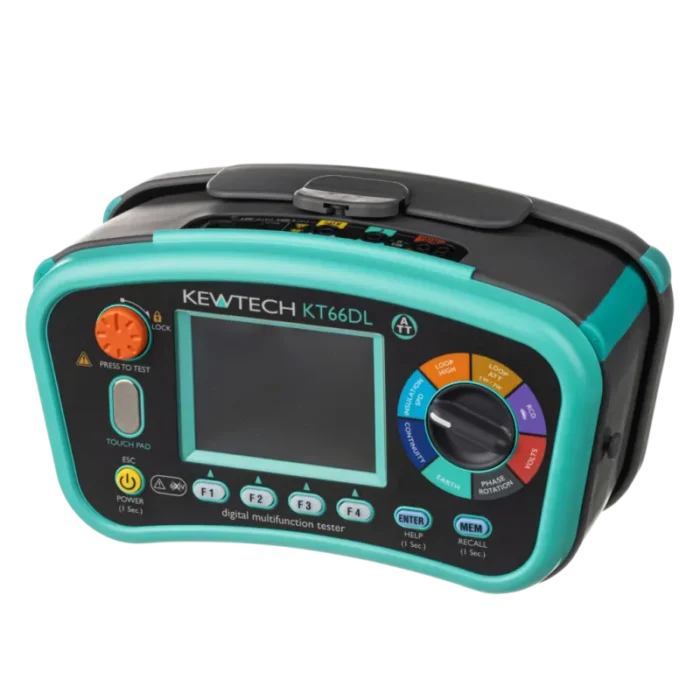

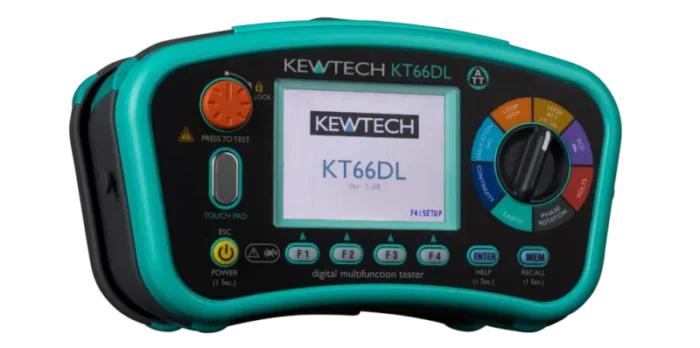

Kewtech KT66DL 12-in-1 Multifunction Tester
The most comprehensive multifunction tester on the market complete with 3 & 2 wire low current loop options and EV testing facilities.
- Extra-large colour dot matrix screen display
- EVSE testing (Type B, EV & 6mA)
- 3 & 2 wire low current loop test options
Main Features:
- Two high current loop options: 25 A 0.001 Ohm resolution & 6 A 0.01 Ohm resolution
- Two low current loop options: 3 wire & 2 wire
- 55V loop test capability – suitable for 110V CTE systems
- EVSE loop option
- RCD – Tests Type AC, ACS, A, AS, F, B, BS & EV
- EVSE 6mA DC ramp and tripping time test
- UC – contact voltage test
- Simultaneous display of L-PE, L-N, N-PE voltage (TRMS)
- True RMS Voltage measurements 2-600V, mains frequency
- Insulation test: 4 test voltages, resistance bar graph & DAR / PI functionality
- Two continuity tests 200 mA & 15 mA
- Dual display of PFC / PSC with a PFC range of 50KA
- SPD testing with both DC & AC breakdown voltage displayed, 1000V range
- Earth resistance 3 & 2 wire options
- Phase rotation
- PAT function including download
- Advanced memory
