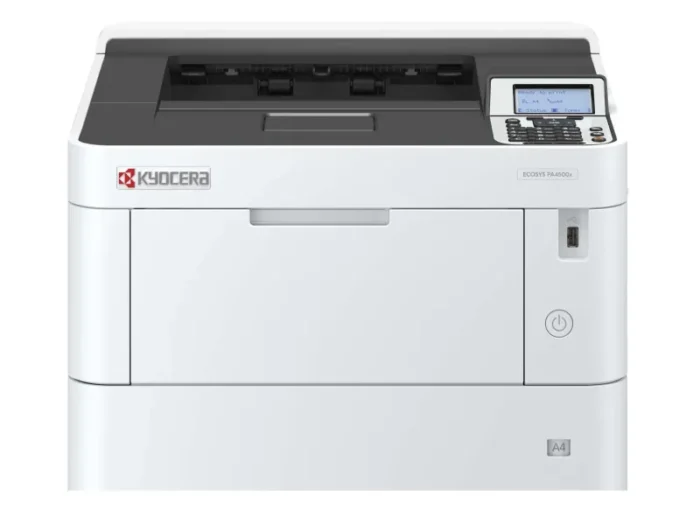

KYOCERA ECOSYS PA4500x 1200 x 1200 DPI A4
- Up to 6 ways of paper input for max. 2,600 sheet capacity
- Strenghen affinity with Microsoft Universal Print
- Optional SSD hard disk with Data Security Kit
- Environmentally friendly: long-life components, low energy consumption
The ECOSYS PA4500x is a powerful printer embedded with high-level security features. The rapid speed of up to 45 pages per minute contributes to the enhanced productivity of smaller workgroups. Thanks to long-life components and low energy consumption, leaves a smaller environmental footprint.
| Printing |
| Time to first page (black, normal) |
5.3 s |
| Warm-up time |
16 s |
| Duplex print speed (black, normal quality, A4/US Letter) |
22.5 ppm |
| Print speed (black, normal quality, A4/US Letter) |
45 ppm |
| Print resolution black |
1200 x 1200 DPI |
| Maximum resolution |
1200 x 1200 DPI |
| Duplex printing mode |
Auto |
| Duplex printing |
Yes |
| Print technology |
Laser |
| Colour |
No |
| Features |
| Replacement cartridges |
TK-3400 |
| Number of printer fonts |
93 |
| Printer fonts |
Barcode, Bitmap, PCL |
| Page description languages |
Epson LQ, IBM ProPrinter, JPEG, OpenXPS, PCL 5e, PCL 6, PCL XL, PCLm, PDF, PWG, PostScript 3, TIFF, URF, XPS |
| Number of print cartridges |
1 |
| Printing colours |
Black |
| Recommended duty cycle |
5000 – 20000 pages per month |
| Maximum duty cycle |
150000 pages per month |
| Input & output capacity |
| Maximum input capacity |
2600 sheets |
| Maximum number of input trays |
5 |
| Multi-Purpose tray input capacity |
100 sheets |
| Multi-Purpose tray |
Yes |
| Paper input type |
Cassette, Paper tray |
| Paper tray 1 input capacity |
500 sheets |
| Total output capacity |
250 sheets |
| Total input capacity |
500 sheets |
| Total number of input trays |
1 |
| Paper handling |
| Duplex media weight |
60 – 120 g/m² |
| Multi-Purpose Tray media weight |
60 – 220 g/m² |
| Paper tray media weight |
60 – 120 g/m² |
| Custom media length |
210 – 356 mm |
| Custom media width |
140 – 216 mm |
| Non-ISO print media sizes |
Legal, Letter |
| ISO B-series sizes (B0…B9) |
B5 |
| ISO A-series sizes (A0…A9) |
A4, A5 |
| Multi-purpose tray media types |
Legal, Letter |
| Paper tray media types |
Plain paper |
| Maximum print size |
216 x 356 mm |
| Maximum ISO A-series paper size |
A4 |
| Ports & interfaces |
| Optional connectivity |
Ethernet, Parallel, Wireless LAN |
| USB connector |
USB Type-A / USB Type-B |
| USB 2.0 ports quantity |
2 |
| USB port |
Yes |
| Direct printing |
Yes |
| Standard interfaces |
RJ-45, USB 2.0 |
| Network |
| Mobile printing technologies |
Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
| Security algorithms |
HTTPS, IPPS, IPSec, SNMPv3 |
| Bluetooth |
No |
| Near Field Communication (NFC) |
No |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Network ready |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Performance |
| Sound power level (standby) |
30 dB |
| Sound pressure level (printing) |
54 dB |
| Processor cores |
2 |
| Processor frequency |
1400 MHz |
| Processor model |
Cortex-A53 |
| Processor family |
ARM Cortex |
| Built-in processor |
Yes |
| Compatible memory cards |
SD, SDHC |
| Maximum internal memory |
2500 MB |
| Internal memory |
512 MB |
| Design |
| Certification |
GS, TÜV, CE |
| Control type |
Buttons |
| Display number of lines |
5 lines |
| Touchscreen |
No |
| Colour display |
No |
| Display |
LCD |
| Built-in display |
Yes |
| Product colour |
White |
| Market positioning |
Business |
| General |
| Product family |
ECOSYS |
| Power |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
220 – 240 V |
| Power consumption (PowerSave) |
0.5 W |
| Power consumption (standby) |
8.4 W |
| Power consumption (printing) |
605.5 W |
| System requirements |
| Other operating systems supported |
ChromeOS |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported |
Yes |
| Sustainability |
| Sustainability certificates |
Blue Angel, ENERGY STAR |
| Weight & dimensions |
| Weight |
14.6 kg |
| Height |
308 mm |
| Depth |
416 mm |
| Width |
390 mm |
| Packaging data |
| Package weight |
18.5 kg |
| Package height |
420 mm |
| Package depth |
494 mm |
| Package width |
549 mm |
| Packaging content |
| Cables included |
AC |
| Included cartridge capacity (black) |
6000 pages |
| Cartridge(s) included |
Yes |
