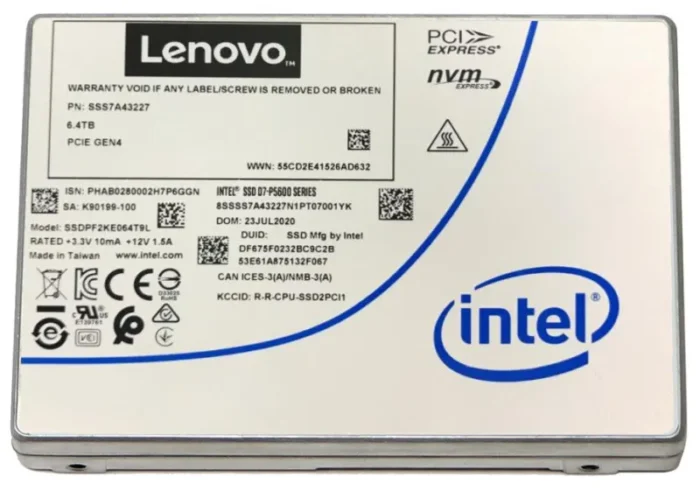

Lenovo 4XB7A17133 internal solid state drive 6.4 TB 2.5″ PCI Express 4.0 NVMe TLC 3D NAND
- 6.4 TB 2.5″ PCI Express 4.0
- 1100000 IOPS
- 390000 IOPS
- TLC 3D NAND NVMe
- Hardware encryption
- Component for: Server/workstation
The ThinkSystem P5620 Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the P5620 SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | FCC Title 47, Part 15B, Class BCA/CSA-CEI/IEC CISPR 22:02EN 55024: 1998EN 55022: 2006EN-60950-1 2nd EditionUL/CSA EN-60950-1 2nd EditionLow Voltage Directive 2006/95/ECC-Tick: AS/NZS3584BSMI: CNS 13438KCC Article 11.1RoHS DIRECTIVE 2011/65/EUWEEE Directive 2002/96/EC |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Sequential latency – write (up to) | 13 µs |
| Sequential latency – read (up to) | 10 µs |
| Random latency – write (up to) | 15 µs |
| Random latency – read (up to) | 75 µs |
| Random write (4KB) | 390000 IOPS |
| Random read (4KB) | 1100000 IOPS |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | TLC 3D NAND |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD form factor | 2.5″ |
| SSD capacity | 6.4 TB |
| Power | |
|---|---|
| Power consumption (write) | 18 W |
| Power consumption (read) | 18 W |
| Weight & dimensions | |
|---|---|
| Weight | 146 g |
| Height | 15 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Operational conditions | |
|---|---|
| Maximum operating altitude | 3048 m |
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Operating relative humidity (H-H) | 5 – 90% |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Endurance rating | 35 PB |
